| Ref | Part Number | Description |
|---|
| AEB |
409012100 |
Female Terminal |
| AEB |
710000402 |
Wire Seal |
| AEB |
710008152 |
Sumitomo Female Connector 2 Cavities |
| BN1 |
710000913 |
Terminal |
| BN2 |
278001392 |
Open Barrel Terminal |
| BP1 |
278001392 |
Open Barrel Terminal |
| Cl |
278002858 |
Female Housing 20 Circuits |
| Cl |
278002860 |
Sealing Cap |
| Cl |
515178018 |
Female Terminal |
| D2 |
409012700 |
Diode |
| D5 |
409012700 |
Diode |
| D6 |
409012700 |
Diode |
| DC1 |
409010300 |
Female Terminal |
| DC2 |
409010300 |
Female Terminal |
| DC3 |
515175231 |
Female Terminal |
| DC3 |
515175658 |
Female Housing, 2 Circuits |
| DC5 |
278000220 |
Male Connector, 2 Circuits |
| DC5 |
278000223 |
Female Terminal |
| DC5 |
278001065 |
Wire Seal |
| DC6 |
278000220 |
Male Connector, 2 Circuits |
| DC6 |
278000223 |
Female Terminal |
| DC6 |
278001065 |
Wire Seal |
| DLC |
710002705 |
Lock |
| DLC |
710002706 |
Female Housing 6 Circuits |
| DLC |
710005438 |
Female Terminal |
| DLC |
710005439 |
Female Terminal |
| DPS |
278002186 |
Wire Seal |
| DPS |
278002187 |
Female Terminal |
| DPS |
710001222 |
Lock |
| DPS |
710001873 |
Terminal This part replaces 710001765. |
| DPS |
710002075 |
Plug |
| DPS |
710003153 |
Seal |
| DPS |
710004989 |
Female Housing |
| DPS |
710005098 |
Lock |
| ECMB |
710001589 |
Female Terminal |
| ECMB |
710001591 |
Cover, 48 positions |
| ECMB |
710001592 |
Plug |
| ECMB |
710001593 |
Plug |
| ECMB |
710001727 |
Female Terminal |
| ECMB |
710001728 |
Terminal |
| ECMB |
710001967 |
Molex Housing, 48 Circuits |
| FP |
278001013 |
Wire Seal |
| FP |
278001014 |
Female Terminal |
| FP |
409209700 |
Female Housing, 4 Circuits |
| FP |
515176621 |
Wire Seal |
| FP |
710001340 |
Female Terminal |
| FRR1 |
515175658 |
Female Housing, 2 Circuits |
| FRR1 |
710003896 |
Female Terminal |
| FT |
278000217 |
Female Housing, 2 Circuits |
| FT |
278000218 |
Wire Seal |
| FT |
409004300 |
Male Terminal |
| FT |
409210100 |
Clip Bracket Connector (edge) |
| HIC |
710001222 |
Lock |
| HIC |
710001225 |
Cap |
| HIC |
710001228 |
Terminal |
| HIC |
710001229 |
Terminal |
| HIC |
710001233 |
Seal |
| HIC |
710001332 |
Seal Wire |
| HIC |
710001928 |
Housing |
| HL |
HI |
LEFT 710007660 Housing 710007660 |
| HL |
LO |
LEFT 515177192 Female Housing, 2 Circuits 515177192 |
| LP |
515175658 |
Female Housing, 2 Circuits |
| LP |
710003896 |
Female Terminal |
| MG1 |
409011300 |
Male Terminal |
| MG1 |
409012300 |
Seal |
| MG1 |
710000402 |
Wire Seal |
| MG1 |
710000835 |
Male Terminal Housing, 6 Circuits |
| MG1EX |
409012100 |
Female Terminal |
| MG1EX |
710000402 |
Wire Seal |
| MG1EX |
710006273 |
Connector |
| MG2 |
409012100 |
Female Terminal |
| MG2 |
409012300 |
Seal |
| MG2 |
710000081 |
Female Housing, 6 Circuits |
| MG2 |
710000402 |
Wire Seal |
| PF1 |
278000999 |
Wire Seal |
| PF1 |
415128501 |
Seal |
| PF1 |
415129856 |
Fuse Box Base Ass´y This part replaces 710000660. |
| PF1 |
515177009 |
Female Terminal |
| PF1 |
515177012 |
Female Terminal |
| PF1 |
710000840 |
Cap |
| PF2 |
278001325 |
Fuse Holder |
| PF2 |
710000113 |
Female Terminal |
| PF2 |
710001613 |
Fuse |
| PF4 |
278001325 |
Fuse Holder |
| PF4 |
710000357 |
Female Terminal |
| PF4 |
710001613 |
Fuse |
| R4 |
710008735 |
Resistor |
| REG |
710000879 |
Female Housing, 3 Circuits |
| REG |
710000882 |
Cap |
| REG |
710001932 |
Seal |
| REG |
710001934 |
Terminal |
| RFID |
710001161 |
Housing |
| RFID |
710001162 |
Lock |
| RFID |
710001163 |
Wire Seal |
| RFID |
710001164 |
Female Terminal |
| RSS |
409011300 |
Male Terminal |
| RSS |
710000402 |
Wire Seal |
| RSS |
710000835 |
Male Terminal Housing, 6 Circuits |
| SS1 |
409010300 |
Female Terminal |
| SS2 |
409010300 |
Female Terminal |
| SW |
CL |
C 710000153 Female Terminal Housing, 3 Circ. 710000153 |
| SW1 |
409010700 |
Female Terminal |
| SW2 |
409010700 |
Female Terminal |
| SW3 |
409010700 |
Female Terminal |
| SW4 |
278000992 |
Open Barrel |
| SWW |
278000223 |
Female Terminal |
| SWW |
278000273 |
Male Housing, 3 Circuits |
| SWW |
278001065 |
Wire Seal |
| TAS |
710001224 |
Terminal |
| TAS |
710001231 |
Housing |
| TAS |
710001233 |
Seal |
| TAS |
710005296 |
Lock 6 Positions |

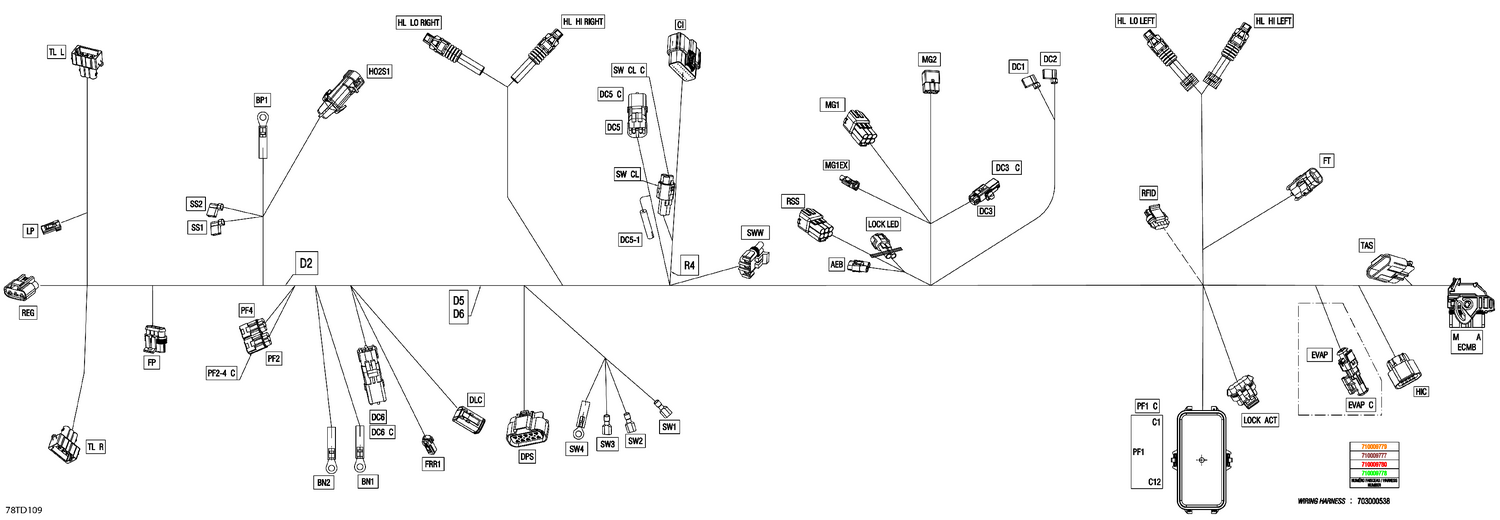

| 200 |
710009780 |
Main Wiring Harness |
