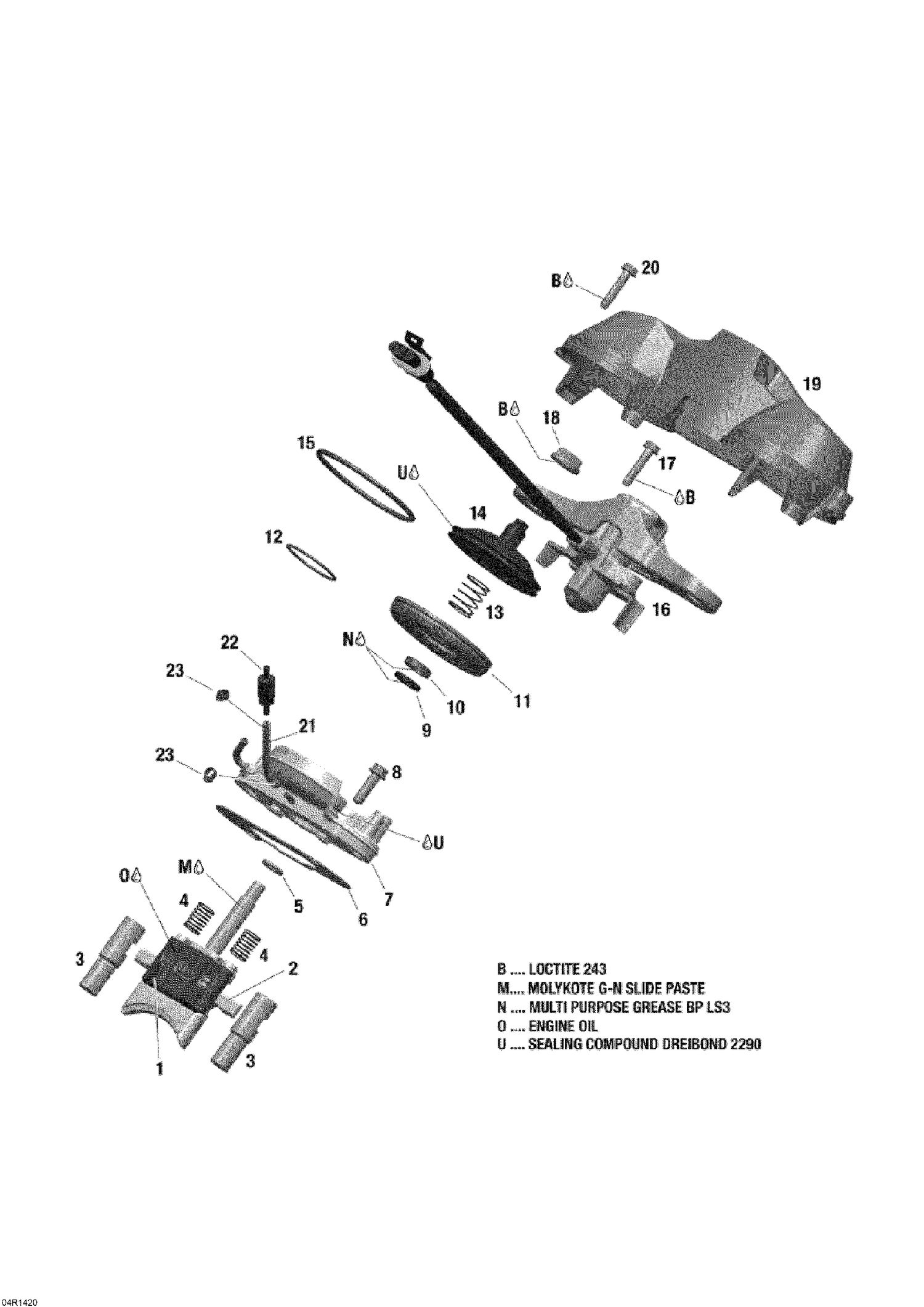

01- RAVE Valve
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10ml |
| M | Not | Available As Spare Part - Molykote G-N, 50g |
| N | Not | Available As Spare Part - Multipurpose Grease BP LS3 |
| O | Not | Available As Spare Part - Engine Oil |
| 1 | 420854980 | Exhaust Valve, Upper |
| 2 | 420854974 | Exhaust Valve, Lower |
| 3 | 420854990 | Exhaust Valve |
| 4 | 420238558 | Spring This part replaces 420238556. |
| 7 | 420854888 | Valve Housing |
| 11 | 420260725 | Bellows |
| 12 | 420838255 | Hose Spring |
| 13 | 420238557 | Spring |
| 14 | 420854442 | Valve Cover |
| 15 | 420939286 | Hose Spring This part replaces 420939285. |
| 16 | 420854089 | Position Sensor With Valve Bar |
| 19 | 420910821 | Rave Cover This part replaces 420910820. |
| 21 | 414413800 | Oil Line |
| 22 | 420956515 | Check Valve Ass’y This part replaces 404160200. |
| 23 | 420851508 | Clamp |
