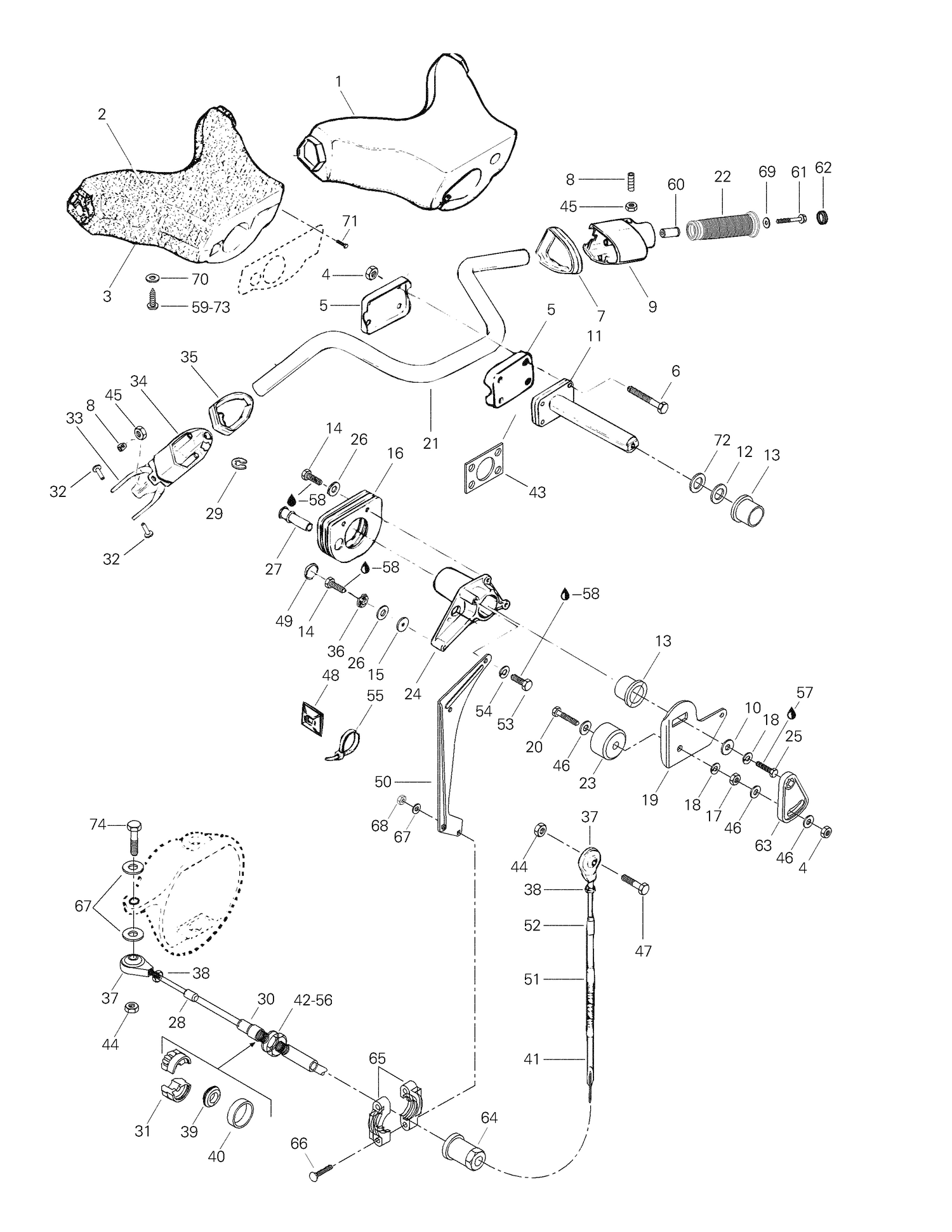

07- Steering System

07- Steering System

Parts (73)

RefPart NumberDescription
1 277000260 Steering Cover
2 277000145 TOP FOAM - Call your local BRP dealership
3 277000146 Bottom Foam
4 232581600 Hex. Elastic Nut M8 This part replaces 212000002.
5 277000142 STEERING CLAMP - Call your local BRP dealership
6 207085560 HEX. SCREW M8 X 55 - Call your local BRP dealership This part replaces 210000018.
7 277000341 LH Adapter
8 216561060 Set Screw M6 x 10
9 277000221 LH HOUSING ASS'Y - Call your local BRP dealership
10 211200001 Washer
11 277000223 Steering Stem
12 293350006 SHIM - Call your local BRP dealership
13 293900002 Bushing
14 207182560 HEX. SCREW M8 X 25 - Call your local BRP dealership This part replaces 210000002.
15 277000100 Plastic Washer
16 277000091 Collar (Black)
17 232081600 Hex. Nut M8 This part replaces 212100001.
18 234181601 Lock Washer 8 mm, Stainless This part replaces 213000001.
19 277000247 Steering Stem Arm
20 207084560 Hex. Screw M8 X 45 This part replaces 215684560.
21 277000305 HANDLE BAR - Call your local BRP dealership
22 295500110 Handle Grip Kit (Black) This part replaces 295500112.
23 277000097 Stopper Bushing
24 277000115400 Steering Support
25 207182560 HEX. SCREW M8 X 25 - Call your local BRP dealership This part replaces 210000002.
26 234082600 Flat Washer 8 mm, Stainless This part replaces 213200011.
27 293720014 Grommet
28 277000038 Small Boot
29 293370002 Circlip 5 mm
30 277000039 LARGE BOOT - Call your local BRP dealership
31 277000168 Half-Ring
32 277000381 PIN - Call your local BRP dealership
33 277000472 Throttle Handle
34 277000222 THROTTLE HANDLE HOUSING - Call your local BRP dealership
35 277000084 Throttle Adapter
36 277000096 Retaining Washer
37 277000153 BALL JOINT - Call your local BRP dealership
38 212100005 Hex. Nut
39 211100009 RUBBER WASHER - Call your local BRP dealership
40 211100010 Retaining Ring
41 204390060 STEERING CABLE ASS'Y - Call your local BRP dealership
42 211200006 FLAT WASHER, STAINLESS - Call your local BRP dealership
43 277000436 Spacer
44 232561600 Hex. Elastic Stop Nut M6 This part replaces 212000001.
45 232160600 Hex. Nut M6 This part replaces 212100003.
46 234081600 Stainless, Flat Washer 8 mm This part replaces 213200002.
47 207063060 Hex. Screw M6 X 30 This part replaces 210000006.
48 293750003 TIE RAP MOUNT - Call your local BRP dealership
49 210000019 Snap Cap
50 277000248 Cable Support
51 277000277 Large Boot
52 277000278 SMALL BOOT - Call your local BRP dealership
53 215681660 Hex. Screw M8 x 16
54 234181601 Lock Washer 8 mm, Stainless This part replaces 213000001.
55 293750002 Tie Wrap 142 mm
56 211100011 Hex. Jam Nut 1/2-20
57 293800005 Loctite 271, 10 ml
58 293800060 Loctite 243, 10 ml This part replaces 293800015.
59 211000021 PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
60 Not Available As Spare Part - Insert Grip
61 243164560 PLASTITE SCREW HEX. M6.81 X 45 - Call your local BRP dealership This part replaces 211000031.
62 277000203 Black, Cap This part replaces 277000205.
63 277000201 Lock Plate
64 277000167 KNOB ADJUSTER - Call your local BRP dealership
65 277001528 SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
66 215266060 Bolt-Carriage M6 x 60
67 234061600 Stainless Flat Washer M6 This part replaces 213200001.
68 232561600 Hex. Elastic Stop Nut M6 This part replaces 212000001.
69 234062600 Flat Washer M6, Stainless This part replaces 213200007.
70 234051600 Flat Washer M5, Stainless This part replaces 213200004.
71 209631360 SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership This part replaces 211000032.
72 211200008 Spring Washer
73 211000037 Phillips Screw 10-14 X 7/8”
