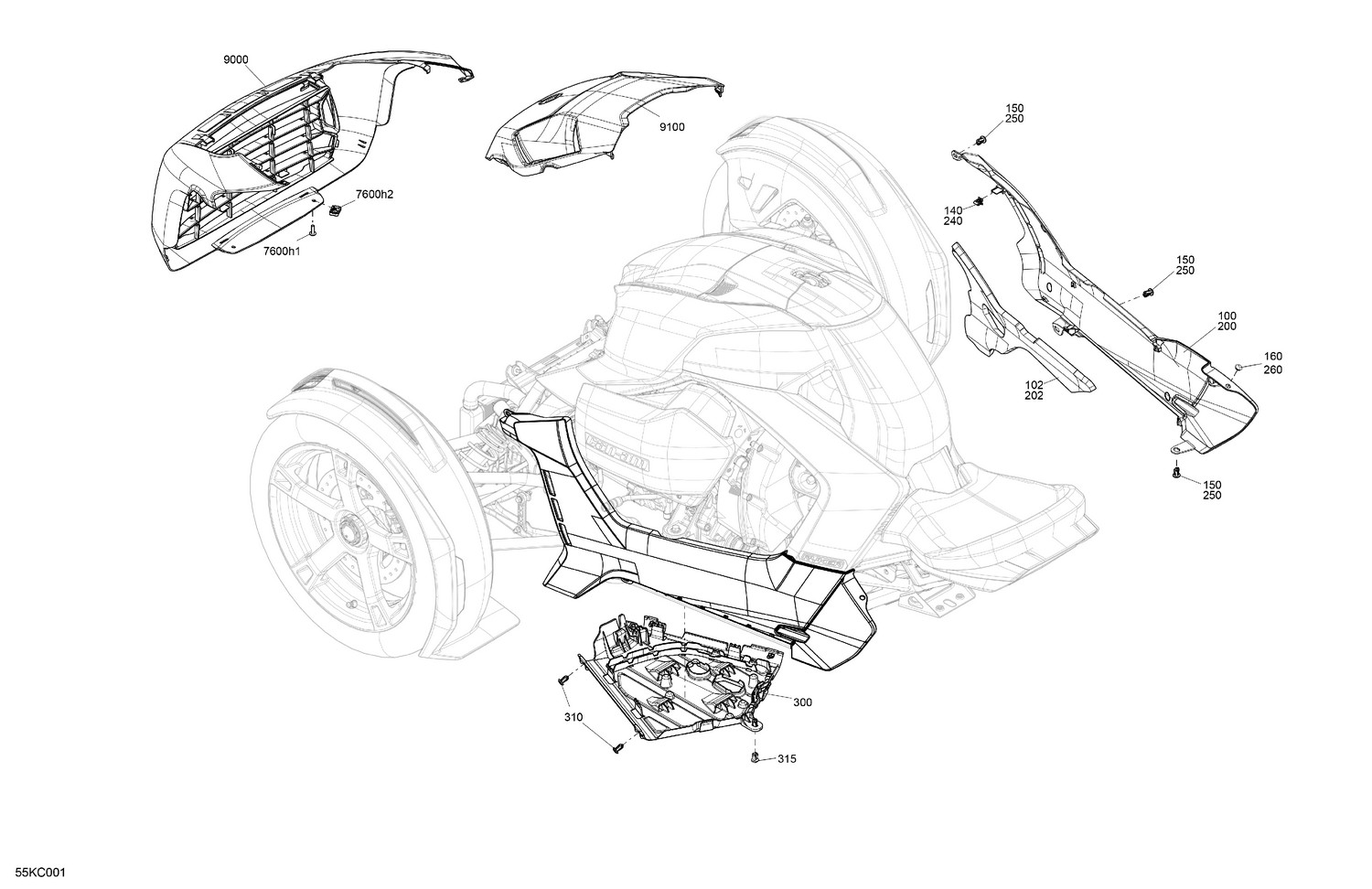

07- Body - Lower Section
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 219800524 | LH Rocker Panel Kit |
| 102 | 705013940 | LH Rocker Acoustic Foam |
| 140 | 517302785 | Edge Clip |
| 150 | 293150230 | Tuflok Plastic Rivet |
| 160 | 293730060 | Black, Dart 10 mm |
| 200 | 219800525 | RH Rocker Panel Kit |
| 202 | 705013941 | Acoustic Foam |
| 240 | 517302785 | Edge Clip |
| 250 | 293150230 | Tuflok Plastic Rivet |
| 260 | 293730060 | Black, Dart 10 mm |
| 300 | 705012364 | Skid Plate |
| 310 | 293150230 | Tuflok Plastic Rivet |
| 315 | 293150230 | Tuflok Plastic Rivet |
| 7600h1 | 250000722 | Torx Screw M6 X 20 |
| 7600h2 | 250100208 | Panel Nut M6 X 1.0 |
| 9000 | 705010722 | Deep Black, Front Fascia |
