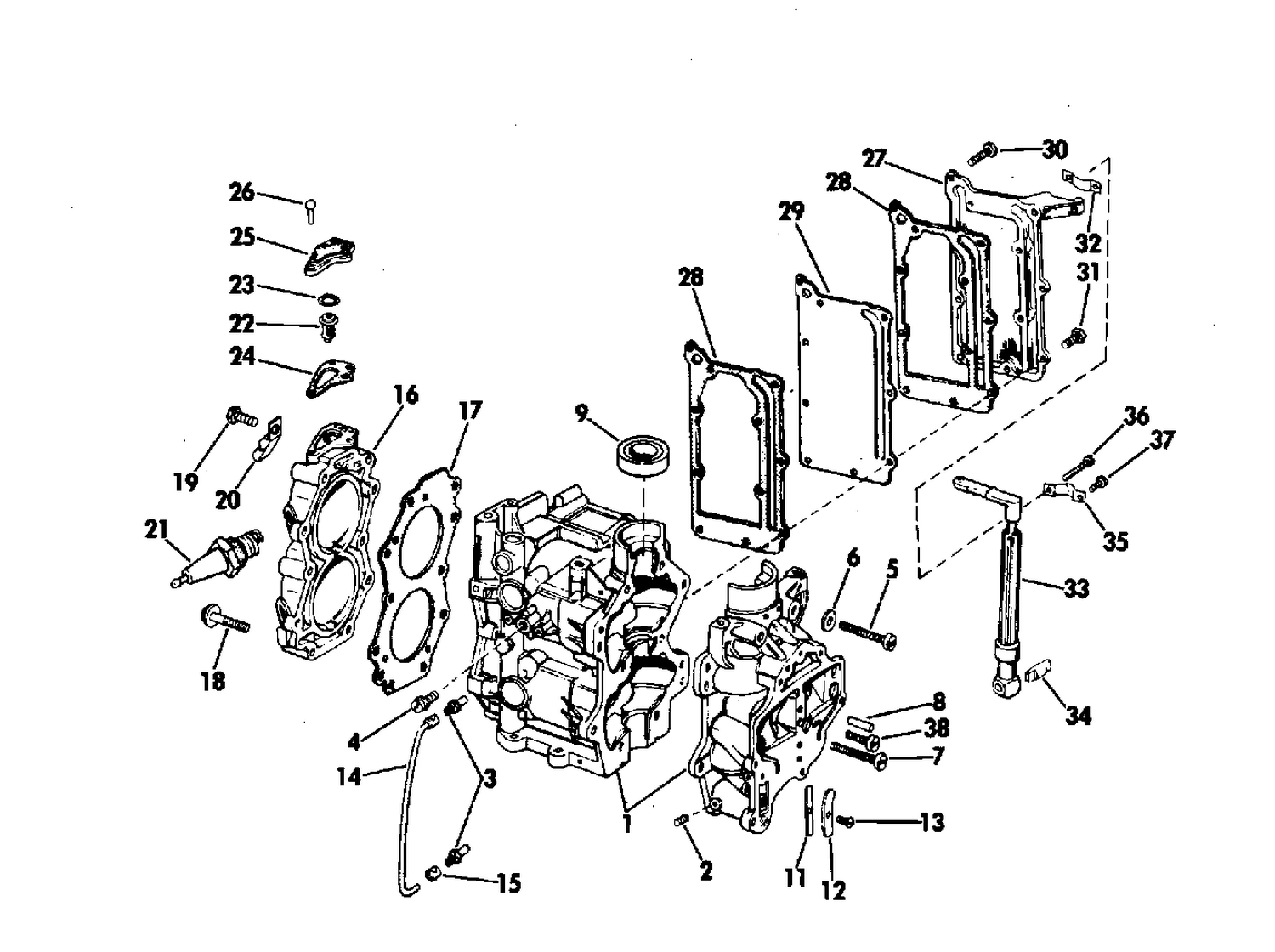

| Ref | Part Number | Description |
|---|
| 1 |
0385080 |
CYLINDER & C' CASE ASSY |
| 5 |
0334220 |
SCREW, CPS bracket This part replaces 0306530. |
| 6 |
0300399 |
WASHER |
| 7 |
0306468 |
SCREW, Armature plate |
| 9 |
0312389 |
OIL SEAL |
| 10 |
0385084 |
LEAF PLATE ASSY |
| 11 |
0203235 |
LEAF VALVE, Oil drain |
| 12 |
0203248 |
PLATE, Drain valve |
| 13 |
0306402 |
SCREW, Drain valve |
| 14 |
0203909 |
HOSE, Oil return This part replaces 0203286. |
| 14 |
0303463 |
HOSE, Oil return |
| 15 |
0301822 |
CLAMP, Return hose |
| 15 |
0303473 |
CLAMP, Hose |
| 16 |
0311212 |
CYLINDER HEAD |
| 17 |
0306204 |
GASKET, Clyinder head |
| 18 |
0308728 |
SCREW |
| 19 |
0306049 |
SCREW |
| 20 |
0304790 |
CLAMP, H t leads |
| 21 |
0384734 |
SPARK PLUG, AC M44C |
| 21 |
0593871 |
SPARK PLUB, Champion j6j |
| 22 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 23 |
0310058 |
GASKET, Thermostat |
| 24 |
0311145 |
GASKET, Cap |
| 25 |
0312714 |
CAP, Thermostat |
| 27 |
0323454 |
EXHAUST COVER, Outer This part replaces 0316691. |
| 28 |
0306201 |
GASKET, Cover |
| 29 |
0306202 |
COVER, Exhaust, inner |
| 30 |
0132346 |
SCREW, Cover |
| 32 |
0303109 |
BEARING CLAMP, INNER |
| 33 |
0311286 |
LEVER, Armature control |
| 34 |
0329197 |
PIN, Control lever This part replaces 0304155. |
| 35 |
0305609 |
BEARING CLAMP |
| 37 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 38 |
0306483 |
SCREW, Clamp to lower cover |
