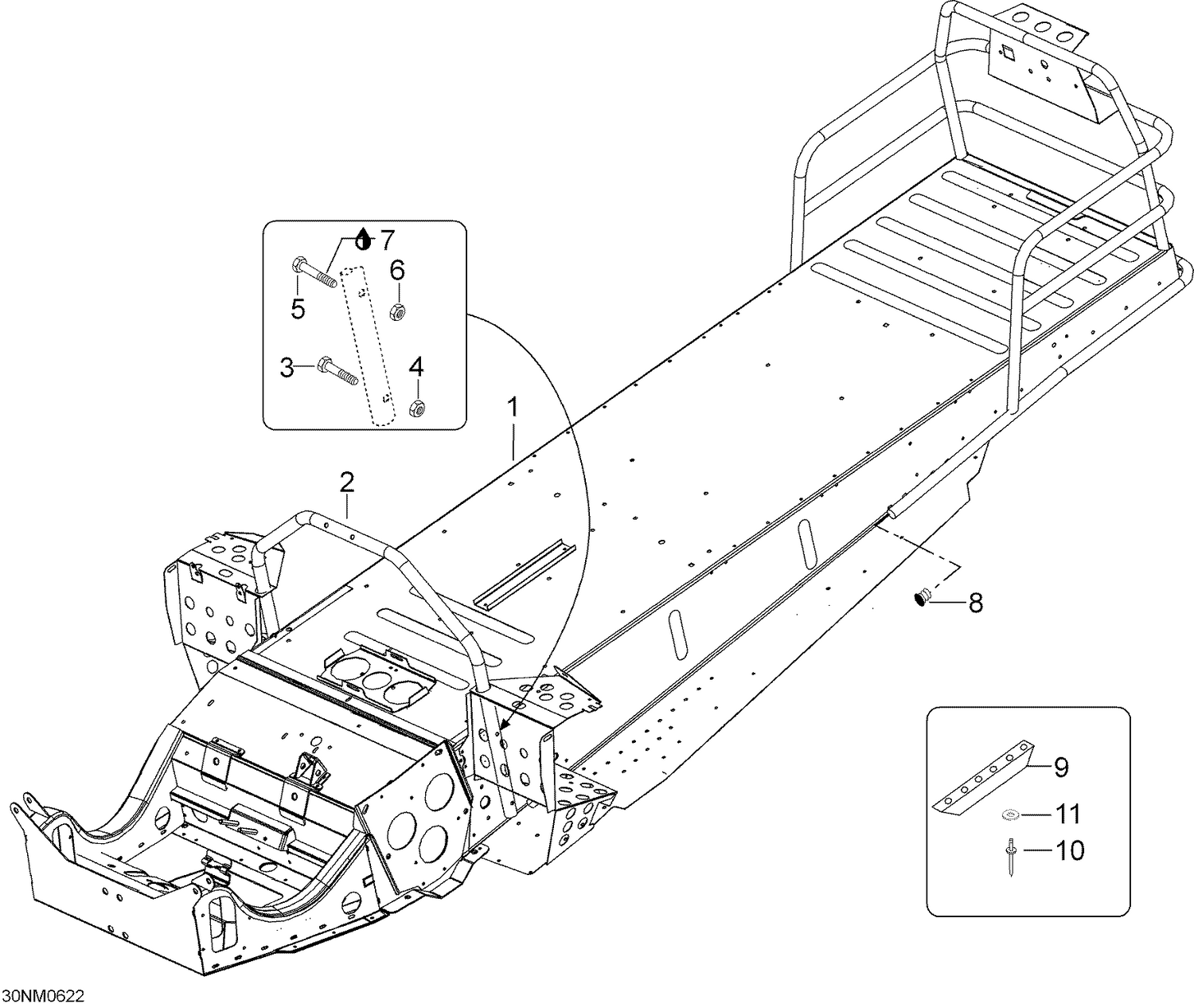

09- Frame
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 605150258 | HANDLE SUPPORT - Call your local BRP dealership |
| 3 | 40032 | Hex. screw M6 x 40 |
| 4 | 33051 | Nut M6 |
| 5 | 40002 | Elastic flanged nut M6 |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 7 | 293800060 | Loctite 243, 10ml |
| 8 | 28136 | Plug |
| 9 | 605349264 | PROTECTOR - Call your local BRP dealership |
| 10 | 36005 | Rivet |
