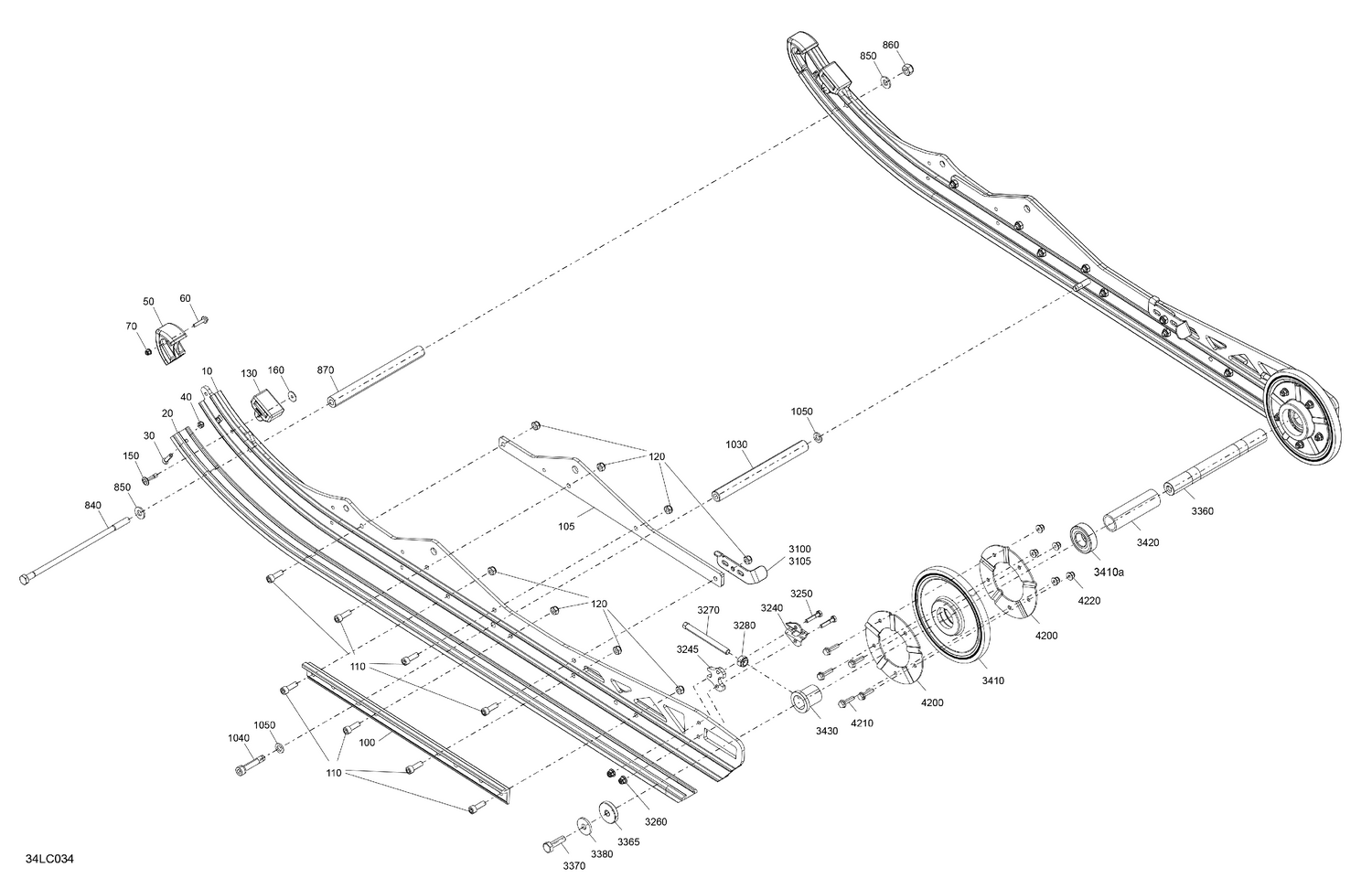

05- Suspension - Rear - Lower Section
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 503196091 | Runner |
| 20 | 503191499 | Black, Slider 146 |
| 30 | 208562531 | Phillips Screw M6 X 25 |
| 40 | 232561434 | Elastic Stop Nut M6 |
| 50 | 503192299 | Runner Protector |
| 60 | 207652544 | Hex. Flange Screw M5 X 25 |
| 70 | 233251434 | Flanged Elastic Nut M5 |
| 100 | 503195884 | Rail Reinforcement |
| 105 | 503196092 | Rail Reinforcement |
| 110 | 205082554 | Socket HD Screw M8 x 25 |
| 120 | 232581414 | Hex. Elastic Stop Nut M8 |
| 130 | 503193504 | Rubber Stopper |
| 150 | 293150224 | Rivet Pop 3/16 |
| 160 | 503191273 | Washer |
| 840 | 503193227 | Bolt M10 X 251MM |
| 850 | 250200138 | Washer |
| 860 | 233601466 | Elastic Locking Nut M10 |
| 870 | 503195400 | Axle Stopper Strap |
| 1030 | 5343471 | Eturemmin akseli |
| 1040 | 205505054 | Socket Screw |
| 1050 | 503192496 | Washer |
| 3100 | 503196383 | Swing Limiter Left |
| 3105 | 503196385 | Swing Limiter Right |
| 3240 | 503192583 | Tensioner |
| 3245 | 503193250 | Spacer |
| 3250 | 207063054 | Hex. Cap Screw M6 X 30 |
| 3260 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 3270 | 230100054 | Hex Screw M10 x 100 |
| 3280 | 233601466 | Elastic Locking Nut M10 |
| 3360 | 503194091 | Rear Shaft |
| 3365 | 503192735 | Rear Axle Washer |
| 3370 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 3380 | 503183300 | Aluslevy M10, karkaistu |
| 3410a | 293350153 | Ball Bearing |
| 3420 | 503156000 | Center Spacer |
| 3430 | 503195512 | Spacer |
| 4200 | 503195776 | Idler Wheel Support Plate |
| 4210 | 207662556 | Hex. Flange Screw M6 X 25 |
