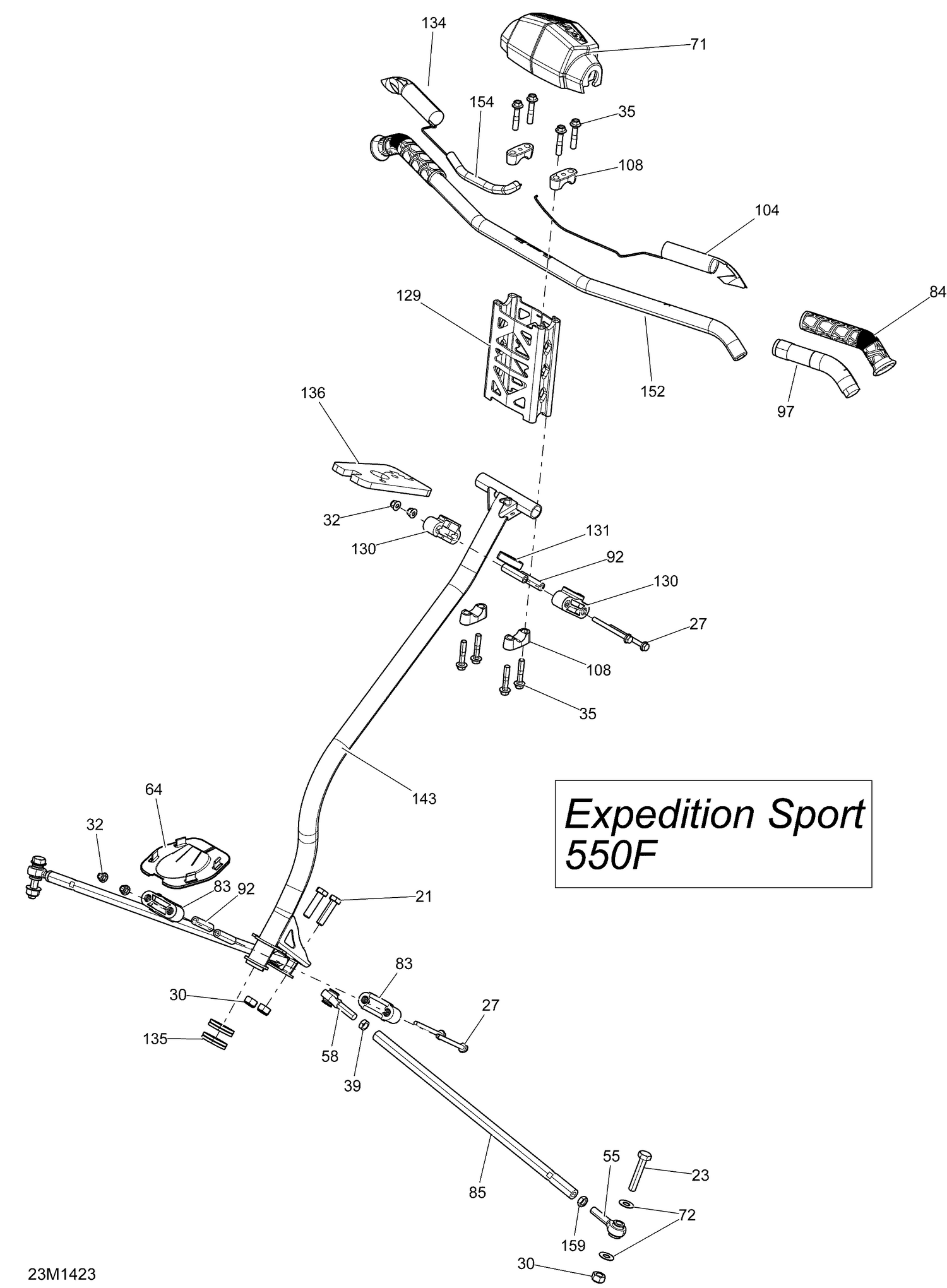

07- Steering
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 21 | 207004034 | Hex. Screw M10 X 1.5 X 40 |
| 23 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 27 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 30 | 233601466 | Elastic Locking Nut M10 |
| 32 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 35 | 250000352 | Hex. Flange Screw M8 X 40 |
| 39 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 55 | 506152019 | RH Threaded Ball Joint |
| 58 | 506152081 | LH Thread Ball Joint |
| 64 | 506152163 | Plate |
| 71 | 506152192 | Steering Pad |
| 72 | 506152582 | Washer |
| 83 | 506152217 | Lower Half-Housing |
| 84 | 506152486 | Grip |
| 85 | 506152498 | Tie-Rod |
| 92 | 506152297 | Housing Bushing |
| 97 | 506152611 | Isolant |
| 104 | 506152578 | Heating Element 20 WATT |
| 108 | 506152751 | Steering Support This part replaces 506152395. |
| 129 | 860200820 | Riser Kit |
| 130 | 506152508 | Upper Half-Housing |
| 131 | 506152509 | Upper Anti-Vibration Gasket |
| 134 | 506152579 | HEATING ELEMENT 20 WATT - Call your local BRP dealership |
| 135 | 506152518 | Lower Vibration Ring |
| 136 | 506152521 | Bushing |
| 143 | 506152963 | Steering Column This part replaces 506152586. |
| 152 | 506152710 | BLACK HANDLE BAR - Call your local BRP dealership |
| 154 | 219704427 | LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
