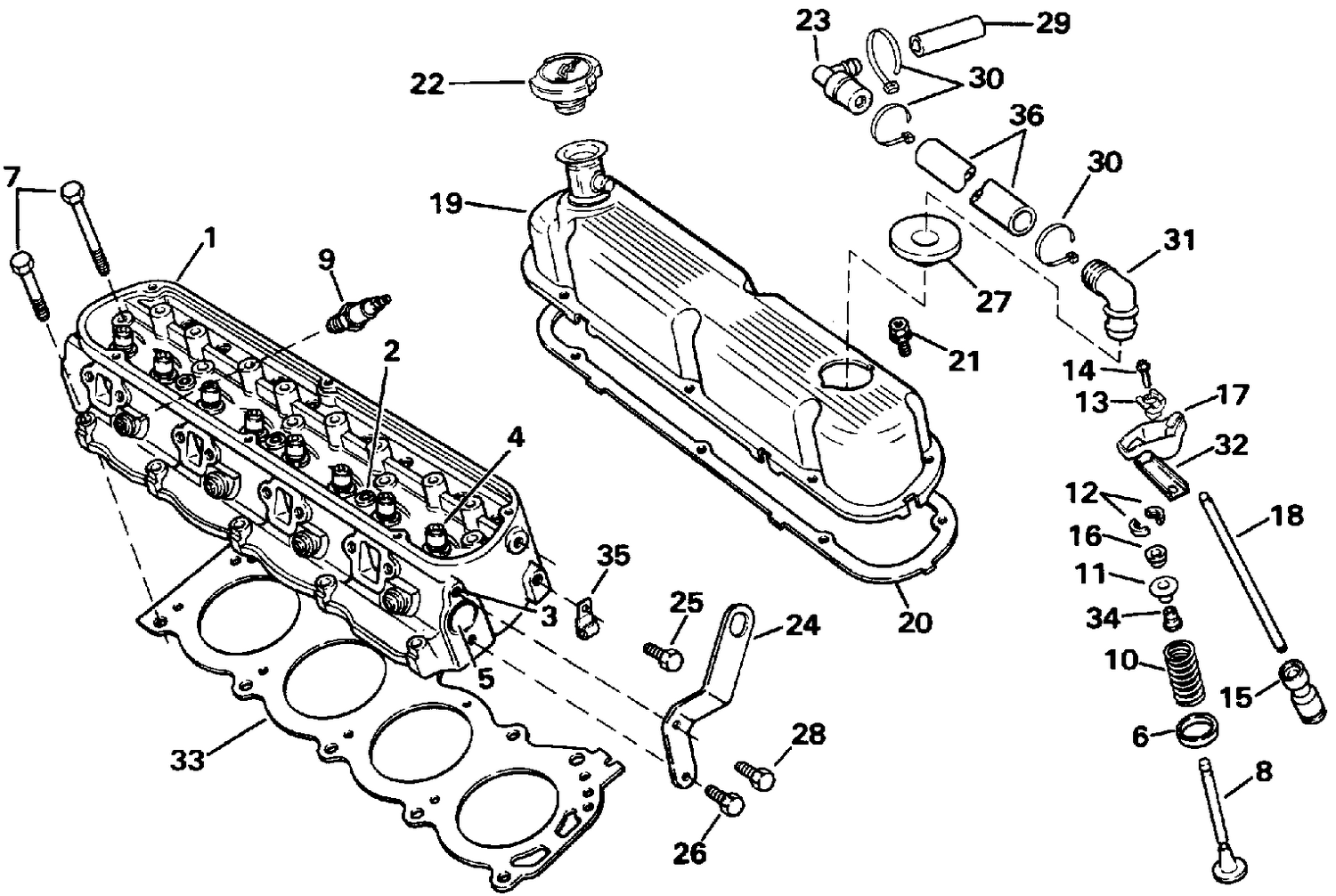

| Ref | Part Number | Description |
|---|
| 1 |
3858868 |
Cylinder Head Ay This part replaces 0987970. |
| 2 |
3853015 |
PLUG, Core hole This part replaces 0914141. |
| 3 |
3853016 |
INSERT, Thermactor hole This part replaces 0914142. |
| 4 |
3853017 |
BUSHING, Valve guide This part replaces 0914143. |
| 5 |
3852650 |
PLUG, Core hole This part replaces 0912932. |
| 6 |
3853776 |
Insert This part replaces 0916469. |
| 7 |
3852769 |
BOLT, Cylinder head, 4 in. This part replaces 0913708. |
| 7 |
3852770 |
BOLT, Cylinder head, 2 1/2 in. This part replaces 0913709. |
| 8 |
3853730 |
VALVE, Intake, standard This part replaces 0916219. |
| 8 |
3853731 |
VALVE, Exhaust, standard This part replaces 0916220. |
| 9 |
3851869 |
Shop Pk Rs9Yc This part replaces 0987672. |
| 10 |
3853777 |
SPRING, Valve, exhaust This part replaces 0916470. |
| 10 |
3853778 |
SPRING, Valve, intake This part replaces 0916471. |
| 11 |
3853766 |
RETAINER, Spring, intake This part replaces 0916431. |
| 11 |
3854303 |
RETAINER, Spring, intake This part replaces 0913752. |
| 12 |
3852672 |
KEY, Valve spring retainer This part replaces 0913163. |
| 13 |
3852671 |
SEAT, Rocker arm This part replaces 0913161. |
| 14 |
3852814 |
BOLT, Rocker arm This part replaces 0913754. |
| 15 |
3853847 |
TAPPET This part replaces 0985316. |
| 16 |
3852813 |
SLEEVE, Retainer, intake This part replaces 0913753. |
| 17 |
3852815 |
ROCKER ARM This part replaces 0913755. |
| 18 |
3852817 |
PUSH ROD, Standard This part replaces 0913757. |
| 19 |
3853906 |
VALVE COVER, Starboard This part replaces 0986097. |
| 19 |
3853907 |
VALVE COVER, Port This part replaces 0986098. |
| 20 |
3852818 |
GASKET, Valve cover This part replaces 0913758. |
| 21 |
3853037 |
SCREW, Valve cover This part replaces 0914167. |
| 22 |
3852707 |
CAP, Oil fill This part replaces 0913469. |
| 23 |
3852820 |
PCV VALVE This part replaces 0913760. |
| 24 |
3852705 |
LIFT BRACKET This part replaces 0913460. |
| 25 |
3853419 |
SCREW, Clamp, front This part replaces 0915043. |
| 26 |
3853557 |
SCREW, Brace to alterntr bracket This part replaces 0915790. |
| 27 |
3852821 |
GROMMET, PCV valve This part replaces 0913761. |
| 28 |
3853154 |
SCREW, Bracket to cylinder head This part replaces 0914349. |
| 29 |
3853584 |
HOSE, Carb. spacer to tee This part replaces 0915908. |
| 30 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 31 |
0311545 |
ELBOW |
| 32 |
3852819 |
GUIDE, Rocker arm This part replaces 0913759. |
| 33 |
3853732 |
GASKET, Cylinder head This part replaces 0916221. |
| 34 |
3852670 |
SEAL, Intake This part replaces 0913151. |
| 34 |
3853771 |
SEAL, Exhaust This part replaces 0916443. |
| 35 |
0316993 |
CLAMP, Batter cable |
| 1000 |
512061220 |
Rear PTO Support |
| 1020 |
250000986 |
Hex. Flanged Screw M8 X 35 |
| 1030 |
250200146 |
Conical Spring Washer M8 |
| 1200 |
512061193 |
Front PTO Support |
| 1210 |
250000986 |
Hex. Flanged Screw M8 X 35 |
| 1220 |
250200146 |
Conical Spring Washer M8 |
| 1300c |
250000767 |
Torx Truss Screw M6 X 12 |
| 1310 |
250001057 |
Hex. Flanged Screw M8 X 40 Scotch.GRIP |
| 1320 |
250200146 |
Conical Spring Washer M8 |
| 1400 |
512061194 |
Rear Support, Mag |
| 1410 |
250001057 |
Hex. Flanged Screw M8 X 40 Scotch.GRIP |
| 1420 |
250200146 |
Conical Spring Washer M8 |
| 1500 |
512061514 |
Rubber Mount |
| 1540 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 1550 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip |
| 1560 |
503183200 |
Yellow, Washer |
| 1570 |
250200008 |
Flat Washer With Teflon 8 mm |
| 1575 |
293300123 |
O Ring |
| 1580 |
205082544 |
Socket Screw M6 X 20, Scotch Grip |
| 1595 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1700 |
512061408 |
Engine Stopper |
| 1710 |
512061497 |
Spacer |
| 1900 |
250000720 |
Torx Screw K50 X 16 |
| 1930 |
512061327 |
Support Solenoid |
| 3600 |
512061492 |
Throttle Cable |
| 3680 |
414274500 |
Circlip |
| 3690 |
414274500 |
Circlip |
| 3710g |
250000671 |
Torx Screw |
| 3710m |
512060961 |
Screw |
| 3710n |
250001059 |
Torx Truss Head Screw W Nylon M5X14 |
| 3720 |
250000742 |
Torx Screw M5 X 14 |
| 3730 |
512060859 |
Upper Housing Ass'y |
| 3740 |
512060860 |
Lower Housing |
| 3750 |
512061266 |
Throttle Ass'y |
| 3760 |
250000991 |
Flanged Screw M5x12 |
