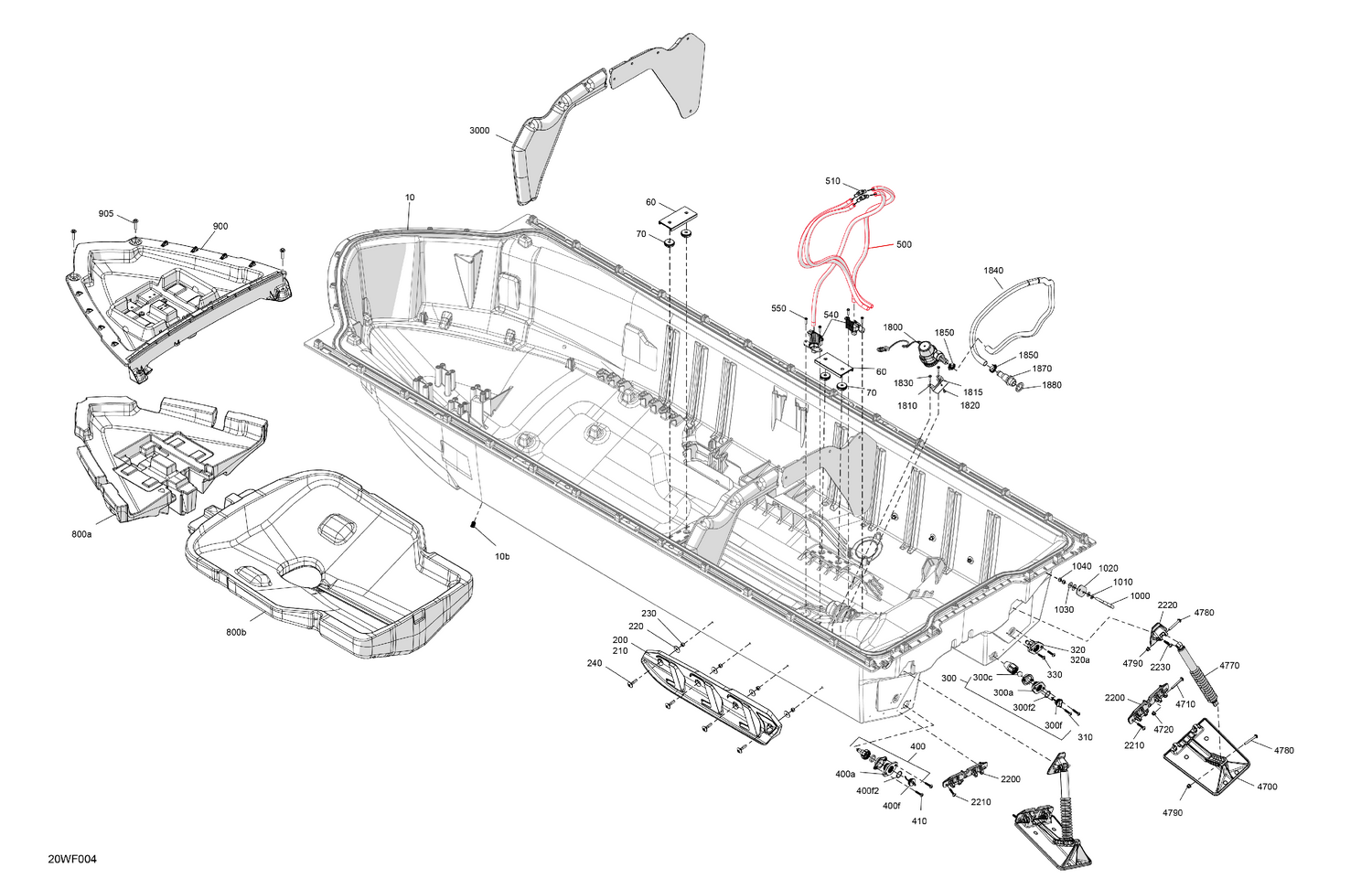

05- HULL - Hull System
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 292002565 | Brass Insert M6X1 |
| 60 | 292002403 | Anchorage Support |
| 70 | 292002521 | Formed Slot Nut |
| 200 | 292001954 | LH Sponson |
| 210 | 292001953 | RH Sponson |
| 220 | 250200175 | Flat Washer 8 mm, Stainless |
| 230 | 232581200 | Hex. Elastic Nut M8 Brass |
| 240 | 250001276 | Torx-Head Screw M8 X 35 |
| 300a | 292002765 | Through Hull Fitting |
| 300c | 293830080 | Floating Ball |
| 300f2 | 293300067 | O-Ring |
| 310 | 250000879 | Plastite Torx Screw M6.81X30 |
| 320a | 292002765 | Through Hull Fitting |
| 330 | 250000879 | Plastite Torx Screw M6.81X30 |
| 400a | 292002765 | Through Hull Fitting |
| 400f2 | 293300067 | O-Ring |
| 410 | 250000879 | Plastite Torx Screw M6.81X30 |
| 500 | 292002962 | Hose 11,6 Mm Id X 800 |
| 510 | 293710152 | Fitting Elbow 90° |
| 540 | 269800956 | Pump Support |
| 550 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 800a | 292002336 | Lower Front Float |
| 800b | 292002337 | Fuel Tank Float |
| 900 | 292002414 | Luggage Compartment Bottom |
| 905 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 1000 | 292000933 | U-Clamp |
| 1010 | 293050001 | Flat Washer M8.5 x 18 |
| 1020 | 292002612 | Retaining Plate |
| 1030 | 279000336 | Flat Washer |
| 1040 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1800 | 278004010 | Bilge Pump |
| 1810 | 269801210 | Bilge Pump Support |
| 1815 | 234052600 | Flat Washer 5 mm, Stainless |
| 1820 | 293150043 | Pop Rivet 3/16" |
| 1830 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 1840 | 292003274 | Hose 19 Mm Id X 1630 |
| 1850 | 293650019 | Tridon Gear Clamp This part replaces 293650290. |
| 1870 | 293710162 | Fitting |
| 1880 | 292001486 | Gasket |
| 2200 | 292002406 | Trim Tab Anchor |
| 2210 | 250000879 | Plastite Torx Screw M6.81X30 |
| 2220 | 292002389 | Shock Absorber Anchorage |
| 2230 | 250000879 | Plastite Torx Screw M6.81X30 |
| 3000 | 292002611 | Acoustic Insulation Panel |
| 4700 | 292002388 | Tab Trim |
| 4710 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 4720 | 233261200 | Nut Flange Elastic M6 |
| 4770 | 269502531 | Shock Absorber Ass'y |
| 4780 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
