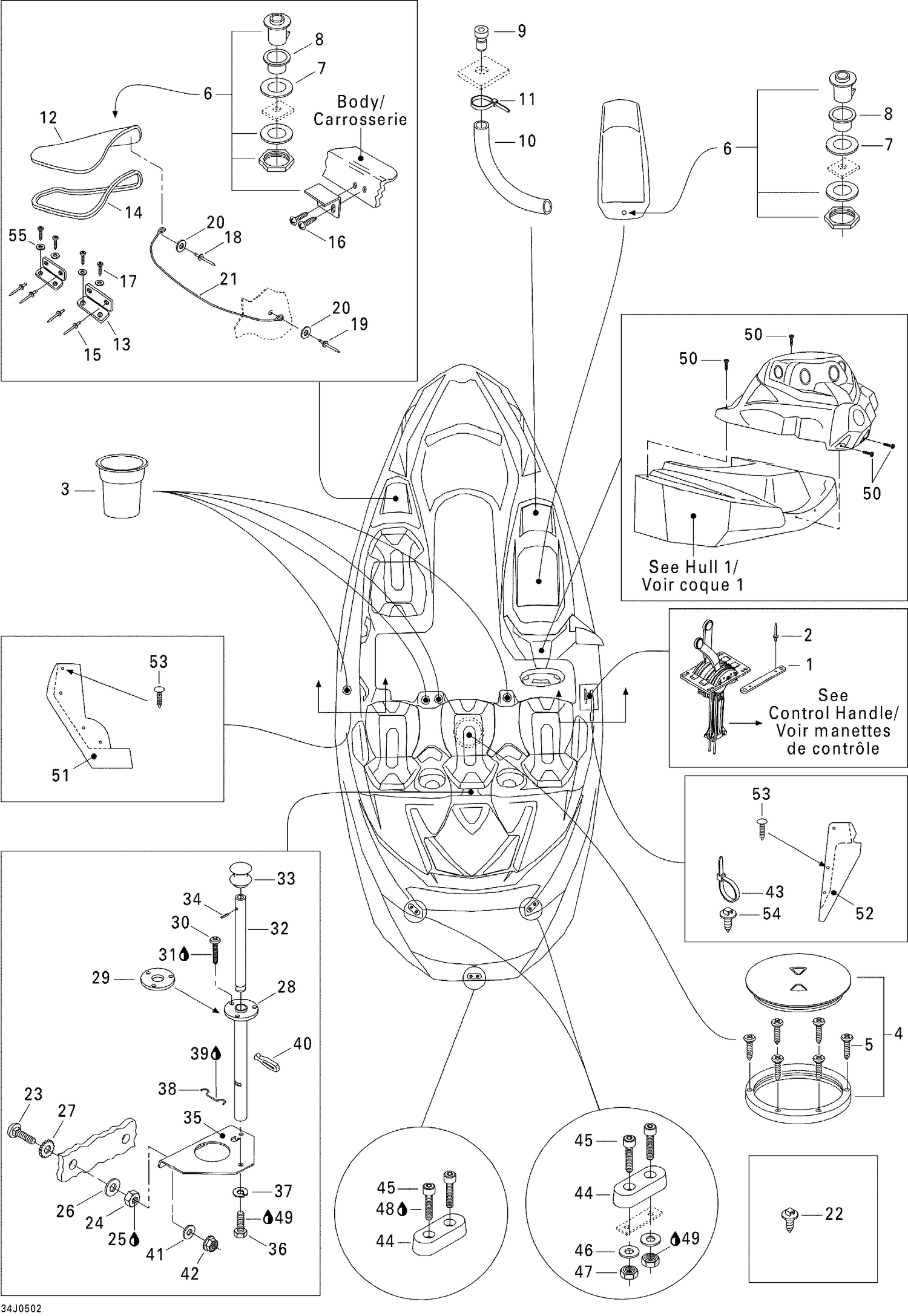

| Ref | Part Number | Description |
|---|
| 1 |
293450061 |
SHIFTER INSERT - Call your local BRP dealership |
| 2 |
293150013 |
Pop Rivet 3/16" |
| 3 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 4 |
202000044 |
Deck Plate 8” |
| 5 |
209941960 |
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership |
| 6 |
204071753 |
LATCHES KIT, 2 SUB-ASSEMBLIES - Call your local BRP dealership |
| 7 |
204620045 |
COMPENSATION GASKET - Call your local BRP dealership |
| 8 |
204620007 |
LATCH INSERT - Call your local BRP dealership |
| 9 |
204071783 |
DRAIN FITTING - Call your local BRP dealership |
| 10 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 11 |
293750001 |
Tie Wrap 94 mm |
| 12 |
204073023 |
STORAGE DOOR, PORT SIDE, YELLOW - Call your local BRP dealership This part replaces 204072065. |
| 13 |
269700031 |
Hinge |
| 14 |
219704368 |
Seal Tray 1000Mm Long |
| 15 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 16 |
209631360 |
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership |
| 17 |
209631360 |
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership |
| 18 |
293150008 |
Pop Rivet 3/16" |
| 19 |
293150039 |
Pop Rivet 3/16" |
| 20 |
234052600 |
Flat Washer 5 mm, Stainless |
| 21 |
204000117 |
RETAINER CABLE - Call your local BRP dealership |
| 22 |
293730040 |
Mount Dart This part replaces 293730018. |
| 23 |
204000130 |
Elevator Bolt |
| 24 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 25 |
293800005 |
Loctite 271, 10 ml |
| 26 |
234062600 |
Flat Washer M6, Stainless |
| 27 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 28 |
204071495 |
FIXED TUBE - Call your local BRP dealership |
| 29 |
293830045 |
RUBBER WASHER - Call your local BRP dealership |
| 30 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 31 |
293800060 |
Loctite 243, 10 ml |
| 32 |
204071624 |
SKI SHAFT - Call your local BRP dealership |
| 33 |
293000004 |
SKI SHAFT CAP - Call your local BRP dealership |
| 34 |
211400004 |
ROLLED PIN M3 X 30 - Call your local BRP dealership |
| 35 |
204071140 |
FIXATION PLATE - Call your local BRP dealership |
| 36 |
207181860 |
Hex. Screw M8 X 18 |
| 37 |
234181601 |
Lock Washer 8 mm, Stainless |
| 38 |
291001205 |
SPRING - Call your local BRP dealership |
| 39 |
293550010 |
Synthetic Grease, 400 G |
| 40 |
570023800 |
Windshield Latch |
| 41 |
234062600 |
Flat Washer M6, Stainless |
| 42 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 43 |
414115200 |
Tie-Rap 180 mm |
| 44 |
204071739 |
Rubber Bumper |
| 45 |
205063060 |
Socket Head Screw M6 X 30 |
| 46 |
234062600 |
Flat Washer M6, Stainless |
| 47 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 48 |
293800060 |
Loctite 243, 10 ml |
| 49 |
293800060 |
Loctite 243, 10 ml |
| 50 |
202000203 |
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership |
| 51 |
Not |
Available As Spare Part - Soundwall Seal, Port Side |
| 52 |
Not |
Available As Spare Part - Soundwall Seal, Starboard |
| 53 |
293730014 |
Black Dart |
| 54 |
293730040 |
Mount Dart This part replaces 293730018. |
