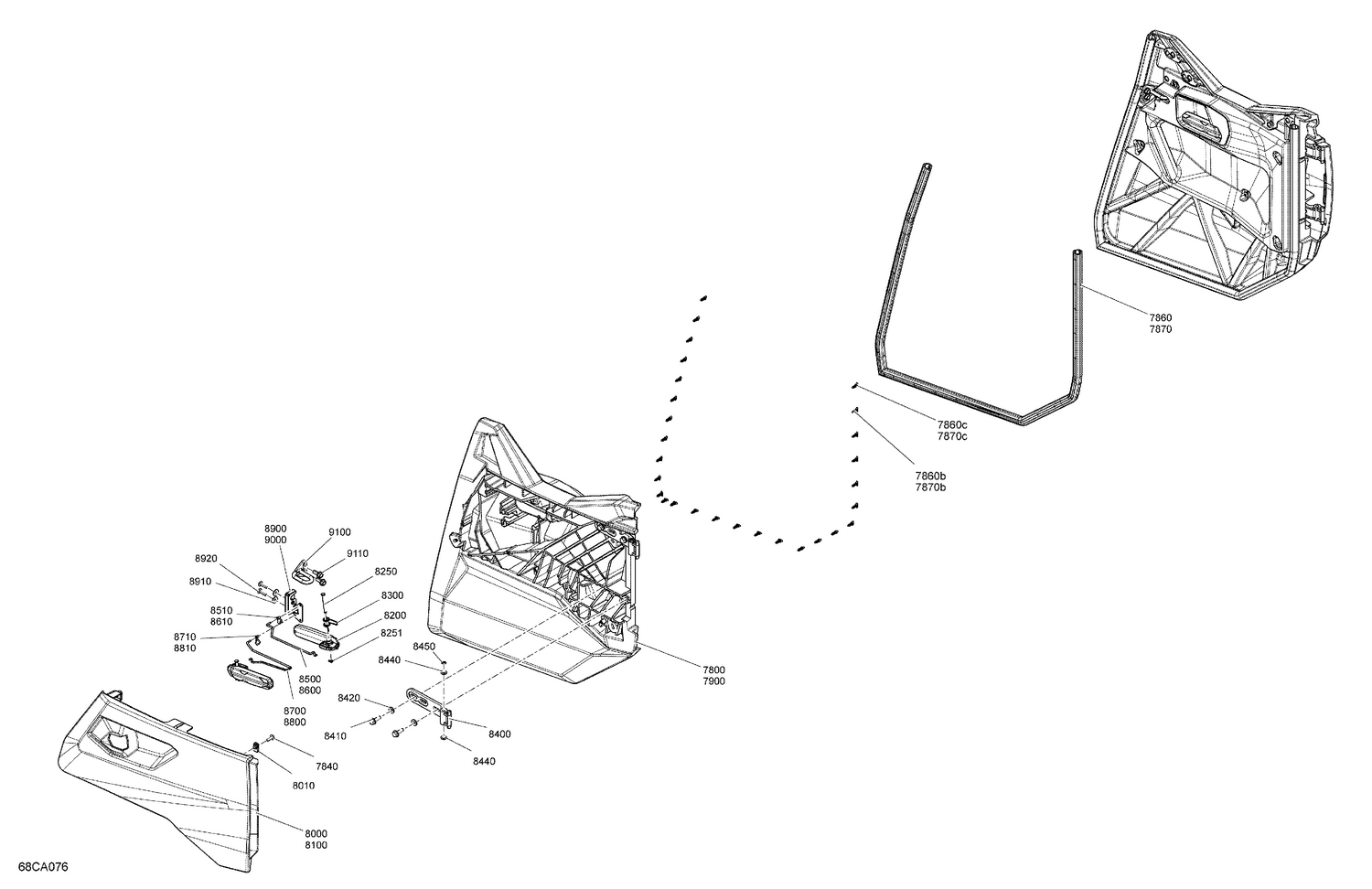

07- Body - Doors
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 7800 | 705013063 | LH Rear Door Panel |
| 7840 | 250000722 | Torx Screw M6 X 20 |
| 7860b | 293730081 | Natural Color, Dart |
| 7860c | 293730082 | Red, Dart |
| 7870b | 293730081 | Natural Color, Dart |
| 7870c | 293730082 | Red, Dart |
| 7900 | 705013064 | RH Rear Door Panel |
| 8000 | 705015618 | Timeless Black, LH Rear Door Panel This part replaces 705015468. |
| 8010 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 8100 | 705015619 | Timeless Black, RH Rear Door Panel This part replaces 705015469. |
| 8200 | 705017152 | Door Handle This part replaces 705012986. |
| 8250 | 705207440 | Handle Axle |
| 8251 | 705601875 | External Retaining Ring |
| 8300 | 705013062 | Handle Spring |
| 8400 | 705013228 | Hinge |
| 8410 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 8420 | 503192494 | Washer |
| 8440 | 234081100 | Flat Washer 8 mm, Nylon |
| 8450 | 705601030 | Circlip |
| 8500 | 705207152 | LH Rear Door Upper Locking Rod |
| 8510 | 708300202 | RH Tie Rod Clip |
| 8600 | 705207153 | RH Rear Door Upper Locking Rod |
| 8610 | 708300202 | RH Tie Rod Clip |
| 8700 | 705207154 | LH Rear Door Lower Locking Rod |
| 8710 | 708300202 | RH Tie Rod Clip |
| 8800 | 705207155 | RH Rear Door Lower Locking Rod |
| 8810 | 708300202 | RH Tie Rod Clip |
| 8900 | 705013758 | LH Latch |
| 8910 | 234062670 | Stainless Steel Flat Washer |
| 8920 | 250000807 | Torx Truss Screw M6 X 25 |
| 9000 | 705013759 | RH Latch |
| 9100 | 705207246 | Stricker Support |
