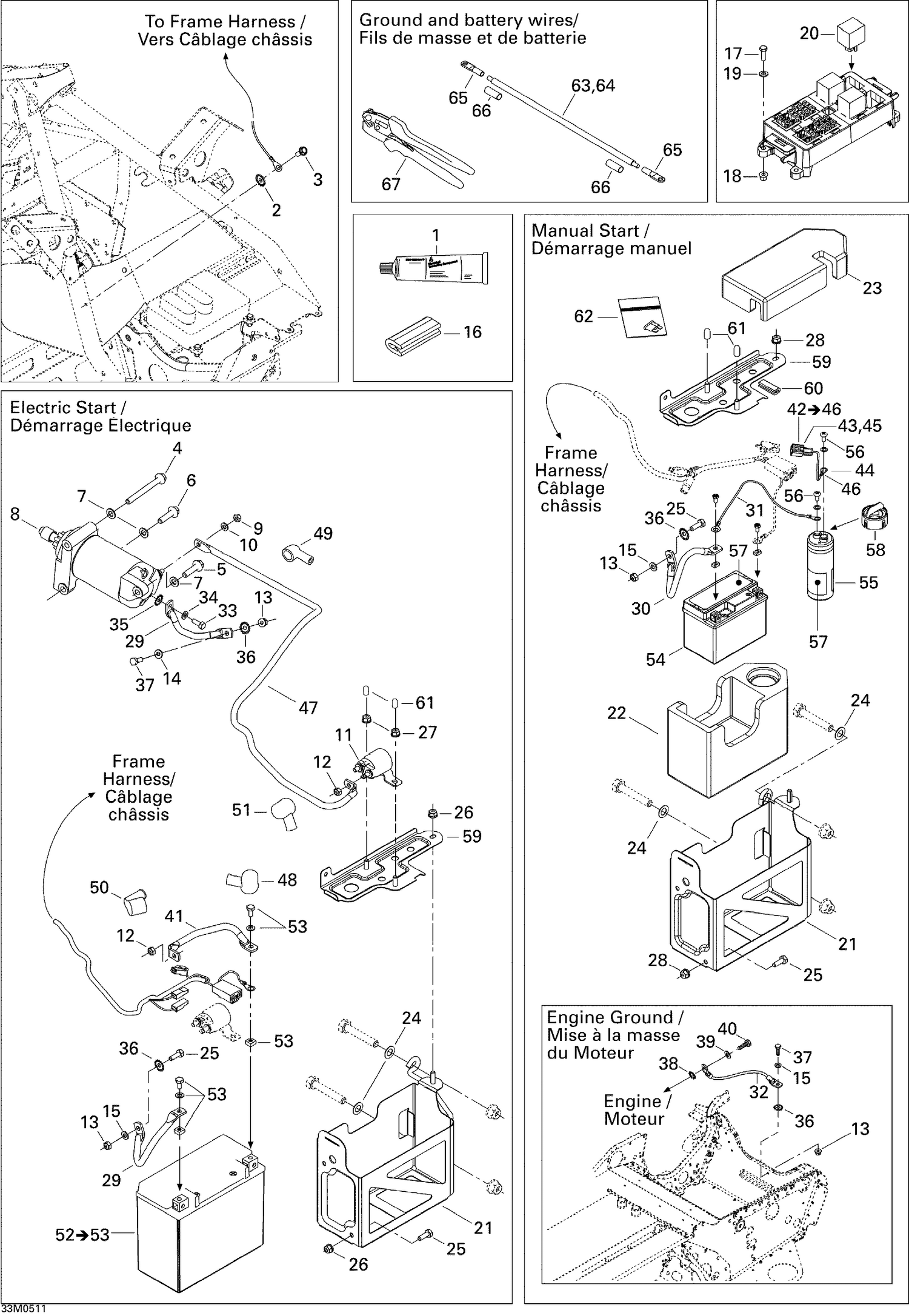

| Ref | Part Number | Description |
|---|
| 1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 2 |
394001900 |
EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 3 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 13 |
232561414 |
Elastic Stop Nut M6 |
| 15 |
234061410 |
Flat Washer 6 mm |
| 16 |
219704353 |
Was 271000110 Protection Trim |
| 17 |
207152044 |
Hex. Screw M5 X 20 |
| 18 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 19 |
234051410 |
Flat Washer M5 |
| 21 |
515176230 |
Battery Support Black |
| 24 |
503175800 |
Washer |
| 25 |
207161844 |
Hex. Screw M6 X 18 |
| 36 |
250200041 |
Lock Washer Serrated M6 |
| 37 |
207162044 |
Hex. Screw M6 X 20 |
| 59 |
515175735 |
BATTERY STRIP - Call your local BRP dealership |
| 61 |
515176141 |
Cap |
| 63 |
278001680 |
Ground Cable Battery, no 6, meter) |
| 64 |
278001690 |
Cable Battery, no 6, meter) |
| 65 |
278001682 |
Terminal 45°, Small Hole |
| 66 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 278001685 |
FLAT |
TERMINAL, BIG HOLE - Call your local BRP dealership 278001685 |
| 278001685 |
Terminal |
Plate, Gros Trou - Appelez votre concessionnaire BRP local 278001685 |
| 278001688 |
FLAT |
TERMINAL - Call your local BRP dealership 278001688 |
| 278001688 |
Terminal |
Plat - Appelez votre concessionnaire BRP local 278001688 |
