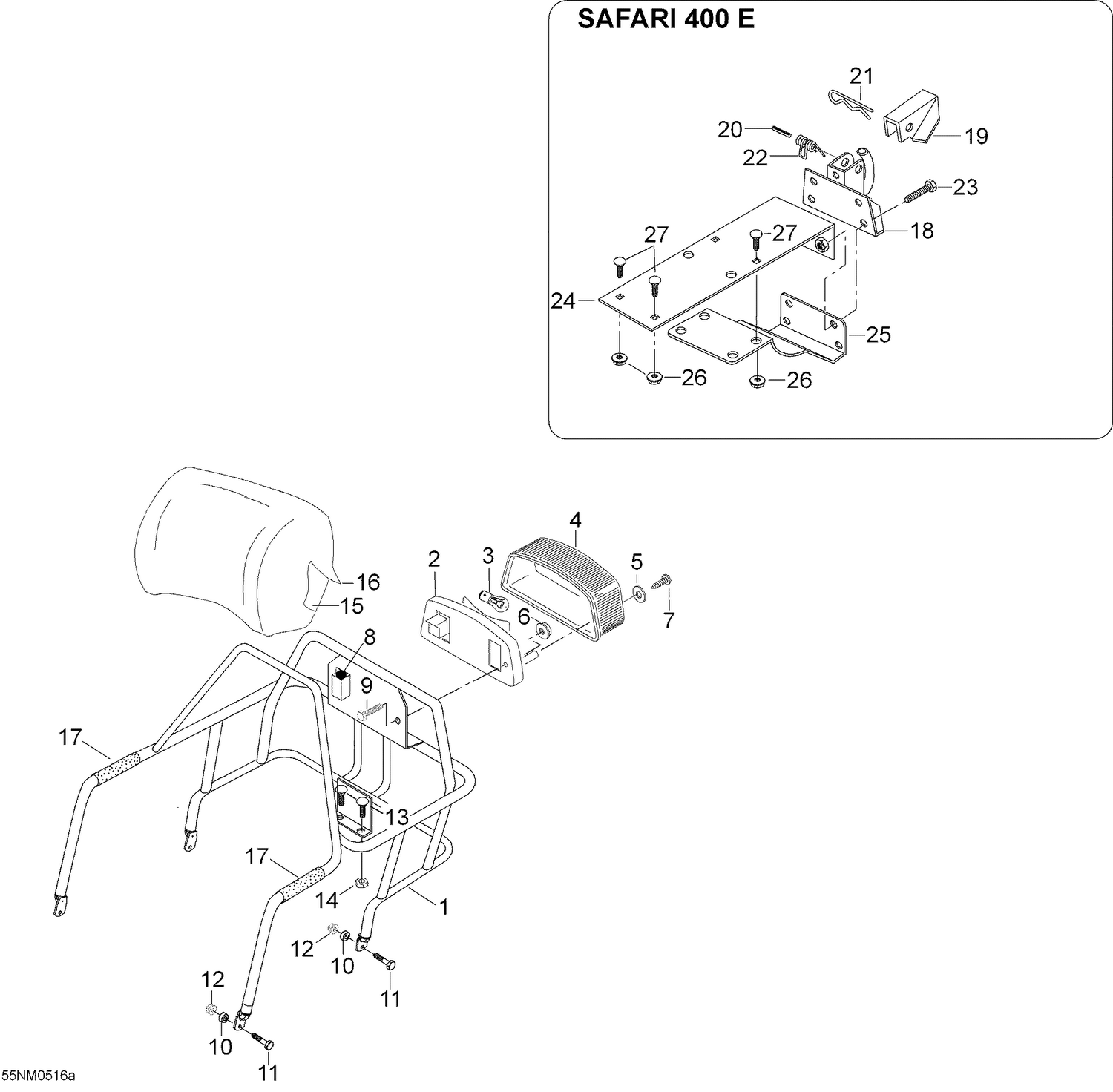

| Ref | Part Number | Description |
|---|
| 1 |
605252065 |
Tail rack |
| 2 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership |
| 3 |
520000758 |
Bulb This part replaces 410504000. |
| 4 |
414513700 |
Lens |
| 5 |
414516400 |
Washer - Call your local BRP dealership |
| 6 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 7 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 8 |
5345713 |
Cover - Call your local BRP dealership |
| 9 |
40032 |
Hex. screw M6 x 30 |
| 10 |
548491 |
Sleeve |
| 11 |
40387 |
Screw M8 x 30, Wulock |
| 12 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 13 |
40866 |
Locking screw M6 x 20 |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 15 |
539399 |
FOAM, BACKREST - Call your local BRP dealership |
| 16 |
5340917 |
COVER-BACKREST - Call your local BRP dealership |
| 17 |
415050300 |
RH Grip (250 mm) |
| 18 |
XXX |
Not Available As Spare Parts |
| 19 |
XXX |
Not Available As Spare Parts |
| 20 |
XXX |
Not Available As Spare Parts |
| 21 |
XXX |
Not Available As Spare Parts |
| 22 |
XXX |
Not Available As Spare Parts |
| 23 |
XXX |
Not Available As Spare Parts |
| 24 |
XXX |
Not Available As Spare Parts |
| 25 |
XXX |
Not Available As Spare Parts |
| 26 |
XXX |
Not Available As Spare Parts |
