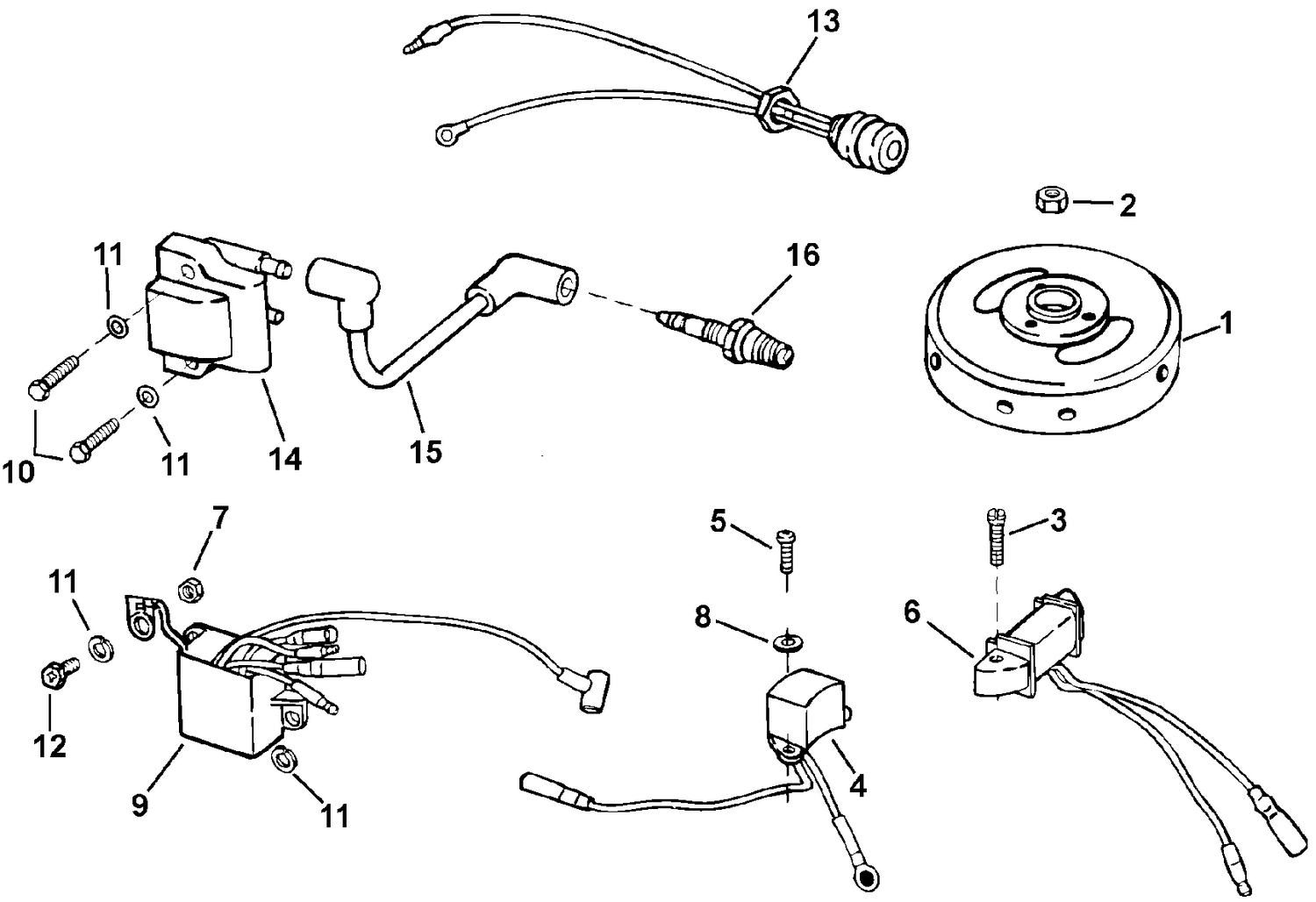

IGNITION / ELECTRICAL
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0115718 | FLYWHEEL |
| 2 | 0115492 | NUT, Flywheel |
| 3 | 0115751 | VIS, bobine de charge |
| 4 | 0452196 | CAPTEUR |
| 5 | 0446102 | VIS de montage, capteur |
| 6 | 0452193 | BOBINE DE CHARGE |
| 7 | 0115227 | NUT, Power pack |
| 8 | 0115752 | RONDELLE, capteur |
| 9 | 0115742 | POWER PACK |
| 10 | 0115197 | MOUNTING SCREW, Fuel tank |
| 11 | 0115198 | SPRING WASHER, Fuel tank screw |
| 12 | 0115226 | SCREW, Exhaust to cylinder block |
| 13 | 0114796 | STOP SWITCH & NUT Assy |
| 14 | 0582508 | COIL ASSY |
| 15 | 0582365 | H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
