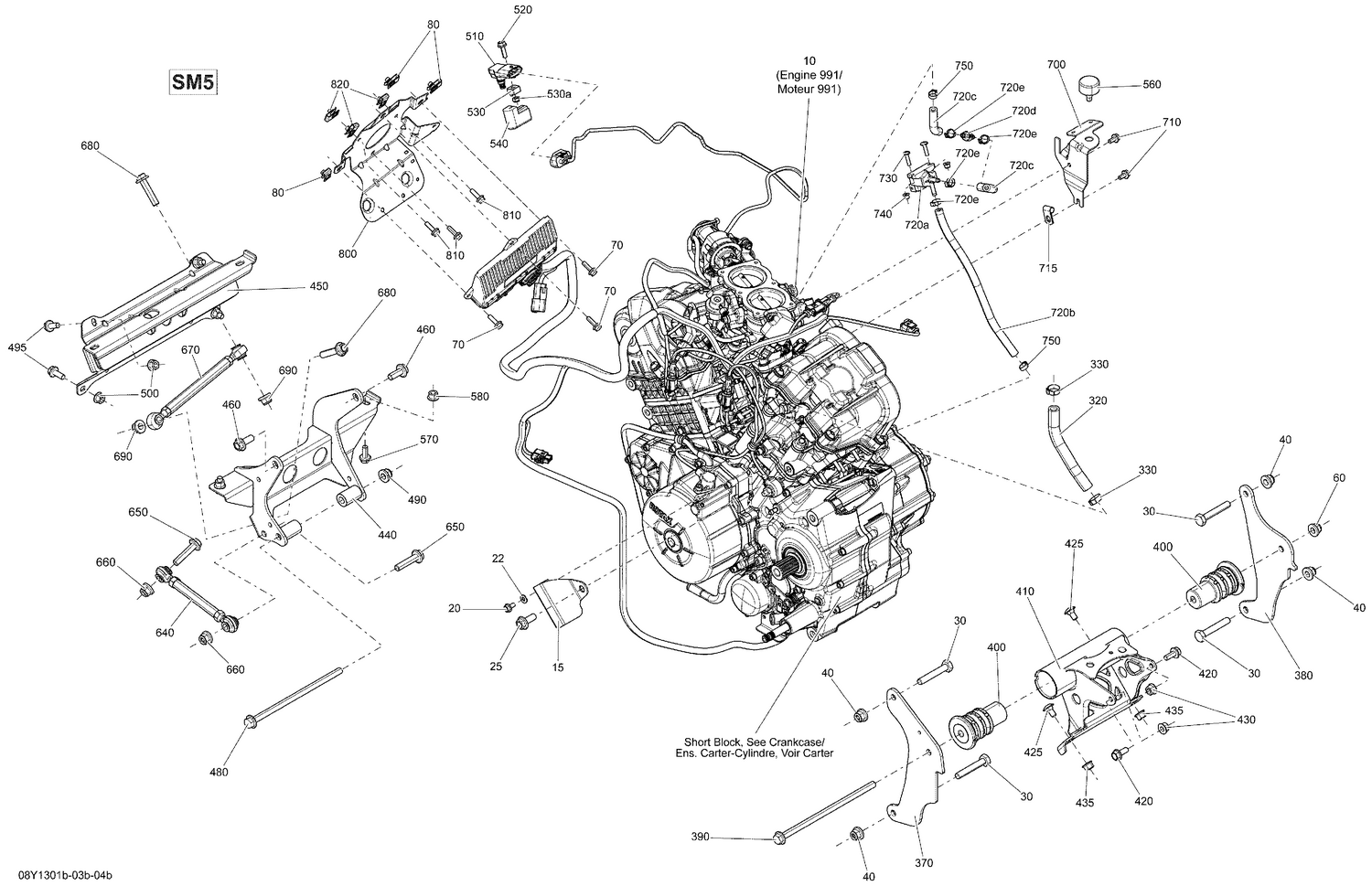

| Ref | Part Number | Description |
|---|
| 15 |
707000845 |
DEFLECTOR - Call your local BRP dealership |
| 20 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 22 |
224061121 |
Flat Washer |
| 25 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 30 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 40 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 60 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 70 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 80 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 320 |
707000484 |
HOSE - Call your local BRP dealership This part replaces 707000531. |
| 330 |
293650186 |
Oetiker Clamp |
| 370 |
707001238 |
LH ENGINE SUPPORT - Call your local BRP dealership |
| 380 |
707001239 |
RH ENGINE SUPPORT - Call your local BRP dealership |
| 390 |
250000286 |
HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership |
| 400 |
707000814 |
RUBBER MOUNT - Call your local BRP dealership |
| 410 |
707001233 |
EXTENTION - Call your local BRP dealership |
| 420 |
207682046 |
Hex. Flange Screw M8 X 20 |
| 425 |
207782046 |
Carriage Bolt M8 X 20 |
| 430 |
233081416 |
Hex. Flange Nut M8 |
| 435 |
233081416 |
Hex. Flange Nut M8 |
| 440 |
707001055 |
FRONT ENGINE SUPPORT - Call your local BRP dealership |
| 450 |
707001056 |
Front Rubber Mount |
| 460 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 480 |
250000583 |
Hex. Flange Screw M10 X 200 |
| 490 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 495 |
207682046 |
Hex. Flange Screw M8 X 20 |
| 500 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 510 |
707000995 |
Pressure And Temperature Sensor |
| 520 |
207662084 |
Hex. Flange Screw M6 X 20 |
| 530a |
232561600 |
Hex. Elastic Stop Nut M6 |
| 540 |
707000586 |
Foam Filter |
| 560 |
708000758 |
Rubber Stopper |
| 570 |
207682046 |
Hex. Flange Screw M8 X 20 |
| 580 |
233081416 |
Hex. Flange Nut M8 |
| 640 |
707001358 |
Connecting Rod This part replaces 707001220. |
| 650 |
207504546 |
Hex. Flange Screw M10 X 45 Scotch Grip |
| 660 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 670 |
707001357 |
CONNECTING ROD - Call your local BRP dealership This part replaces 707001219. |
| 680 |
207504546 |
Hex. Flange Screw M10 X 45 Scotch Grip |
| 690 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 700 |
707000756 |
Intake Support |
| 710 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 715 |
415052400 |
Bracket |
| 720a |
707001596 |
Solenoid Valve This part replaces 707000530. |
| 720b |
513033565 |
Hose |
| 720c |
513033565 |
Hose |
| 720d |
513033469 |
Check Valve |
| 720e |
293650042 |
Oetiker Clamp |
| 730 |
250000724 |
Torx Screw M5 X 20 This part replaces 250000130. |
| 740 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 750 |
293650042 |
Oetiker Clamp |
| 800 |
707800469 |
BRACKET - Call your local BRP dealership |
| 810 |
207662044 |
Hex. Flange Screw M6 X 20 |
