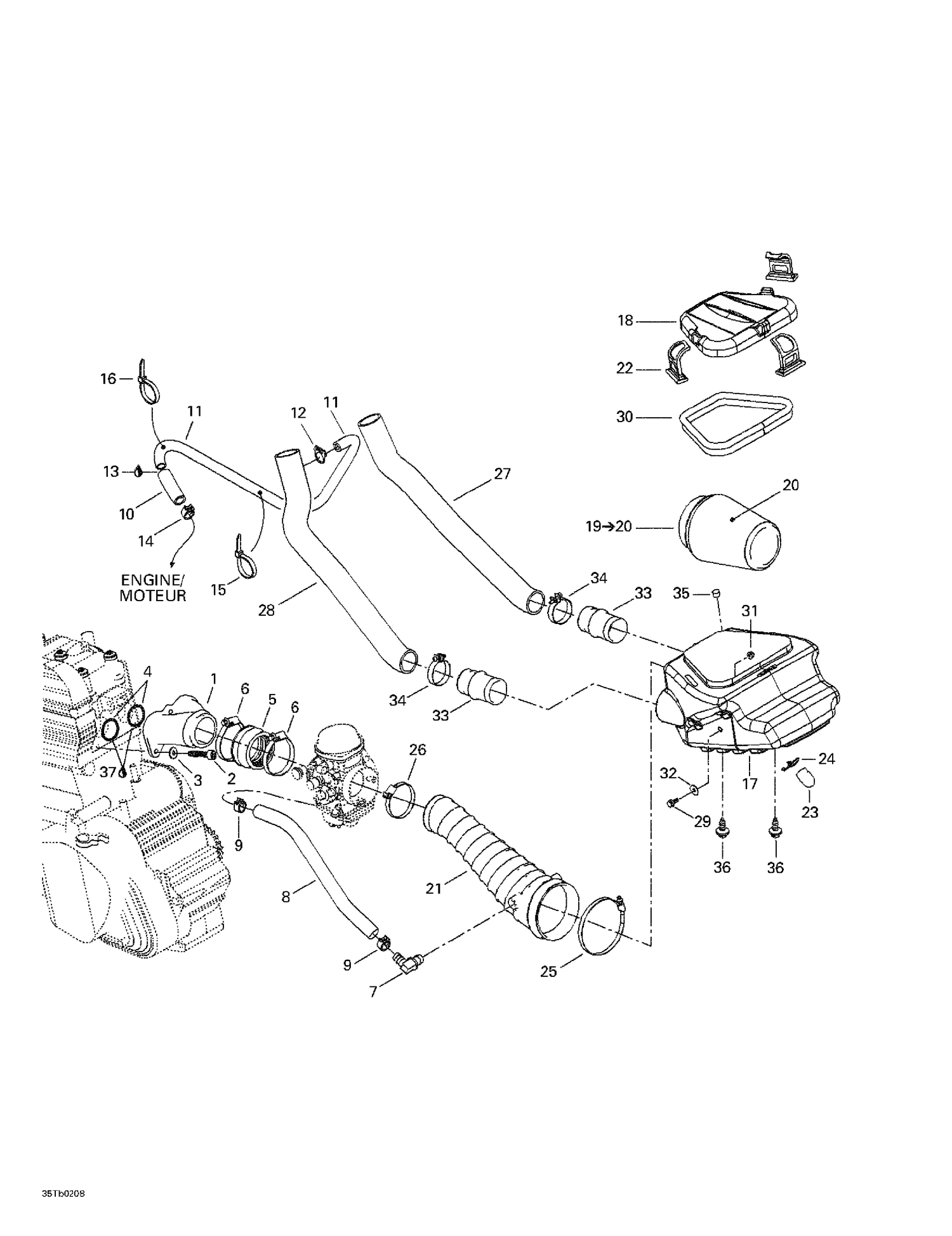

02- Air Intake System
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 711267230 | Intake Adaptor |
| 2 | 205062544 | Socket Head Screw M6 X 25 |
| 3 | 234061410 | Flat Washer 6 mm |
| 4 | 293300059 | O-Ring |
| 5 | 420267240 | Carburator Flange 52 mm This part replaces 711267240. |
| 6 | 293650090 | Norma Gear Clamp |
| 7 | 414523600 | Elbow Fitting |
| 8 | 414644800 | OIL LINE - Call your local BRP dealership |
| 9 | 414655700 | Spring Clamp |
| 10 | 204560396 | HOSE 5/16 - Call your local BRP dealership This part replaces 275500345. |
| 11 | 219704394 | Was 276000001 Hose 12.5 mm |
| 12 | 293650119 | HOSE CLAMP - Call your local BRP dealership |
| 14 | 293650047 | Crimp Clamp, 15.3-706R |
| 15 | 414115200 | Tie-Rap 180 mm |
| 16 | 293750008 | Tie Wrap 368 mm |
| 17 | 707800021 | Air Silencer |
| 18 | 707800022 | Air Silencer Cover |
| 20 | 707800074 | Foam |
| 21 | 707800142 | INTAKE ADAPTOR - Call your local BRP dealership This part replaces 707800076. |
| 22 | 708200003 | COVER LATCH - Call your local BRP dealership |
| 23 | 707800080 | Drain Tube |
| 24 | 707800081 | RETAINER CLIP - Call your local BRP dealership |
| 25 | 514052983 | Norma Gear Clamp |
| 26 | 293650118 | Norma Gear Clamp This part replaces 514052859. |
| 27 | 707800093 | Vent Hose |
| 28 | 707800094 | Vent Hose |
| 29 | 207662044 | Hex. Flange Screw M6 X 20 |
| 30 | 219704371 | Neoprene Seal 3000 mm Long |
| 31 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 32 | 224060201 | Flat Washer |
| 33 | 707800038 | DEFLECTOR - Call your local BRP dealership |
| 34 | 293650160 | GEMI CLAMP - Call your local BRP dealership This part replaces 293650106. |
| 35 | 572051500 | Cap |
| 36 | 293730040 | Mount Dart This part replaces 293730018. |
