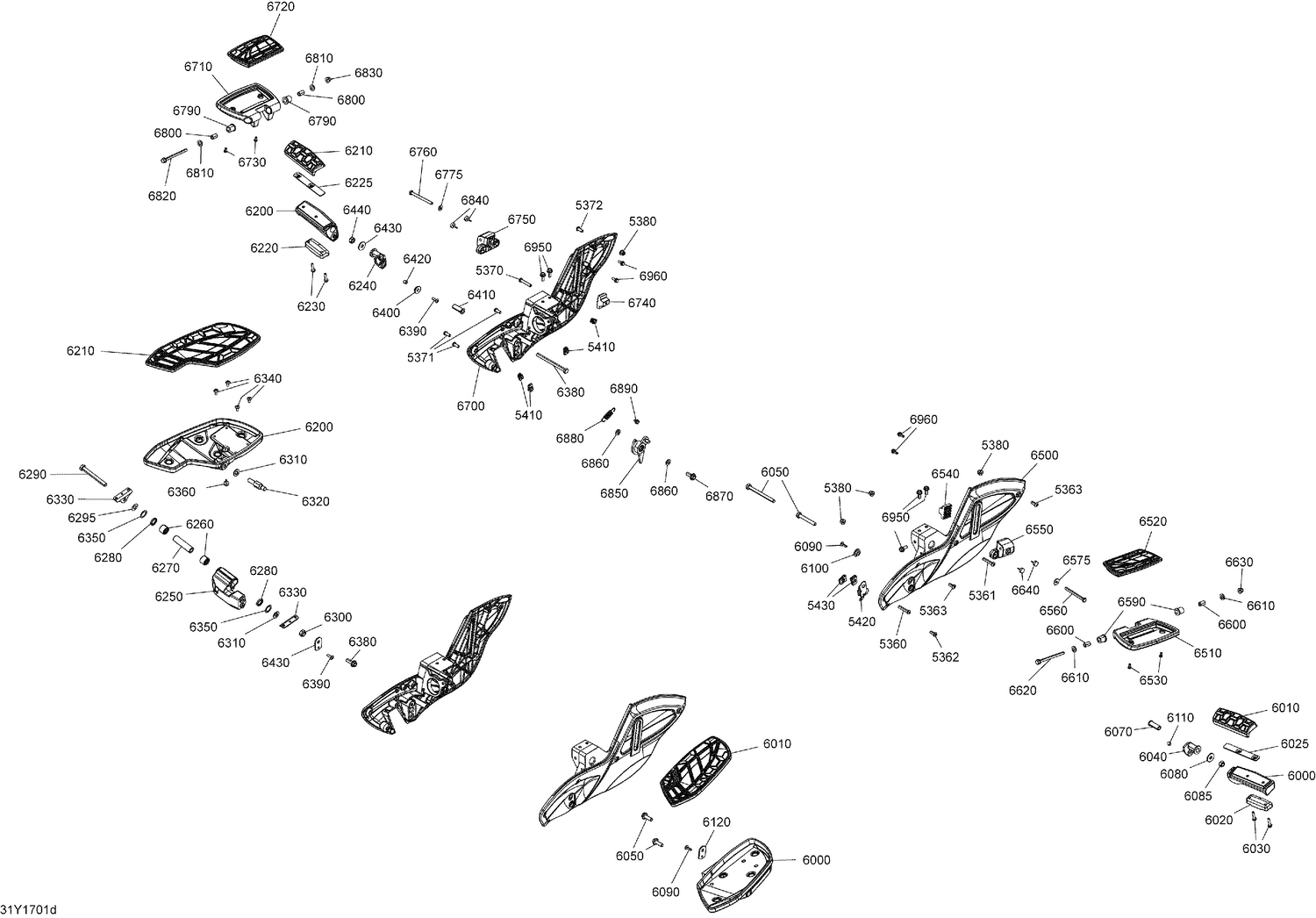

09- Body And Accessories - Footrest - All Models
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 5360 | 205484560 | Socket Screw M8 X 45 |
| 5361 | 205484560 | Socket Screw M8 X 45 |
| 5362 | 205482060 | Socket Head Screw M8 X 20 |
| 5363 | 205482060 | Socket Head Screw M8 X 20 |
| 5370 | 205484560 | Socket Screw M8 X 45 |
| 5371 | 205482060 | Socket Head Screw M8 X 20 |
| 5372 | 205482060 | Socket Head Screw M8 X 20 |
| 5380 | 233281434 | Hex. Flange Elastic Nut M8 |
| 5410 | 250100111 | Panel Nut M8 |
| 5420 | 705007375 | Panel Support |
| 5430 | 250100069 | Panel Nut M8 X 1.25 |
| 6080 | 234002600 | Flat Washer 10 mm, Stainless |
| 6090 | 250000722 | Torx Screw M6 X 20 |
| 6390 | 250000722 | Torx Screw M6 X 20 |
| 6520 | 705007461 | LH Rubber Rear Pad |
| 6530 | 250000099 | Allen Plastite Screw #12 |
| 6540 | 705003013 | Adjuster Block |
| 6560 | 207189060 | Hex. Screw M8 x 90 |
| 6575 | 234281704 | Spring Washer M8 |
| 6590 | 705003018 | Rubber Bushing |
| 6600 | 705002153 | Bushing |
| 6610 | 503183800 | Washer |
| 6620 | 230681034 | Hex. Flange Screw M8 X 110 |
| 6630 | 233281434 | Hex. Flange Elastic Nut M8 |
| 6640 | 708000759 | Rubber Stopper |
| 6720 | 705007472 | RH Rubber Rear Pad |
| 6730 | 250000099 | Allen Plastite Screw #12 |
| 6740 | 705003013 | Adjuster Block |
| 6760 | 207189060 | Hex. Screw M8 x 90 |
| 6775 | 234281704 | Spring Washer M8 |
| 6790 | 705003018 | Rubber Bushing |
| 6800 | 705002153 | Bushing |
| 6810 | 503183800 | Washer |
| 6820 | 230681034 | Hex. Flange Screw M8 X 110 |
| 6830 | 233281434 | Hex. Flange Elastic Nut M8 |
| 6840 | 708000759 | Rubber Stopper |
| 6950 | 207582054 | Hex Screw Washer Head M8 X 20 |
