Home / BRP / 2013 / TUNDRA / TUNDRA XTREME 600HOE XP, 2013 000GLDA00 000GLDB00 / FUEL PUMP

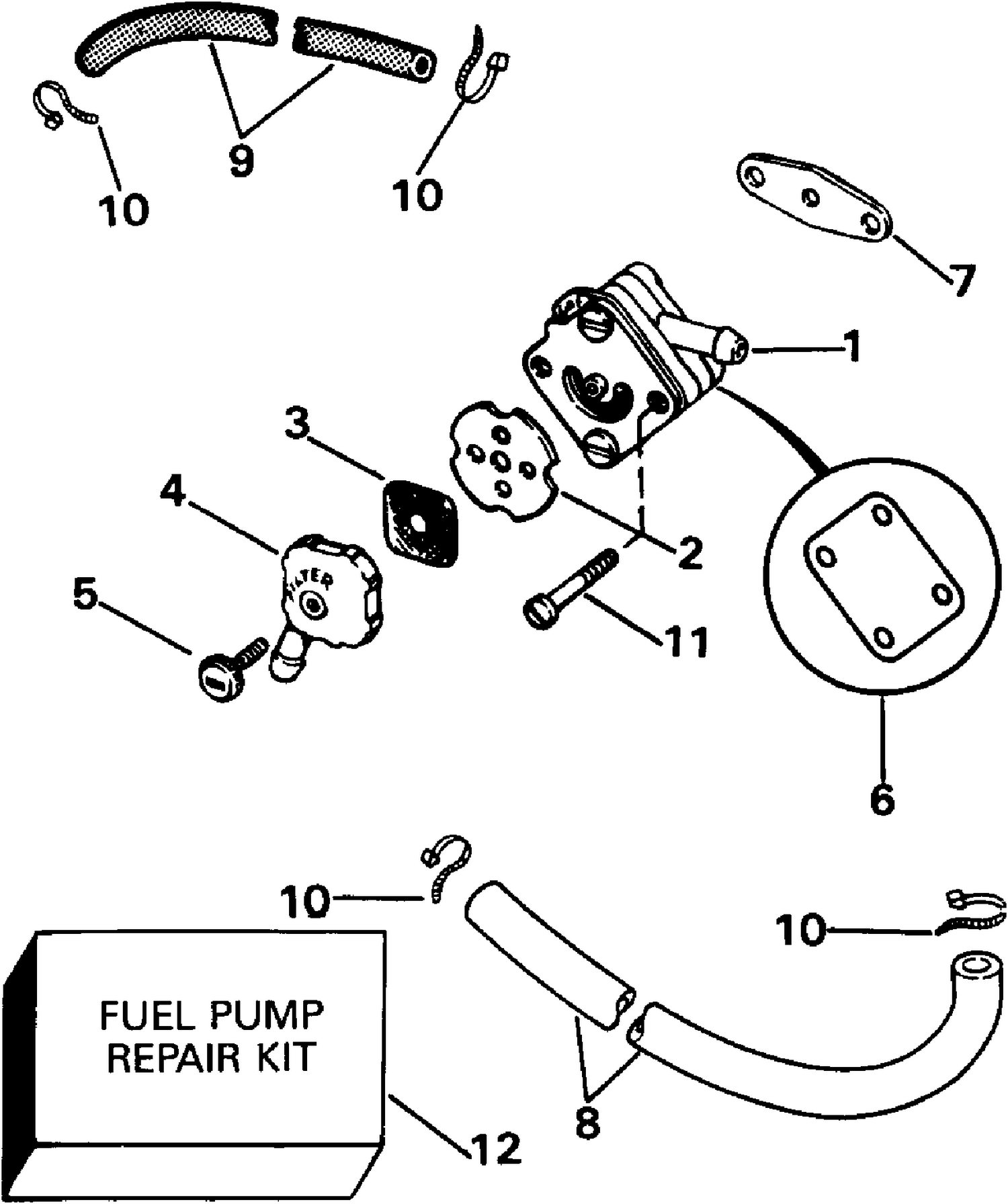

FUEL PUMP

FUEL PUMP

Parts (6)

RefPart NumberDescription
1 0388684 FUEL PUMP ASSY.
7 0303615 GASKET
8 HOSE, Connector to pump, 3 in. (75mm)
9 0333626 HOSE, Pump to carburetor
10 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
11 0330184 VIS, montage pompe
