| Ref | Part Number | Description |
|---|
| 1 |
3853714 |
NUT, Solenoid |
| 2 |
3853717 |
ARMATURE |
| 3 |
3854200 |
FRAME & MAGNET |
| 4 |
0987891 |
BRUSH & HOLDER This part replaces 3854202. |
| 5 |
3854194 |
SOLENOID ASSY. |
| 6 |
3854195 |
SHAFT ASSY., Output |
| 7 |
3854198 |
GEAR ASSY., Planet |
| 8 |
3853720 |
RETAINER, Gear |
| 9 |
3853718 |
WASHER, Thrust |
| 10 |
3853736 |
E-RING, Output shaft |
| 11 |
3854196 |
DRIVE ASSY. |
| 12 |
3852713 |
RETAINER, Drive stop ring |
| 13 |
3852714 |
RING, Drive stop |
| 14 |
3854197 |
SEAL ASSY. |
| 15 |
3853721 |
BALL, Armature thrust |
| 16 |
3854199 |
HOUSING ASSY. |
| 17 |
3853774 |
BEARING, Drive end |
| 18 |
3854203 |
PLATE & BUSHING |
| 19 |
3853773 |
BEARING, Plate |
| 20 |
3853719 |
BOLT |
| 21 |
SCREW, |
Brush assy. |
| 22 |
SCREW, |
Solenoid |
| 23 |
3854223 |
PLANET GEAR ASSY. |
| 24 |
3853716 |
BEARING, Planet gear |
| 25 |
3853749 |
WEDGE, Gear assembly |
| 26 |
3854201 |
LEVER ASSY. |
| 27 |
3854193 |
LEAD, Starter |
| 30 |
0916197 |
COVER, Terminal This part replaces 3854271. |
| 31 |
3853326 |
SCREW, Bracket to engine |
| 32 |
3852434 |
CLAMP, Engine cable |
| 3854190 |
3854190 |

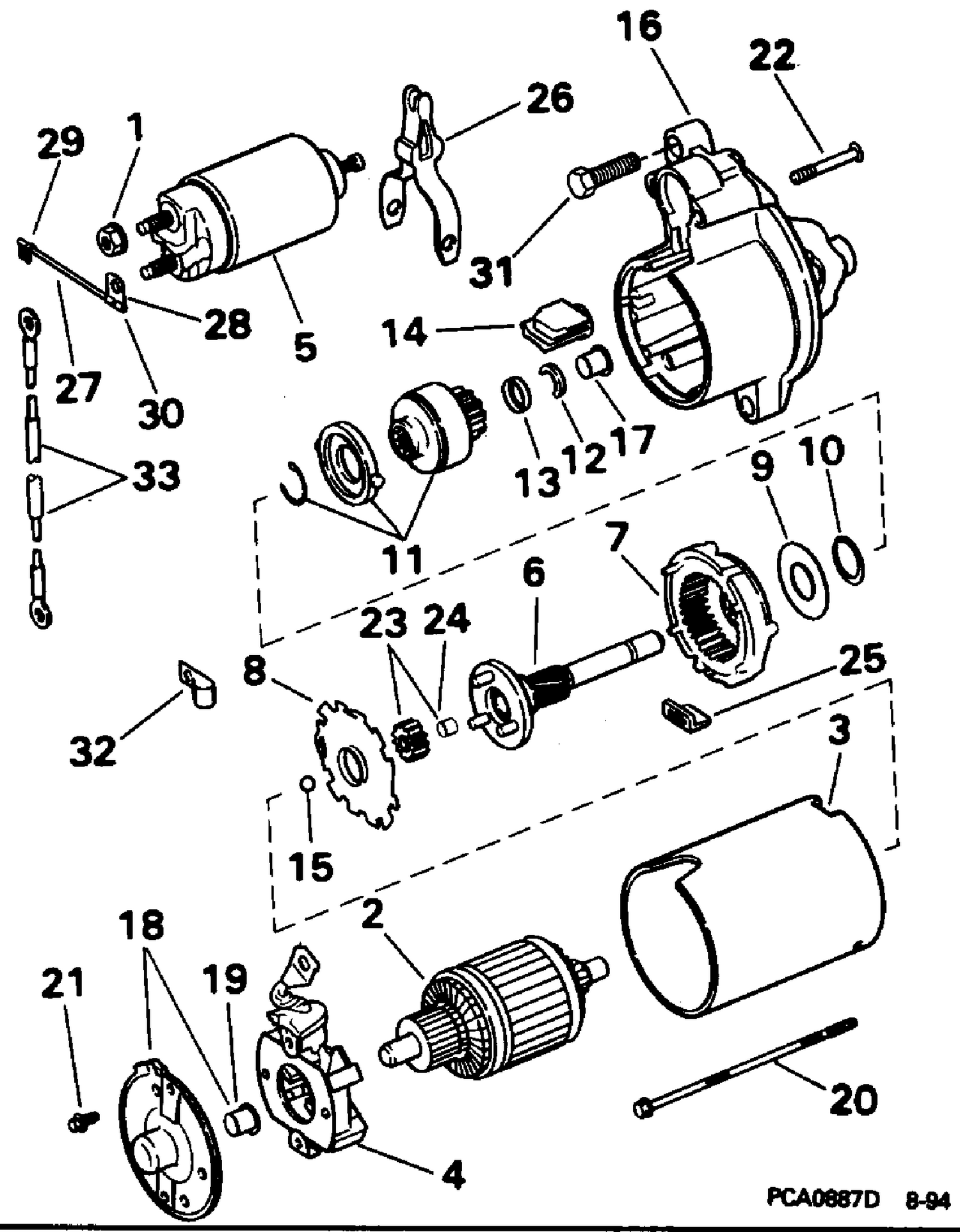

STARTER |
| 3854231 |
3854231 |
KIT, Hardware |
