| Ref | Part Number | Description |
|---|
| BN1 |
710000913 |
Terminal |
| BN2 |
278001392 |
Open Barrel Terminal |
| BP1 |
278001392 |
Open Barrel Terminal |
| CI |
278002858 |
Female Housing 20 Circuits |
| CI |
278002860 |
Sealing Cap |
| CI |
515178018 |
Female Terminal |
| CI |
515178349 |
Female Terminal 22 AWG |
| D2 |
409012700 |
Diode |
| DB |
710002705 |
Lock |
| DB |
710002706 |
Female Housing 6 Circuits |
| DB |
710005437 |
Plug |
| DB |
710005438 |
Female Terminal |
| DB |
710005439 |
Female Terminal |
| DC1 |
409010300 |
Female Terminal |
| DC2 |
409010300 |
Female Terminal |
| DC3 |
515175231 |
Female Terminal |
| DC3 |
515175658 |
Female Housing, 2 Circuits |
| DC3_C |
710000667 |
Male Housing, 2 Circuits |
| DPS |
278002186 |
Wire Seal |
| DPS |
278002187 |
Female Terminal |
| DPS |
710001222 |
Lock |
| DPS |
710001860 |
Seal |
| DPS |
710001873 |
Terminal |
| DPS |
710002075 |
Plug |
| DPS |
710004989 |
Female Housing |
| DPS |
710005098 |
Lock |
| F12 |
710000746 |
Little Fuse, 20 Amperes |
| F4 |
710000744 |
Little Fuse, 10 Amperes |
| F5 |
710000744 |
Little Fuse, 10 Amperes |
| F8 |
710000744 |
Little Fuse, 10 Amperes |
| F9 |
710000746 |
Little Fuse, 20 Amperes |
| FP |
409209700 |
Female Housing, 4 Circuits |
| FP |
515176621 |
Wire Seal |
| FP |
710001340 |
Female Terminal |
| FRR1 |
515175658 |
Female Housing, 2 Circuits |
| FRR1 |
710003896 |
Female Terminal |
| FT |
278000217 |
Female Housing, 2 Circuits |
| FT |
278000218 |
Wire Seal |
| FT |
409004300 |
Male Terminal |
| FT |
409210100 |
Clip Bracket Connector (edge) |
| HIC1 |
710001222 |
Lock |
| HIC1 |
710001226 |
Housing |
| HIC1 |
710001229 |
Terminal |
| HIC1 |
710001233 |
Seal |
| HIC2 |
710001222 |
Lock |
| HIC2 |
710001228 |
Terminal |
| HIC2 |
710001229 |
Terminal |
| HIC2 |
710001233 |
Seal |
| HIC2 |
710001332 |
Seal Wire |
| HIC2 |
710001928 |
Housing |
| HL_L |
515177217 |
Terminal |
| HL_L |
710004010 |
Female Housing |
| HL_L |
710004020 |
Headlamp Protector Cap |
| HL_R |
515177217 |
Terminal |
| HL_R |
710004010 |
Female Housing |
| HL_R |
710004020 |
Headlamp Protector Cap |
| KEY |
710000848 |
Lock |
| KEY |
710000849 |
Male Housing, 6 Circuits |
| KEY |
710001635 |
Terminal |
| MG1 |
409011300 |
Male Terminal |
| MG1 |
710000080 |
Cap |
| MG1 |
710000402 |
Wire Seal |
| MG1 |
710000835 |
Male Terminal Housing, 6 Circuits |
| MG2 |
409012100 |
Female Terminal |
| MG2 |
409012300 |
Seal |
| MG2 |
710000081 |
Female Housing, 6 Circuits |
| MG2 |
710000402 |
Wire Seal |
| PF1 |
278000999 |
Wire Seal |
| PF1 |
415128501 |
Seal |
| PF1 |
515177009 |
Female Terminal |
| PF1 |
515177012 |
Female Terminal |
| PF1 |
710000840 |
Cap |
| PF1_C |
278002172 |
Foam |
| PF1_C |
710000744 |
Little Fuse, 10 Amperes |
| PF1_C |
710000746 |
Little Fuse, 20 Amperes |
| PF1_C |
710001026 |
Fuse Cover |
| PF1_C |
710003976 |
Fuse Shematic Decal |
| PF2 |
278001325 |
Fuse Holder |
| PF2 |
710000113 |
Female Terminal |
| PF2 |
710001613 |
Fuse |
| PF4 |
278001325 |
Fuse Holder |
| PF4 |
710000357 |
Female Terminal |
| PF4 |
710001613 |
Fuse |
| REG |
710000879 |
Female Housing, 3 Circuits |
| REG |
710000882 |
Cap |
| REG |
710001932 |
Seal |
| REG |
710001934 |
Terminal |
| RL |
515175495 |
Female Housing, 3 Circuits |
| RL |
710003896 |
Female Terminal |
| RSS |
409012100 |
Female Terminal |
| RSS |
710000080 |
Cap |
| RSS |
710000081 |
Female Housing, 6 Circuits |
| RSS |
710000402 |
Wire Seal |
| RY1 |
715900824 |
Relay This part replaces 710001778. |
| RY2 |
715900824 |
Relay This part replaces 710001778. |
| RY3 |
515176774 |
Relay, 30 AMP |
| RY4 |
715900824 |
Relay This part replaces 710001778. |
| RY8 |
715900824 |
Relay This part replaces 710001778. |
| SS1 |
409010300 |
Female Terminal |

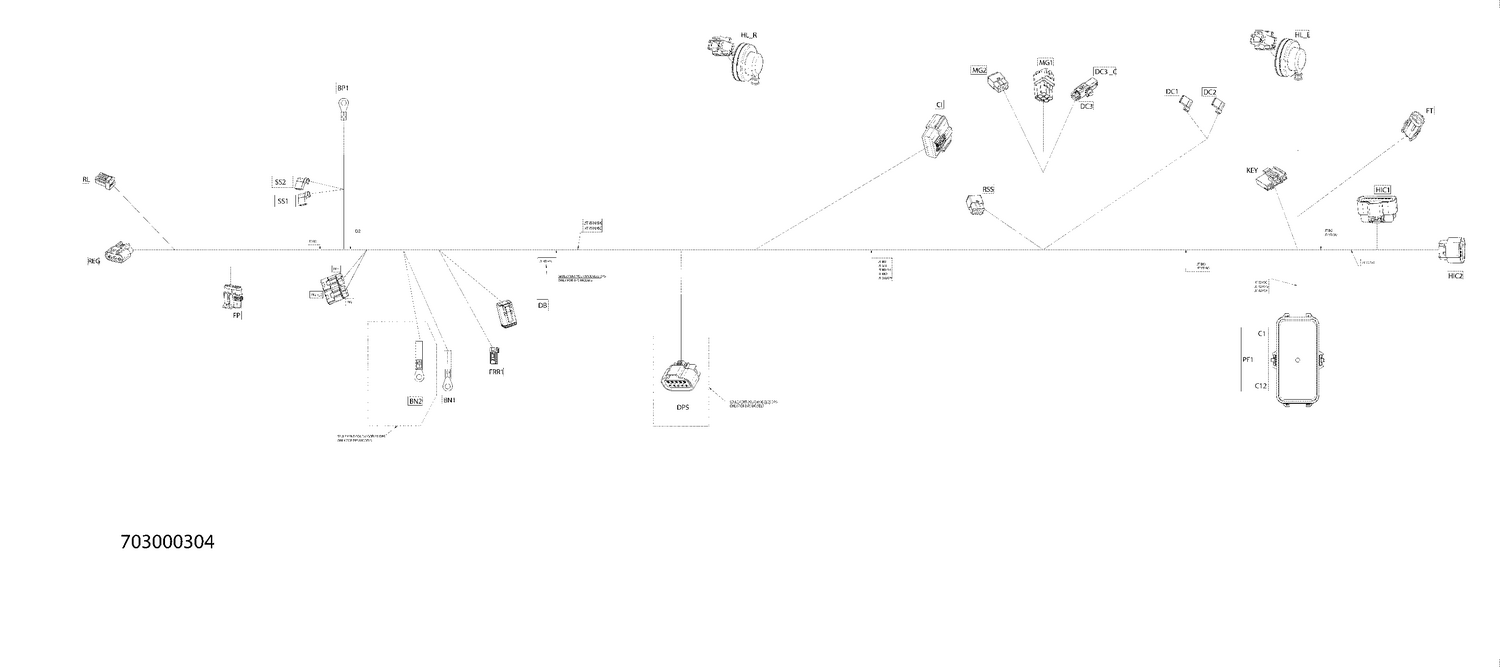

| 200 |
710007265 |
Main Wiring Harness |
