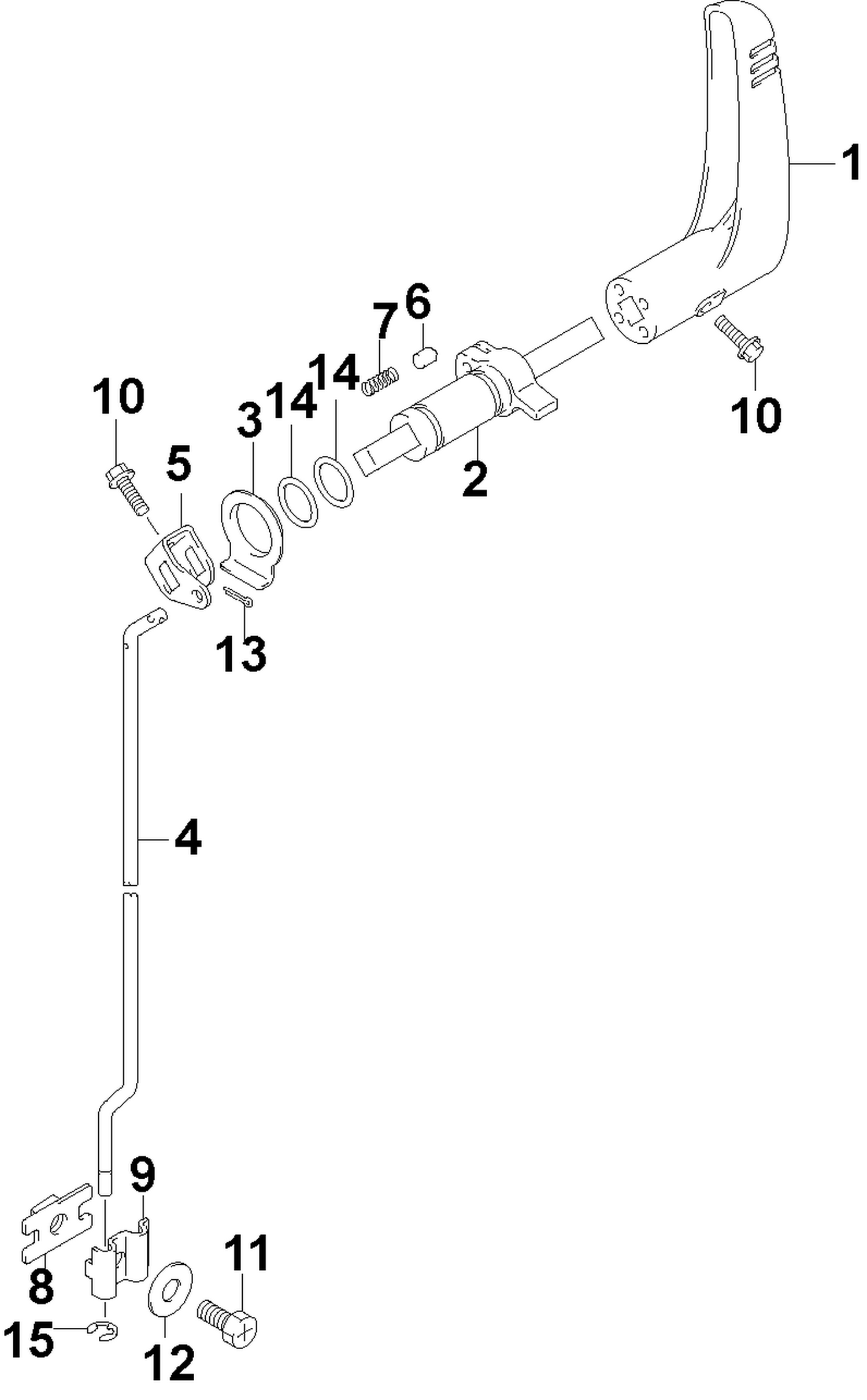

SHIFT LINKAGE
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5033389 | LEVER, CLUTCH |
| 2 | 5033390 | PLATE, CLUTCH SHAFT |
| 3 | 5033392 | SPACER, CLUTCH SHAFT |
| 4 | 5033393 | ROD, CLUTCH |
| 5 | 5033394 | ARM, CLUTCH ROD |
| 6 | 5033395 | PIN, CLUTCH NOTCH |
| 7 | 5033396 | SPRING, CLUTCH NOTCH |
| 8 | 5033397 | CONNECTOR, CLUTCH ROD NO.1 |
| 9 | 5033398 | CONNECTOR, CLUTCH ROD NO.2 |
| 11 | 5033335 | BOLT (6X20mm) |
| 12 | 5033337 | WASHER (6.2X19X3.0mm) |
| 14 | 5031262 | O RING |
