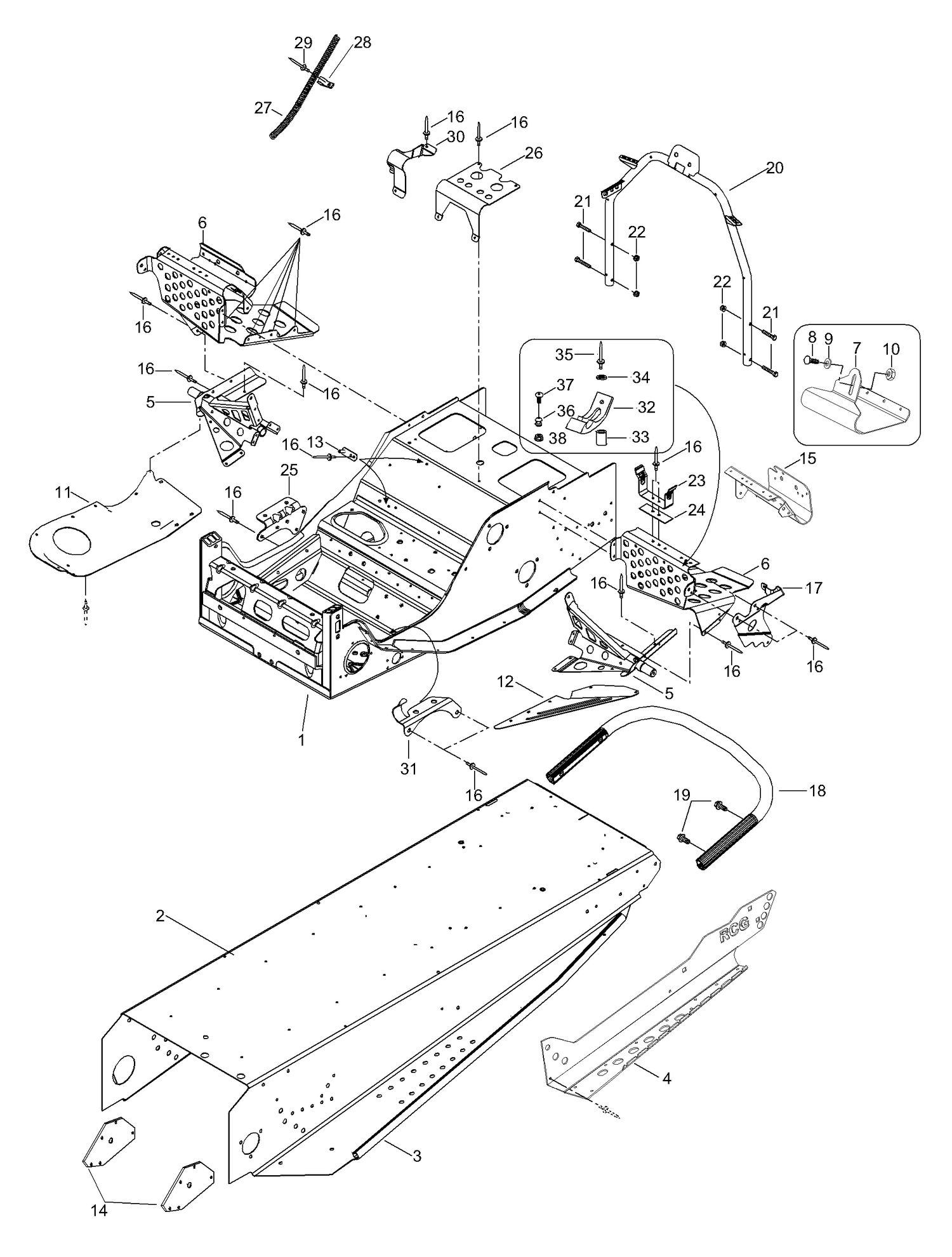

09- Frame
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 5347257 | Support |
| 4 | 605148823 | R.H. bracket |
| 4 | 605148824 | L.H. bracket |
| 5 | 605248447 | R.H. support |
| 5 | 605248448 | L.H. support |
| 6 | 5147867 | R.H. front footrest |
| 6 | 5147868 | L.H. front footrest |
| 7 | 5248038 | R.H. toe hold, adjust. |
| 7 | 5248039 | L.H. toe hold, adjust. |
| 8 | 40058 | Locking screw M8 x 20 |
| 9 | 20005 | WASHER M10 - Call your local BRP dealership |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 11 | 518322636 | RH BOTTOM PAN PLATE - Call your local BRP dealership |
| 12 | 605349267 | L.H. reinf. plate |
| 13 | 518319728 | Double bracket |
| 14 | 5348321 | Support |
| 15 | 5147869 | R.H. toe hold |
| 15 | 5147870 | L.H. toe hold |
| 16 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 17 | 5147871 | R.H. footrest reinforcem. |
| 17 | 5147872 | L.H. footrest reinforcem. |
| 18 | 518322708 | REAR BUMPER - Call your local BRP dealership |
| 19 | 40336 | HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 20 | 5247856 | Handle steering supp. |
| 21 | 40003 | Screw M6 x 35 |
| 22 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 23 | 518202100 | Pulley guard bracket |
| 24 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 25 | 5248123 | Muffler support |
| 26 | 518310400 | AIR INTAKE SUPPORT - Call your local BRP dealership |
| 27 | 518321569 | Rope guide |
| 28 | 27092 | Clip |
| 29 | 36036 | Rivet |
| 30 | 518322699 | Hose support |
| 31 | 515175254 | Cable support |
| 32 | 531955 | Latch |
| 33 | 543417 | Sleeve |
| 34 | 543392 | Washer |
| 35 | 36072 | Rivet |
| 36 | 605449087 | Counter roll |
| 37 | 40168 | Screw M4 x 25 |
