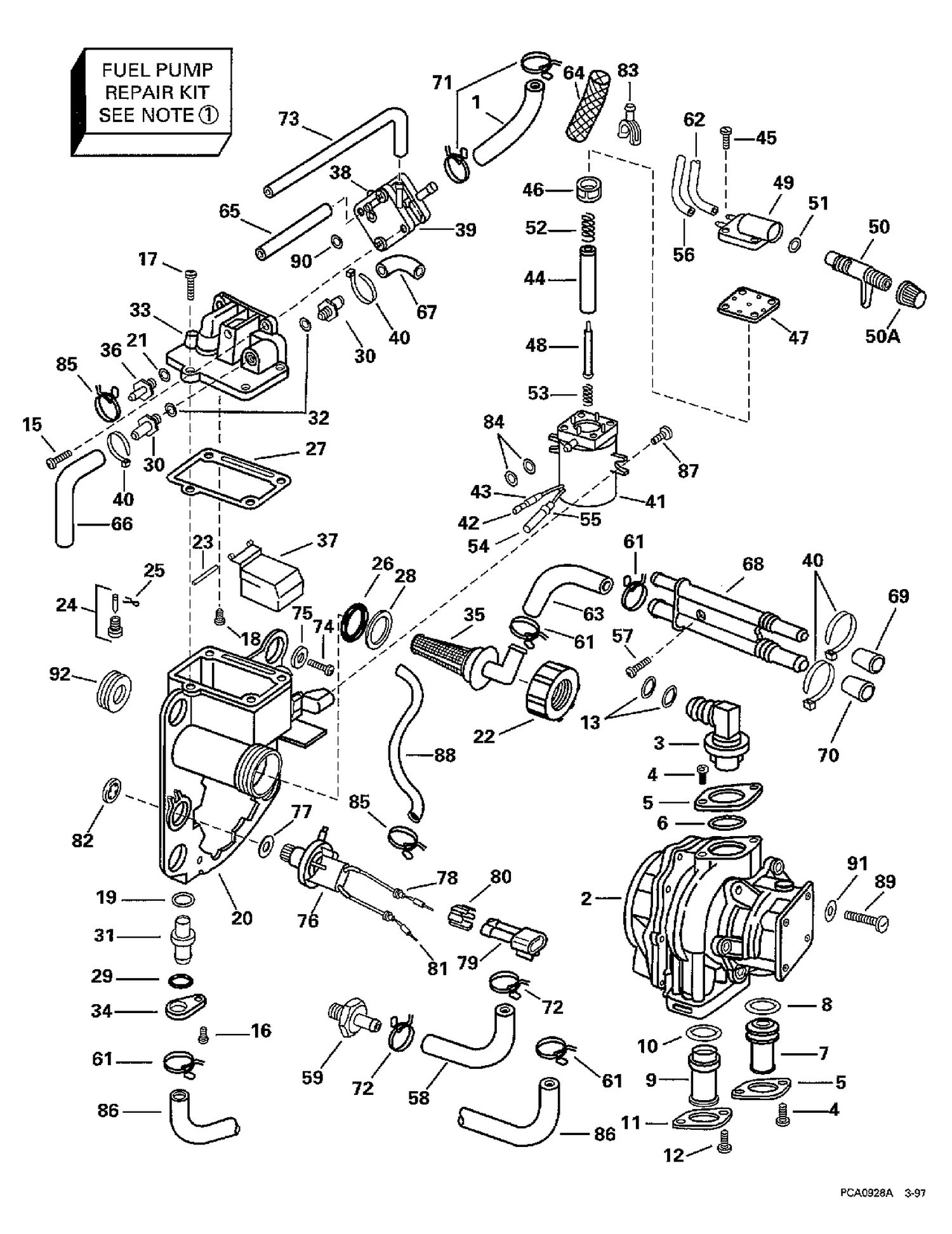

| Ref | Part Number | Description |
|---|
| 1 |
0336318 |
HOSE, pulses, steam pump to crankcase cover |
| 2 |
5007422 |
Kit This part replaces 0438402. |
| 6 |
0335230 |
O-RING |
| 11 |
0340201 |
RETAINER |
| 13 |
0335230 |
O-RING |
| 15 |
0335229 |
SCREW, Bracket to crkc. cover |
| 25 |
0336842 |
CLIP, SPRING |
| 38 |
0433352 |
PUMP AY, VAPOR |
| 40 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 41 |
0437232 |
SOLENOID ASSEMBLY, priming |
| 56 |
HOSE, |
Primer solenoid to stbd. primer nipple, 14 in. (356mm) |
| 58 |
0333407 |
FLEXIBLE, filtre à carburant vers pompe à carburant |
| 61 |
0339279 |
COLLIER DE SERRAGE, conduite de carburant |
| 62 |
HOSE, |
Primer solenoid to port primer nipples, 10 1/2 in. (267mm) |
| 63 |
0336129 |
HOSE, Fuel conn. to filter |
| 65 |
HOSE, |
Vapor pump to lower brg. vent nipple, 1 in. (432mm) |
| 66 |
0336131 |
HOSE, Bracket to manifold - Stbd |
| 67 |
0336132 |
HOSE, Bracket to port manifold |
| 68 |
0335626 |
NIPPLE, Fuel & oil |
| 70 |
0331649 |
CAP, Connector - fuel |
| 71 |
0339277 |
CLAMP, Exh back pressure hose |
| 72 |
0339278 |
COLLIER DE SERRAGE |
| 73 |
HOSE, |
Vapor pump to tee, 7 in. (178mm) |
| 74 |
0325402 |
SCREW, Bracket |
| 75 |
0336316 |
WASHER, screw, bracket to hood |
| 76 |
0586544 |
VACUUM SWITCH This part replaces 0586034. |
| 77 |
0909678 |
JOINT TORIQUE, interrupteur d'aspiration vers support |
| 83 |
0329661 |
SUPPORT/BOUCHON |
| 84 |
0335231 |
O-RING, primer solenoid to bracket |
| 85 |
0339276 |
SERRE-FILS |
| 88 |
HOSE, |
Vapor sep. to vacuum switch, 5 1/2 in. (140mm) |
| 0436695 |
0436695 |
VAPOR SEPARATOR |
