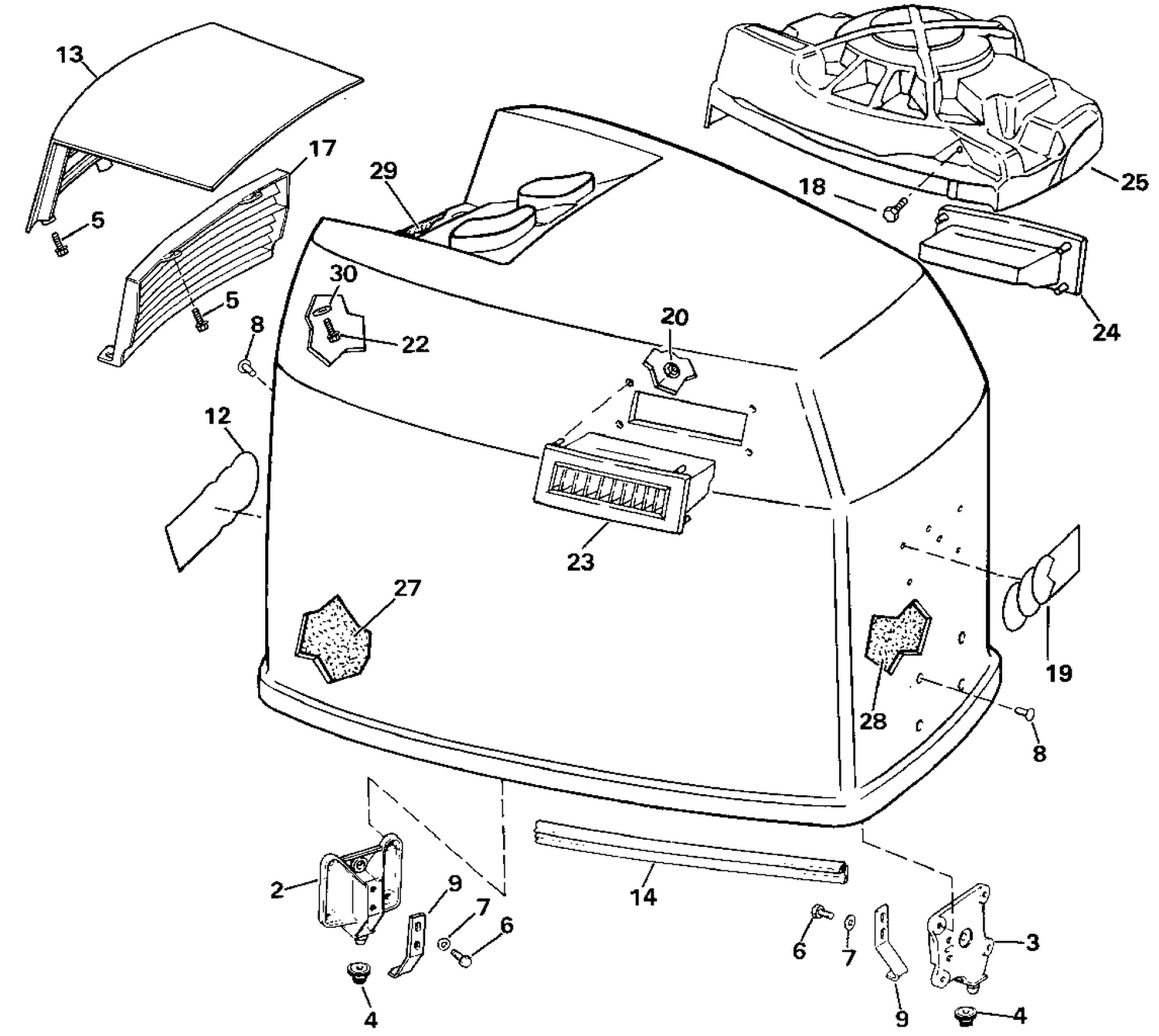

| Ref | Part Number | Description |
|---|
| 1 |
0432457 |
ENGINE COVER ASSY., 200TX |
| 1 |
0432458 |
ENGINE COVER ASSY., 200CX |
| 1 |
0432459 |
ENGINE COVER ASSY., 225 |
| 1 |
0432460 |
ENGINE COVER ASSY., 225 |
| 1 |
0432466 |
ENGINE COVER ASSY., 225 |
| 1 |
0432579 |
ENGINE COVER ASSY., 225 |
| 1 |
0432580 |
ENGINE COVER ASSY., 225 |
| 1 |
0433132 |
ENGINE COVER ASSY., TJ200 |
| 2 |
0331945 |
BAFFLE |
| 3 |
0331944 |
TILT HANDLE |
| 5 |
0329762 |
LOCATING BRACKET, Front |
| 6 |
0394976 |
LOCATING BRACKET, Rear |
| 8 |
0334947 |
SOUND BLANKET, Side |
| 9 |
0334911 |
BAFFLE |
| 13 |
0331921 |
APPLIQUE, Front |
| 13 |
0335036 |
APPLIQUE, Front |
| 15 |
0331920 |
APPLIQUE, Engine cover, rear |
| 18 |
0334555 |
PLATE, Rear, 200TX |
| 18 |
0334557 |
PLATE, Rear, 200CX |
| 18 |
0334558 |
PLATE, Rear, 225 |
| 18 |
0334567 |
PLATE, Rear, 225 |
| 19 |
0334543 |
PLATE, Applique, front, 225 |
| 19 |
0334554 |
PLATE, Applique, front 200TX |
| 19 |
0334556 |
PLATE, Applique, front, 200CX |
| 19 |
0335060 |
PLATE, Applique, front |
| 20 |
0334948 |
SOUND BLANKET, Front |
| 21 |
0334949 |
SOUND BLANKET, Rear |
| 22 |
0334967 |
SCREW, Baffle |
| 24 |
0334910 |
LOUVER, Engine cover, stbd |
| 24 |
0334964 |
LOUVER, Starboard |
| 25 |
0334963 |
LOUVER, Port |
| 26 |
0334909 |
LOUVER, Engine cover, port |
| 27 |
0433169 |
DECAL SET, 200TX, 200CX |
| 27 |
0433170 |
DECAL SET, 225 |
| 27 |
0433210 |
DECAL SET |
| 28 |
0432383 |
OWNER'S MANUAL |
| 28 |
0432386 |
OWNERS MANUAL |
