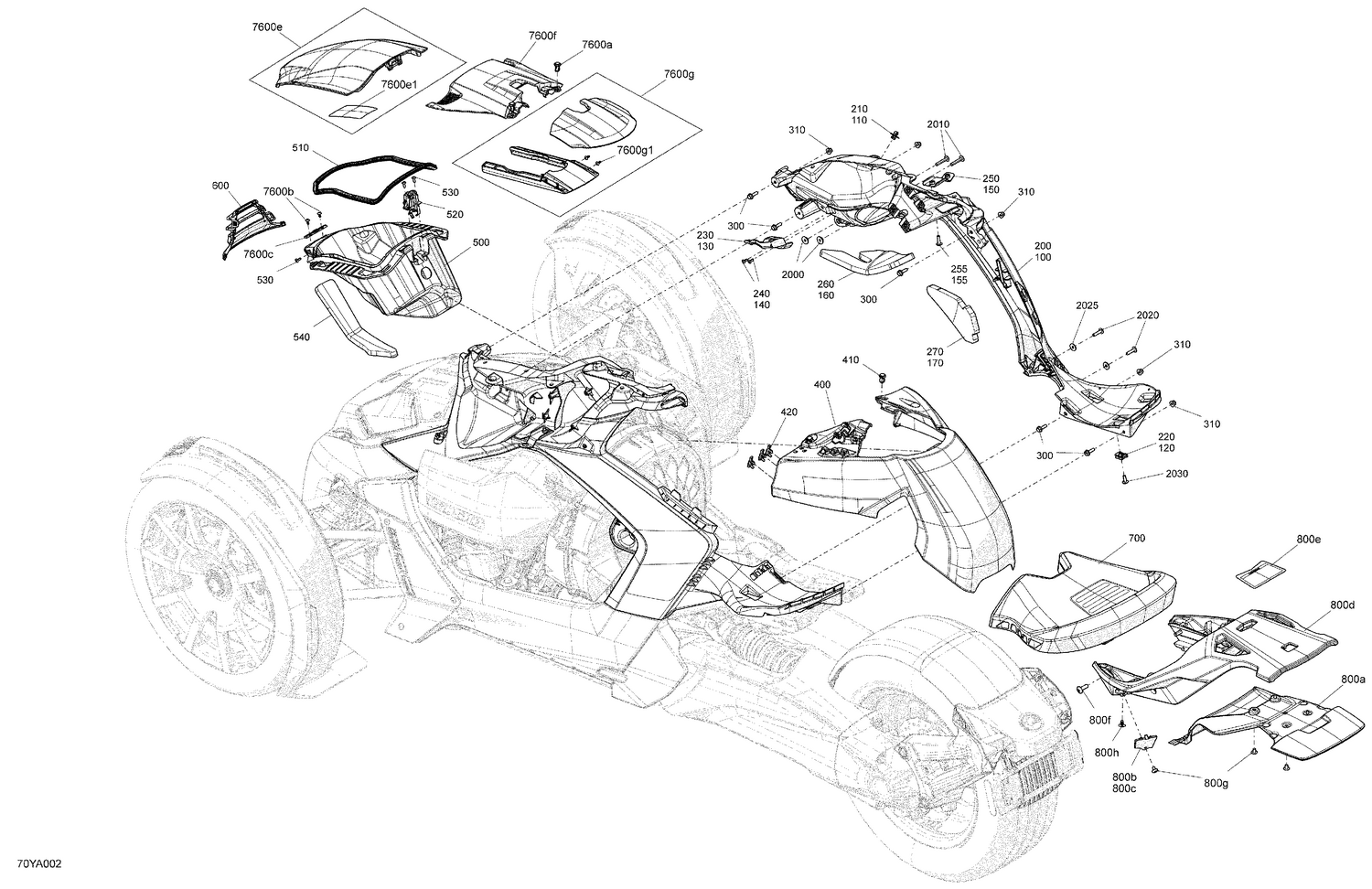

07- Body - Upper Section
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 705208901 | LH Upper Frame |
| 110 | 293730080 | Dart Clip |
| 120 | 250100208 | Panel Nut M6 X 1.0 |
| 130 | 705013415 | LH Holder (support) |
| 140 | 250001131 | Torx Truss PT K40 x 12 |
| 160 | 705013944 | LH Upper Front Acoustic Foam |
| 170 | 705013946 | LH Upper Rear Acoustic Foam |
| 200 | 705208902 | RH Upper Frame |
| 210 | 293730080 | Dart Clip |
| 220 | 250100208 | Panel Nut M6 X 1.0 |
| 230 | 705013416 | RH Holder (support) |
| 240 | 250001131 | Torx Truss PT K40 x 12 |
| 260 | 705013945 | RH Upper Front Acoustic Foam |
| 270 | 705013947 | RH Upper Rear Acoustic Foam |
| 300 | 207662054 | Hex. Flange Screw M6 X 20 |
| 310 | 233261466 | Hex. Flange Elastic Nut M6 |
| 410 | 293150230 | Tuflok Plastic Rivet |
| 420 | 515178223 | Clip Connector |
| 500 | 705205819 | Storage Compartment Front |
| 510 | 708200794 | Neoprene Seal Joint |
| 520 | 705007380 | Push Latch |
| 530 | 250001131 | Torx Truss PT K40 x 12 |
| 540 | 705013943 | Acoustic Foam, Storage Compartment |
| 600 | 705013110 | Center Front Fairing |
| 700 | 708002641 | Driver Seat |
| 800a | 705013197 | Upper Rear Fender |
| 800b | 705013619 | LH Cover |
| 800c | 705013620 | RH Cover |
| 800d | 219400800 | Rear Frame |
| 800e | 704907499 | Warning Decal, Passenger |
| 800f | 250000874 | Torx Truss M8 X 25 |
| 800g | 250000995 | Torx-truss M/s M6 X 10 |
| 800h | 293730084 | Rivet, Plastic |
| 2000 | 705014119 | Large Shoulder Nut M6 |
| 2010 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 2020 | 250000807 | Torx Truss Screw M6 X 25 |
| 2025 | 234062670 | Stainless Steel Flat Washer |
| 2030 | 250000721 | Torx Truss Screw M6 X 16 |
| 7600a | 293150230 | Tuflok Plastic Rivet |
| 7600b | 250001034 | Torx-Truss Screw K40 X 10 |
| 7600c | 705013475 | Pivot |
| 7600e1 | 704907056 | Decal Aesthetic Notice |
| 7600f | 705012727 | Deep Black, Upper Fairing |
