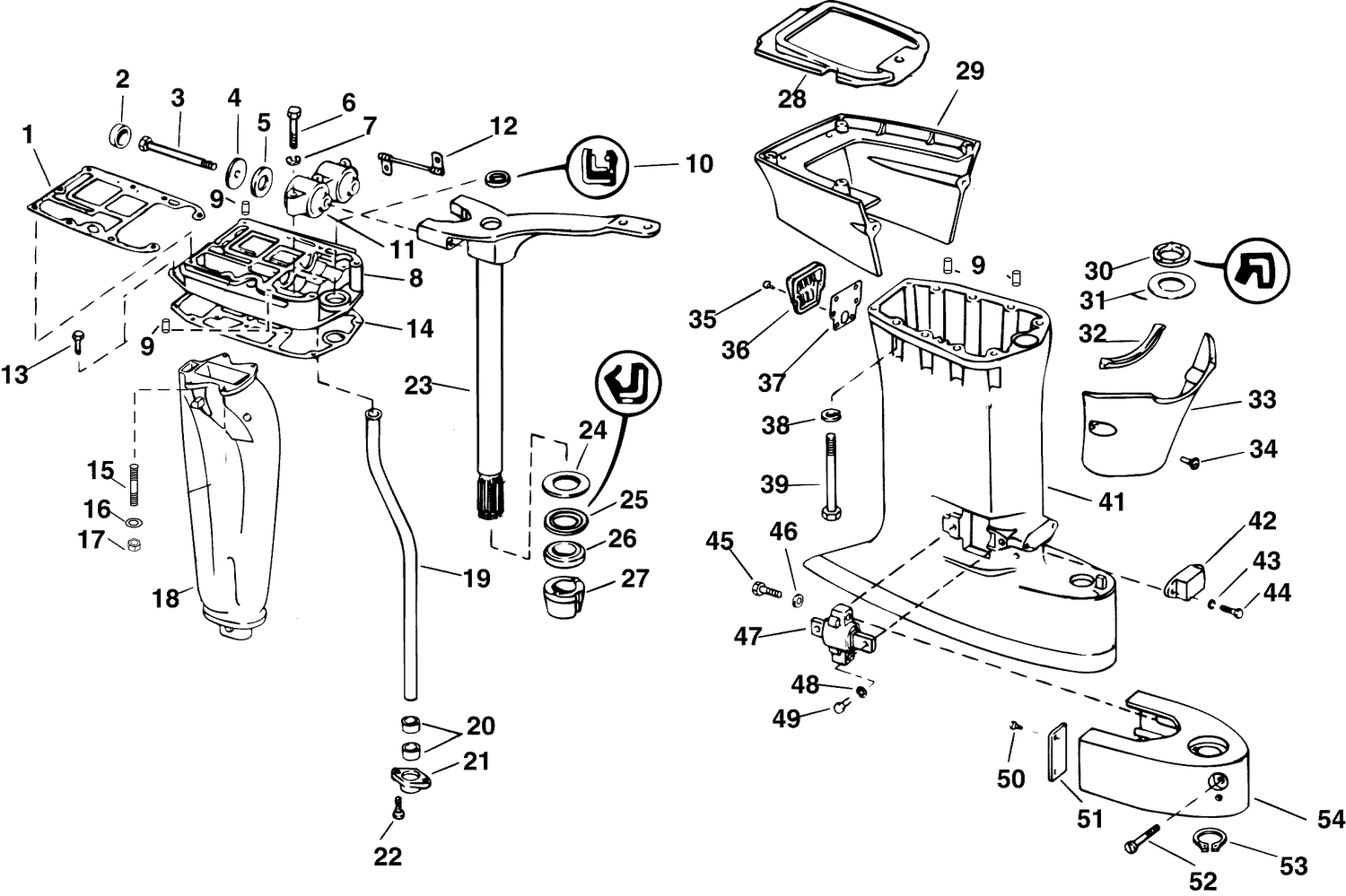

| Ref | Part Number | Description |
|---|
| 2 |
0313581 |
BUMBER, Mount screw |
| 3 |
0340548 |
SCREW, Mount |
| 4 |
0321232 |
RETAINER WASHER |
| 5 |
0313580 |
WASHER |
| 6 |
0306423 |
BOLT |
| 8 |
5005577 |
ADAPTER & SEAL, Exhaust housing |
| 11 |
0436470 |
MOUNT, Upper |
| 12 |
0582494 |
GROUND STRAP |
| 13 |
0309705 |
SCREW |
| 14 |
0351019 |
GASKET, Adapter to housing |
| 15 |
0351491 |
STUD, Adapter to outer housing |
| 16 |
0351484 |
SPACER |
| 17 |
0328742 |
NUT |
| 18 |
0336259 |
EXH. HOUSING, Inner |
| 19 |
0341552 |
WATER TUBE |
| 20 |
0332363 |
GROMMET, Tube to adapter |
| 21 |
0315860 |
COVER WATER TUBE |
| 23 |
0390535 |
ARM & SHAFT ASSY., Long |
| 24 |
0318295 |
THRUST WASHER, Upper |
| 25 |
0317776 |
SEAL |
| 26 |
0317415 |
THRUST RING, Friction |
| 27 |
0317412 |
BUSHING, Upper |
| 28 |
0332173 |
SEAL, Adapter to exh. hsg. |
| 29 |
0340785 |
COVER, Exh. hsg., rear |
| 30 |
0318298 |
SEAL, Lower |
| 31 |
0318296 |
THRUST WASHER, Lower |
| 32 |
0334209 |
SEAL, Exhaust housing cover, front |
| 33 |
0350796 |
COVER, Exhaust housing, front This part replaces 0340786. |
| 35 |
0305143 |
SCREW, By-pass cover |
| 36 |
0315864 |
COVER, Exhaust relief |
| 37 |
0329826 |
COVER, Relief cover |
| 39 |
0324812 |
SCREW, Exh. hsg. to powerhead |
| 41 |
5005578 |
EXH. HOUSING & PIN ASSY, Outer |
| 42 |
0383961 |
MOUNT, Thrust |
| 44 |
0329894 |
SCREW |
| 45 |
0316109 |
VIS, levier vers support |
| 47 |
0388411 |
RUBBER MOUNT, Lower |
| 49 |
0552940 |
SCREW, Stern bracket |
| 50 |
0316233 |
SCREW, Cover to bracket |
| 53 |
0318307 |
CLAMP,Cable casing guide |
| 54 |
0340783 |
MOUNT BRACKET |
