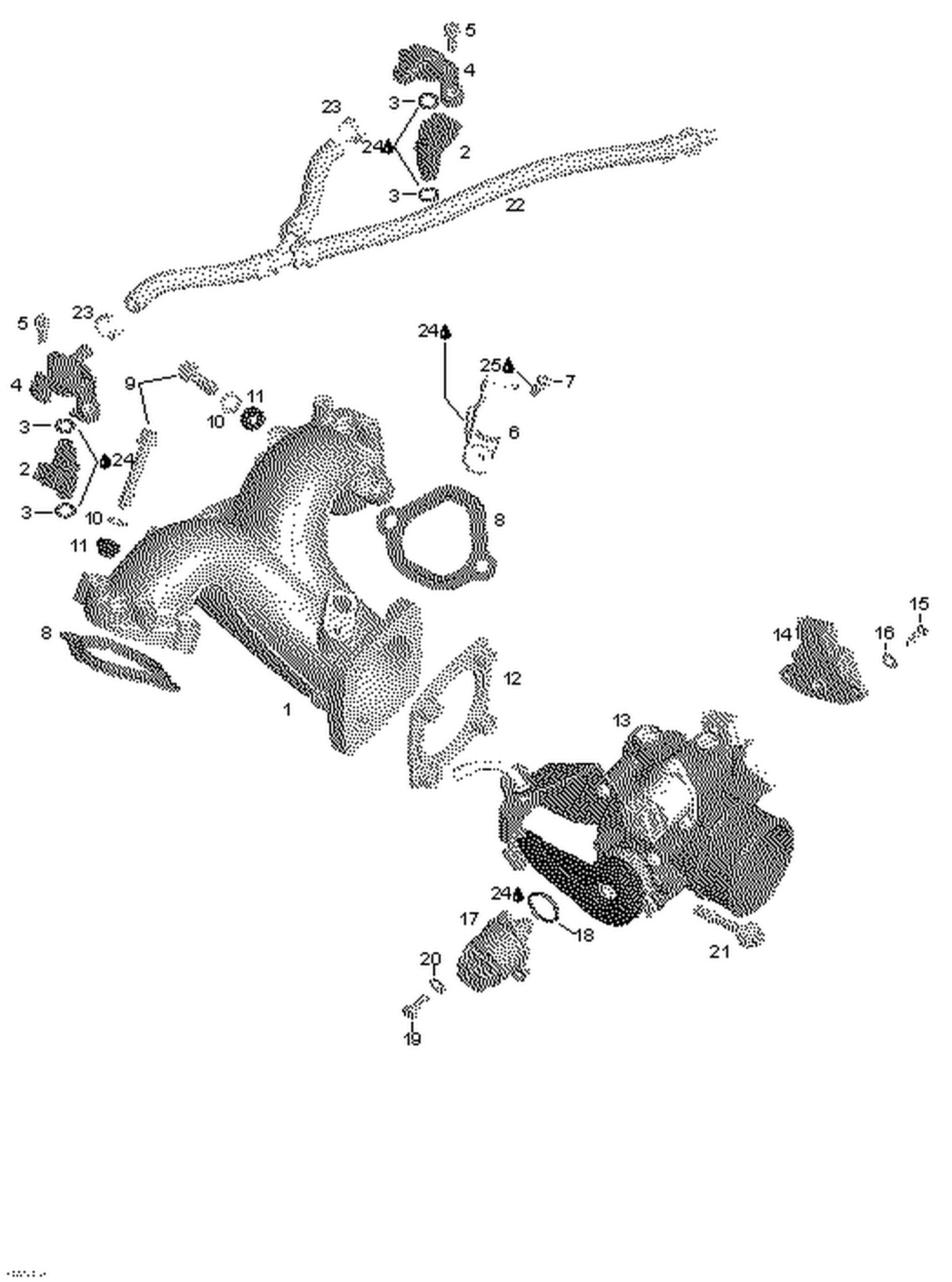

| Ref | Part Number | Description |
|---|
| 1 |
420867940 |
AIR INLET MANIFOLD - Call your local BRP dealership |
| 3 |
420631220 |
O-Ring |
| 4 |
420874410 |
Fuel rail |
| 5 |
420440162 |
Flanged Torx Screw M6 X 16 |
| 6 |
270600040 |
Pressure Sensor This part replaces 420274055. |
| 7 |
420440162 |
Flanged Torx Screw M6 X 16 |
| 8 |
420950690 |
Gasket |
| 9 |
420440472 |
SCREW M8 X 45 - Call your local BRP dealership |
| 10 |
420944038 |
WASHER - Call your local BRP dealership |
| 11 |
420660190 |
RUBBER SLEEVE - Call your local BRP dealership |
| 12 |
420950792 |
Rubber gasket |
| 14 |
Not |
Available As Spare Part - Potentiometer |
| 15 |
Not |
Available As Spare Part - Screw |
| 16 |
Not |
Available As Spare Part - Washer |
| 17 |
420665941 |
Idle Bypass Valve This part replaces 420963055. |
| 18 |
420631780 |
O-ring |
| 19 |
420440911 |
Screw M5 x 16 |
| 20 |
420845710 |
Snap ring |
| 21 |
420440568 |
Hex. Distance Screw M6 X 30.5 This part replaces 420440307. |
| 22 |
420874562 |
Fuel hose |
| 23 |
420851458 |
Clamp |
| 24 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
