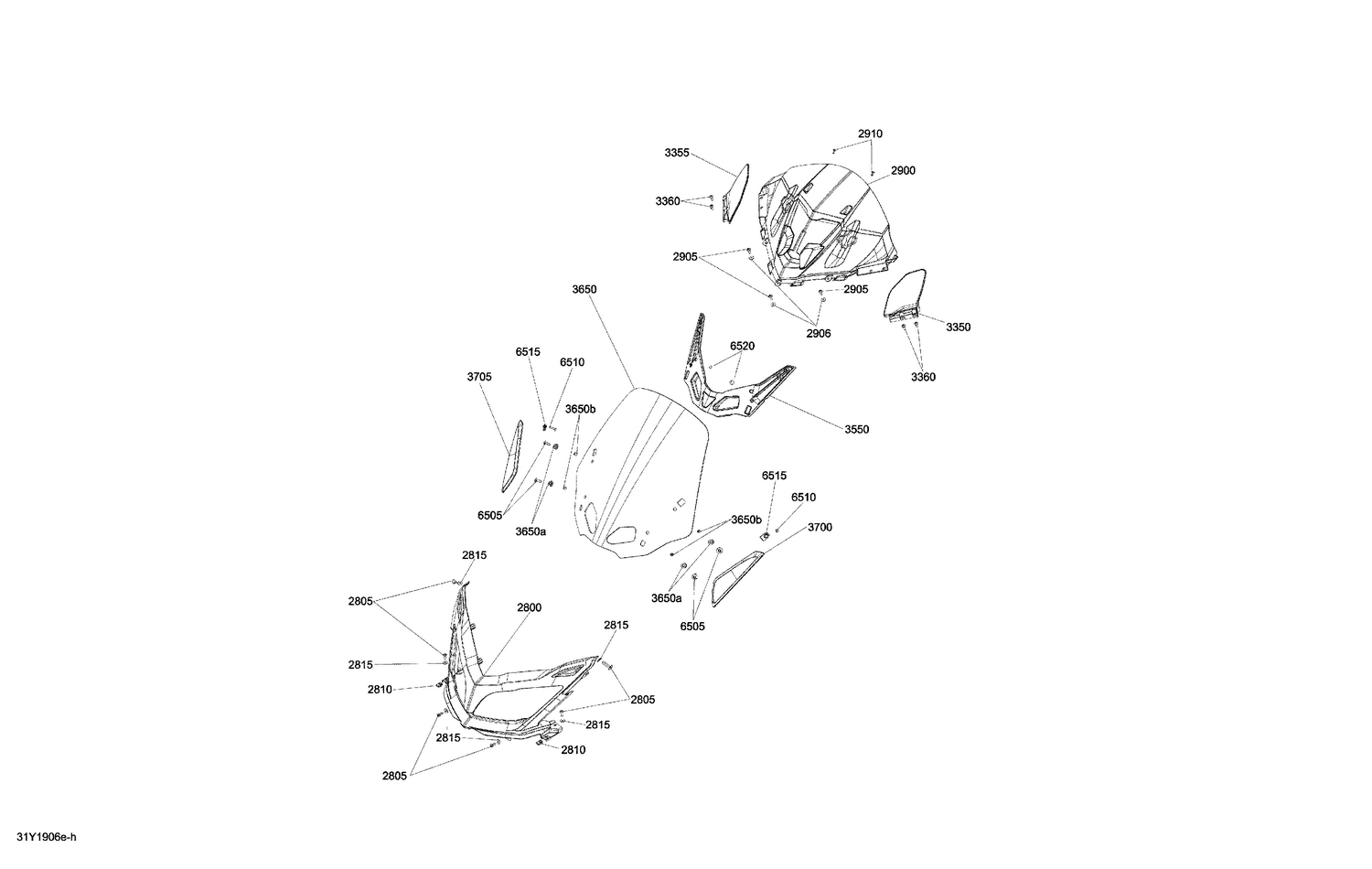

09- System Console - Upper Console & Windshield
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 2800 | 705009172 | Vegas White Pearl, Front Console |
| 2800 | 705012000 | Oxford Blue Metallic, Front Console |
| 2800 | 705013494 | Front Console, Phoenix Orange B-424 |
| 2800 | 708400159 | Asphalt Gray, Front Console |
| 2805 | 250000722 | Torx Screw M6 X 20 |
| 2810 | 250100198 | Panel Nut M6 X 1.0 |
| 2815 | 250200164 | Flat washer M6 |
| 2900 | 705006186 | Upper Console |
| 2905 | 250000722 | Torx Screw M6 X 20 |
| 2906 | 250200164 | Flat washer M6 |
| 2910 | 250000742 | Torx Screw M5 X 14 |
| 3350 | 705002841 | LH Upper Air Deflector |
| 3355 | 705002842 | RH Upper Air Deflector |
| 3360 | 250000712 | Torx Screw M6 X 20 |
| 3550 | 708400223 | Carbon Black, Windshield Support |
| 3650a | 705003756 | Windshield Grommet |
| 3650b | 705005756 | Sleeve |
| 3700 | 705007411 | Black Deep, LH Windshield Cap |
| 3705 | 705007412 | Black Deep, RH Windshield Cap |
| 6505 | 250000350 | Torx Truss Screw M6 X 20 |
| 6510 | 250000455 | Torx Screw M5 X 25 |
| 6515 | 250100176 | Panel Nut M5 X 0.8 |
