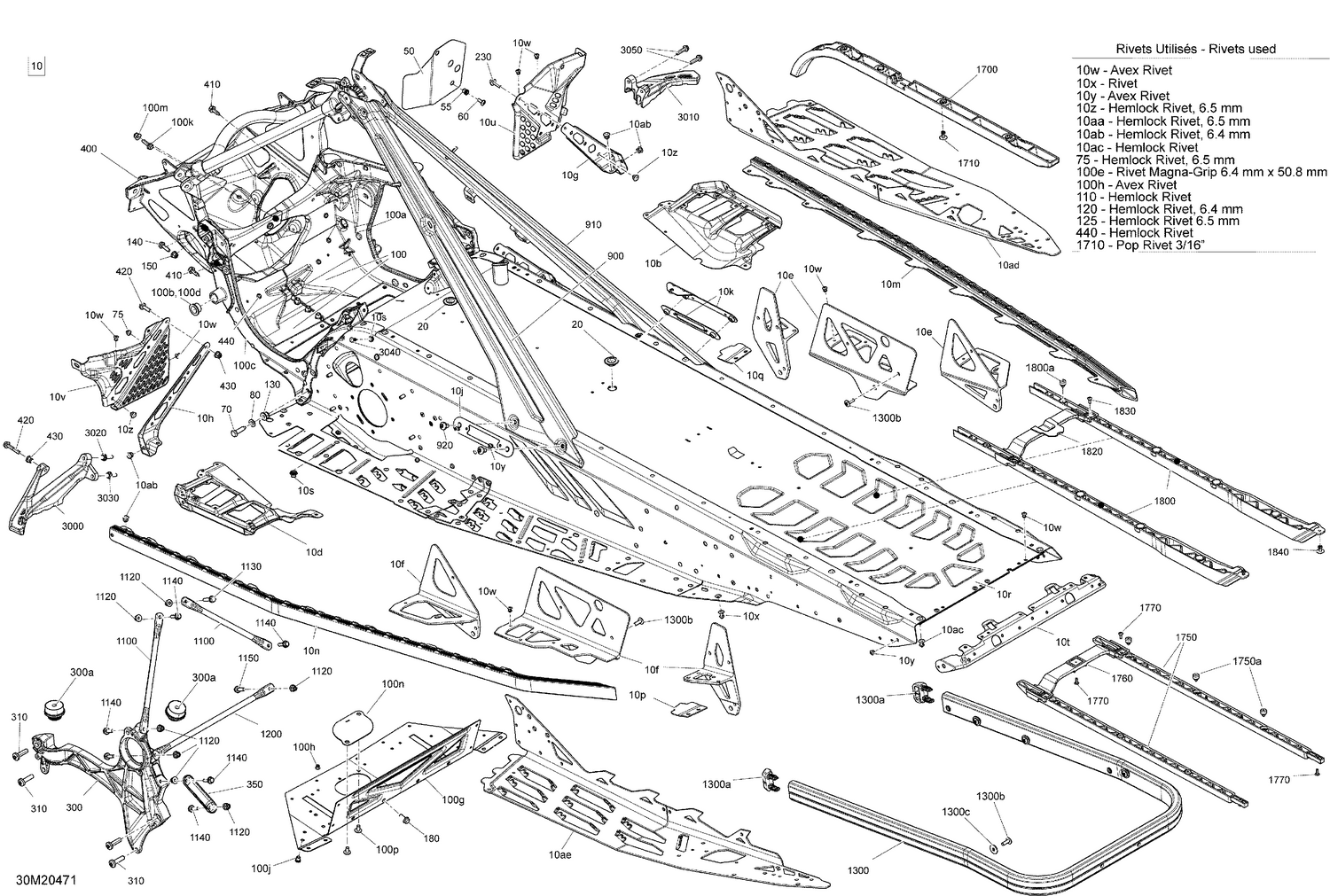

| Ref | Part Number | Description |
|---|
| 10aa |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10ab |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10ac |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 10ad |
XXX |
Not Available As Spare Parts |
| 10ae |
XXX |
Not Available As Spare Parts |
| 10c |
518330738 |
Deep Black, RH Footrest Reinforcement |
| 10d |
518331523 |
Deep Black, LH Footrest Reinforcement |
| 10e |
518334405 |
RH Rear Suspension Support This part replaces 518330095. |
| 10f |
518334404 |
LH Rear Suspension Support This part replaces 518330094. |
| 10g |
518331253 |
Stirrup Reinforcement |
| 10h |
518331560 |
Deep Black, LH Chasssis Reinforcement |
| 10j |
518330299 |
LH Member Fixation Plate |
| 10k |
518331745 |
RH Under Chassis Reinforcement This part replaces 518330300. |
| 10m |
518328451 |
RH Roller |
| 10n |
518328452 |
LH Roller |
| 10p |
XXX |
Not Available As Spare Parts |
| 10q |
XXX |
Not Available As Spare Parts |
| 10r |
518334488 |
Radiator Tunnel 137 Ass'y This part replaces 415130286. |
| 10s |
605636003 |
Clinch Nut M6 Hexsert |
| 10t |
518328990 |
Rear Cap |
| 10u |
518330691 |
RH Footrest |
| 10v |
518334305 |
LH Foot Protector This part replaces 518331559. |
| 10w |
390909100 |
Avex Rivet |
| 10x |
XXX |
Not Available As Spare Parts |
| 10y |
390909200 |
Avex Rivet |
| 10z |
293150096 |
Hemlock Rivet, 6.5 mm |
| 20 |
293730052 |
Black, Plug |
| 50 |
XXX |
Not Available As Spare Parts |
| 55 |
XXX |
Not Available As Spare Parts |
| 60 |
XXX |
Not Available As Spare Parts |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 75 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 80 |
234081410 |
Flat Washer 8 mm |
| 100b |
505073317 |
Leg Cushion |
| 100d |
505073317 |
Leg Cushion |
| 100g |
518329342 |
Bottom Plate |
| 100h |
390909100 |
Avex Rivet |
| 100j |
293450268 |
Insert M5 X 0.8 |
| 100k |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100m |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100n |
518329454 |
Oil Plate |
| 100p |
250000767 |
Torx Truss Screw M6 X 12 |
| 110 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 120 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 125 |
293150120 |
Hemlock Rivet 6.5 mm |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 300a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001060 |
Screw-Pan HD.Torx M8X30 |
| 350 |
518329792 |
Brace Link |
| 400 |
518334551 |
Chassis Suspension Module Ass'y This part replaces 518330570. |
| 410 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 |
| 420 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 440 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 910 |
518330880 |
Black, RH Member Ass'y |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329370 |
Upper Colomn Support |
| 1120 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1130 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 1150 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 1200 |
518329755 |
Center Column Support |
| 1300 |
518330033 |
Rear Bumper |
| 1300a |
XXX |
Not Available As Spare Parts |
| 1300b |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1300c |
224061201 |
Flat Washer |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 1750 |
XXX |
Not Available As Spare Parts |
| 1750a |
XXX |
Not Available As Spare Parts |
| 1760 |
XXX |
Not Available As Spare Parts |
| 1770 |
XXX |
Not Available As Spare Parts |
| 1800 |
XXX |
Not Available As Spare Parts |
| 1800a |
XXX |
Not Available As Spare Parts |
| 1820 |
XXX |
Not Available As Spare Parts |
| 1830 |
XXX |
Not Available As Spare Parts |
| 1840 |
XXX |
Not Available As Spare Parts |
| 3000 |
XXX |
Not Available As Spare Parts |
| 3010 |
XXX |
Not Available As Spare Parts |
| 3020 |
XXX |
Not Available As Spare Parts |
| 3030 |
XXX |
Not Available As Spare Parts |
| 3040 |
293730079 |
Dart |
