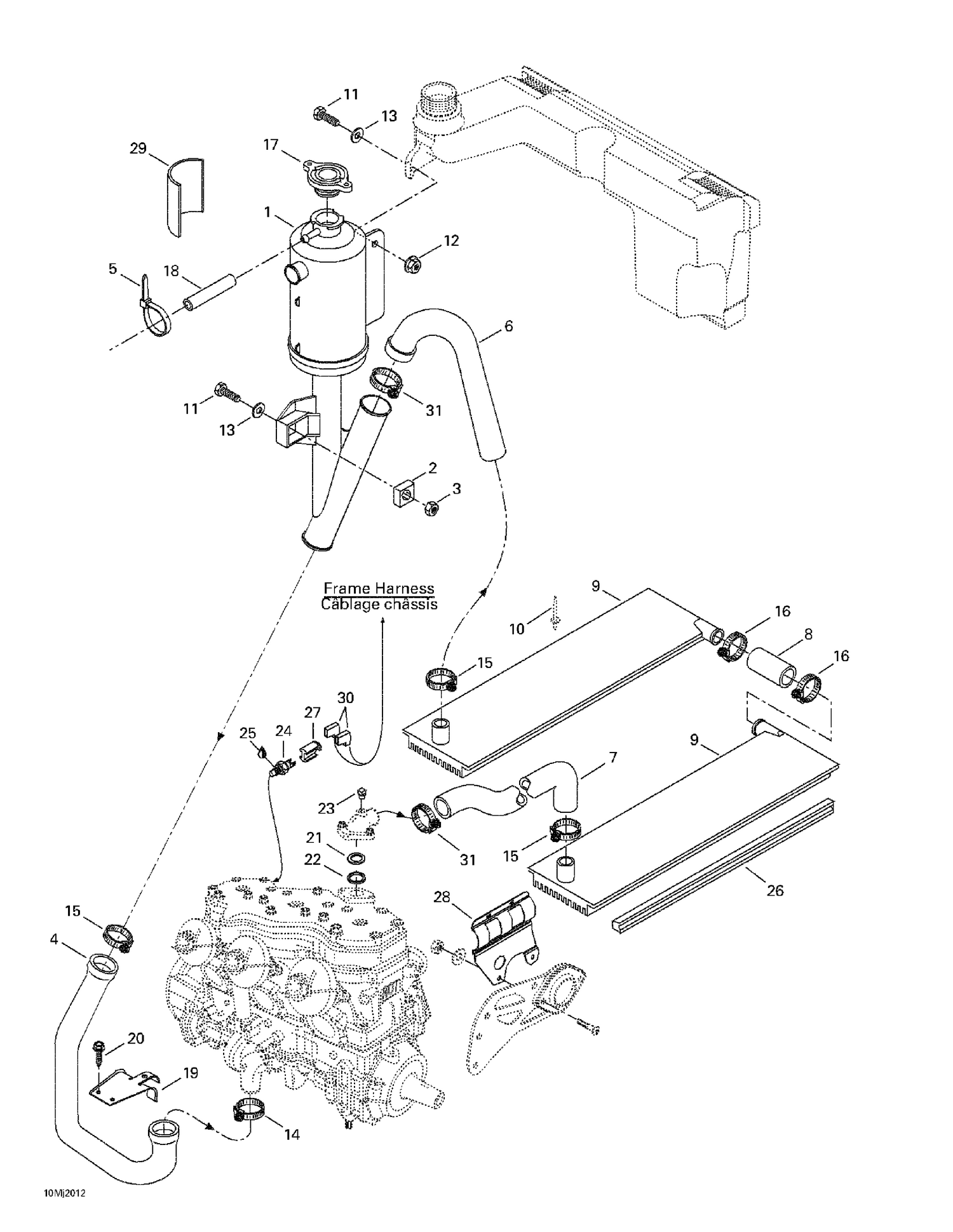

01- Cooling System
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 232561600 | Hex. Elastic Stop Nut M6 |
| 4 | 509000026 | Engine Inlet Hose |
| 5 | 414115200 | Tie-Rap 180 mm |
| 6 | 415047000 | Radiator Outlet Hose |
| 7 | 415047100 | RADIATOR INLET HOSE - Call your local BRP dealership |
| 8 | 414795800 | Radiator Hose |
| 9 | 517280510 | RH Radiator |
| 10 | Not | Available As Spare Part - Rivet |
| 11 | 207162544 | Hex. Screw M6 X 25 |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 224061121 | Flat Washer |
| 14 | 293650098 | Norma Gear Clamp |
| 15 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 16 | 408803400 | Clamp Tridon |
| 17 | 509000187 | Pressure Cap This part replaces 414684700. |
| 18 | 219704410 | Polyurethane Hose 10000Mm Long |
| 19 | 509000037 | Hose Protector |
| 20 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 21 | 420927745 | RETAINING DISK - Call your local BRP dealership |
| 22 | 420931270 | SEALING RING - Call your local BRP dealership |
| 23 | 420240480 | PLUG SCREW - Call your local BRP dealership |
| 24 | 414728700 | Temperature Sensor |
| 25 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 26 | 415056500 | Radiator Protector |
| 27 | 515175297 | Connector Plug |
| 28 | 509000042 | HOSE PROTECTOR - Call your local BRP dealership |
| 29 | 514052952 | Reflective Sheet |
| 30 | 409010300 | Female Terminal |
| 517280511 | LH | Radiator 517280511 |
| 517280511 | Radiateur | GA 517280511 |
