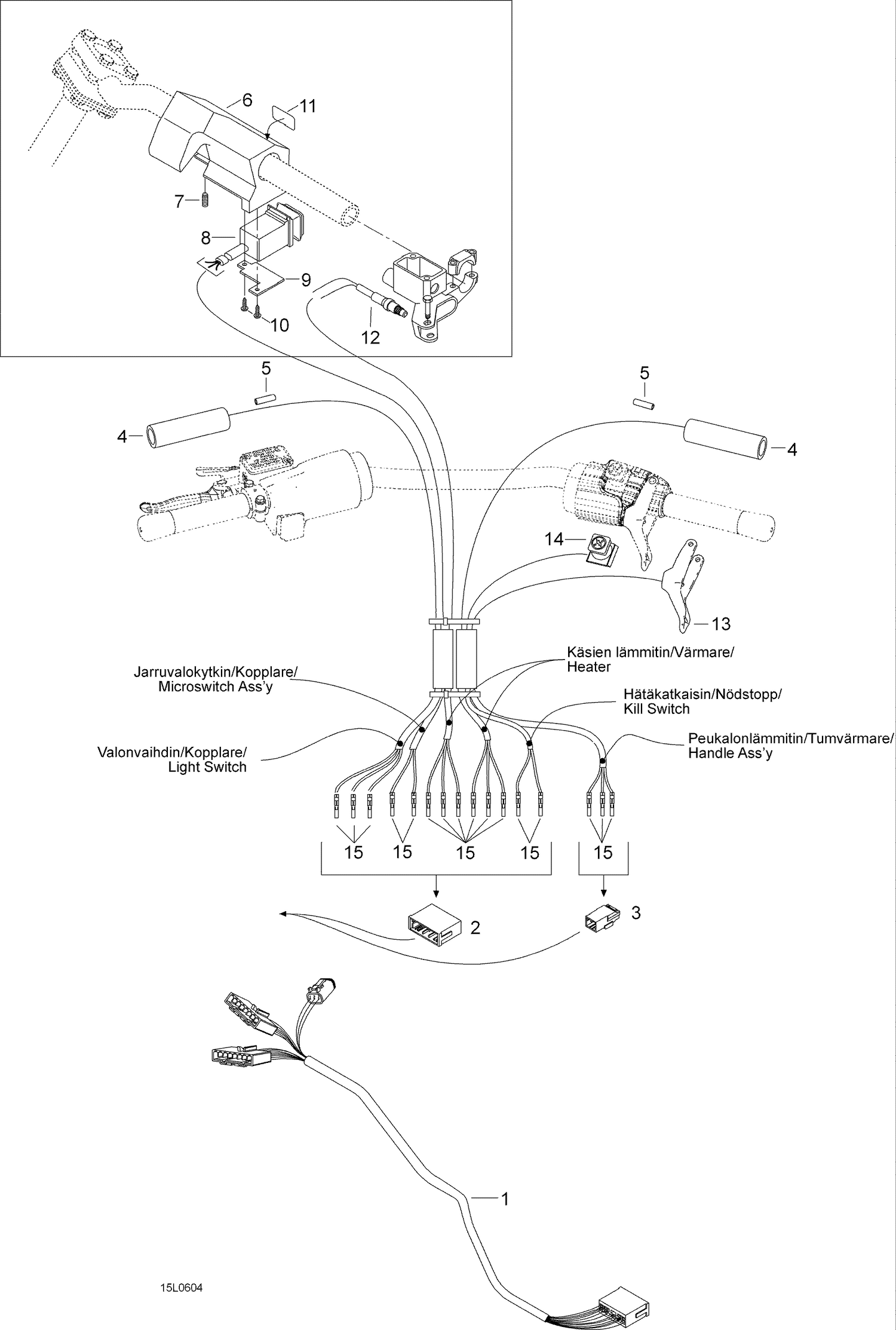

10- Steering Harness
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5248351 | Wiring harness |
| 2 | 42617 | Male connector housing (15 circuit) |
| 3 | 42271 | Male connector housing (3 circuit) |
| 4 | 515175664 | Heater |
| 5 | 39023 | Plastic Tubing d=6, musta - Call your local BRP dealership |
| 6 | 572079500 | DIMMER SWITCH HOUSING - Call your local BRP dealership |
| 7 | 414440800 | Socket Set Screw M8 X 10 |
| 8 | 515175371 | Switch |
| 9 | 517283800 | Housing-plate |
| 10 | 414473200 | Screw |
| 11 | 415025500 | Switch decal |
| 12 | 507032366 | Microswitch ass'y This part replaces 507032334. |
| 13 | 512060214 | Handle Assy This part replaces 512059144. |
| 14 | 515175410 | Switch kill |
