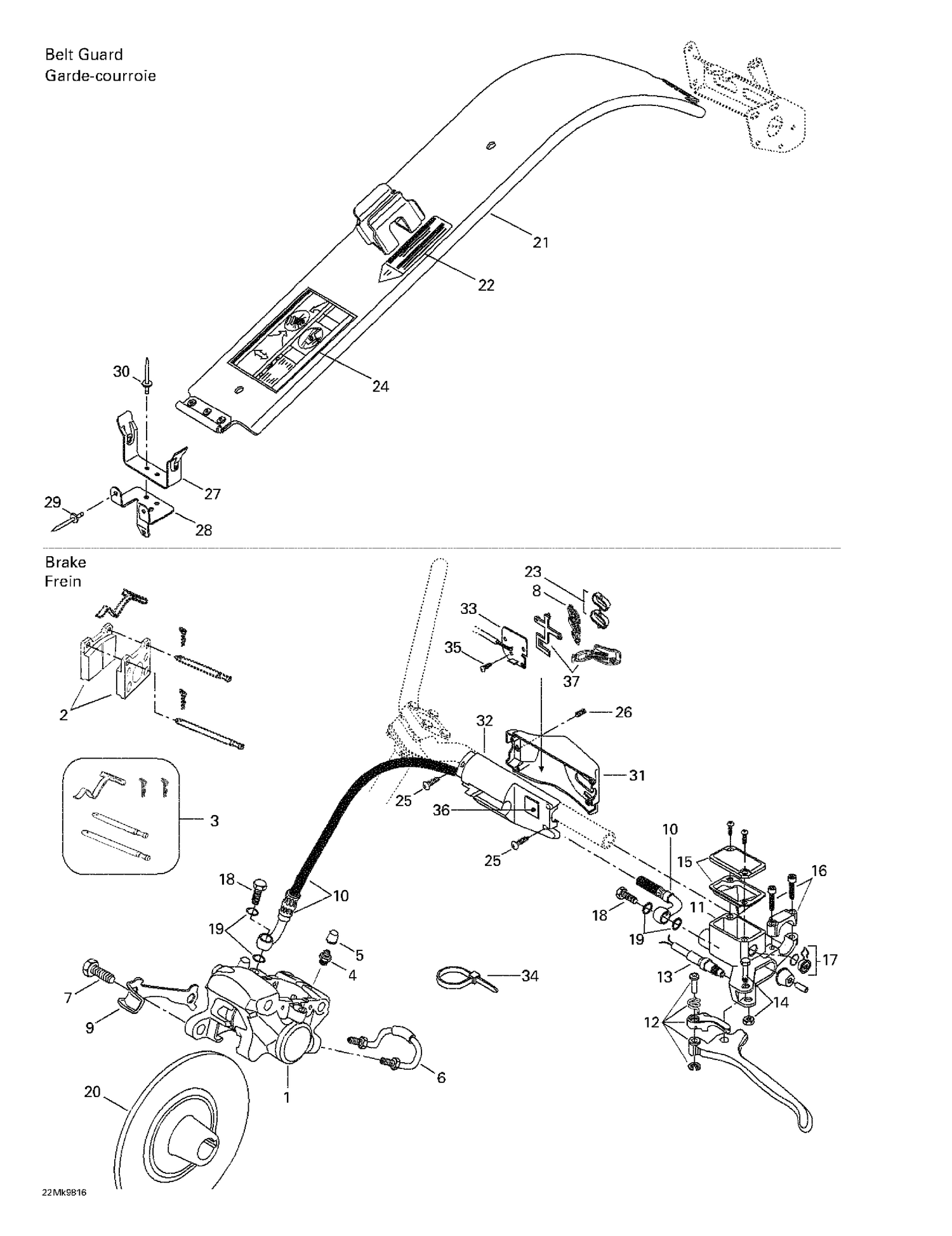

06- Hydraulic Brake And Belt Guard
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415084600 | Brake Pad Kit This part replaces 414990000. |
| 3 | 414990700 | KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership |
| 4 | 414989800 | BLEEDER SCREW - Call your local BRP dealership |
| 5 | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 6 | 414989900 | RIGID TUBING - Call your local BRP dealership |
| 7 | 207103544 | Hex. Screw M10 X 35 This part replaces 222003565. |
| 8 | 415047909 | Silicon Pad |
| 9 | 507031900 | Locking Tab |
| 10 | 415046500 | Hose |
| 12 | 507032428 | LEVER - Call your local BRP dealership This part replaces 415075300. |
| 13 | 507032366 | Microswitch This part replaces 415117500. |
| 14 | 415030000 | Pin Ass'y |
| 15 | 415029900 | Cap |
| 16 | 507032477 | Clamp And Screw Kit This part replaces 415029800. |
| 17 | 414990600 | WINDOW - Call your local BRP dealership |
| 18 | 414920500 | Banjo Bolt |
| 19 | 414920600 | Washer |
| 20 | 507031300 | BRAKE DISK - Call your local BRP dealership |
| 22 | 415028900 | Warning Decal |
| 23 | 415047917 | Switch Kit |
| 25 | 415047913 | Screw |
| 26 | 414440800 | Socket Set Screw M8 X 10 |
| 27 | 518202100 | Belt Guard Bracket |
| 28 | 518317000 | Pulley Guard Support |
| 29 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 30 | 390402200 | Pop Rivet 3/16" |
| 31 | 415089500 | FRONT HOUSING ASS'Y - Call your local BRP dealership |
| 32 | 415047903 | Rear Housing Ass'y |
| 33 | 415127450 | PCB Ass'y |
| 34 | 414115200 | Tie-Rap 180 mm |
| 35 | 415047912 | Screw M3 |
| 36 | 415047915 | Spacer (neoprene) |
