Parts Catalog

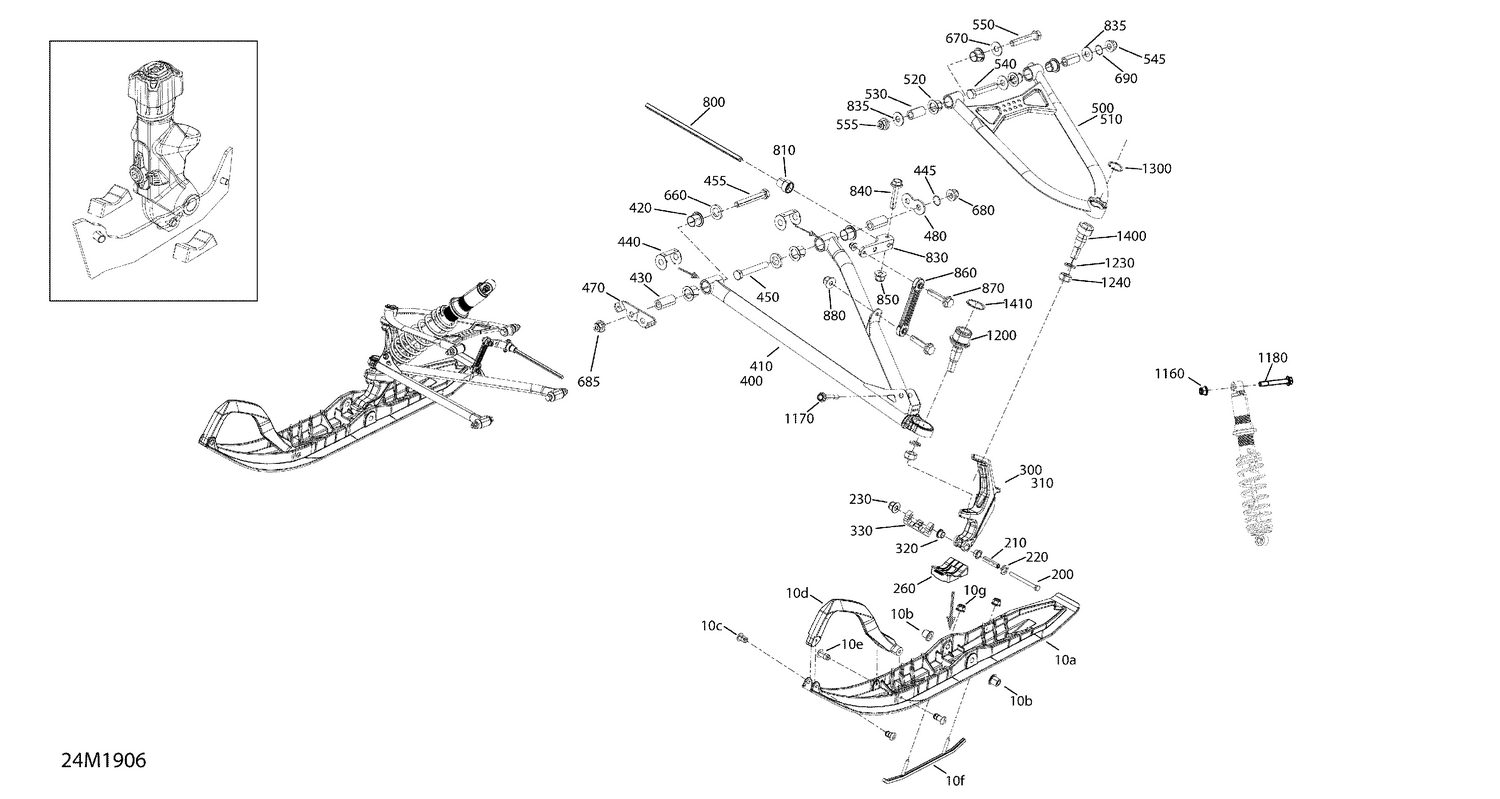

07- Front Suspension And Ski - XRS

Parts (49)

Ref	Part Number	Description
10b	505071781	Ski Bushing
10c	505071812	Retainer 17mm long
10e	505072133	Retainer 23mm Long
200	250000703	Hex. Screw M10 X 130
210	505073691	Ski Axle
220	503192496	Washer
230	233201464	Hex. Flange Elastic M10 x 1.5
260	505072594	Ski Stopper
320	505072690	Leg Bushing
400	505074493	Arm-Lower Right This part replaces 505073720.
410	505074492	LH Lower Arm This part replaces 505073714.
420	505072208	Bushing
440	505072634	Wear Plate
445	505072448	O-Ring
450	250001024	Screw Hex. M10 X 70
455	250001024	Screw Hex. M10 X 70
470	505073723	Wear Plate
480	505073844	Plate
500	505073724	LH Upper Arm 42"
510	505073728	RH Upper Arm 42"
520	505072250	Bushing
530	505072143	Sleeve
540	250001023	Screw Hex. M10 X 60
545	250100165	Hex. Flange Elastic Nut M10
550	250001023	Screw Hex. M10 X 60
555	250100165	Hex. Flange Elastic Nut M10
660	503189564	Washer
670	505072392	Washer
680	250100165	Hex. Flange Elastic Nut M10
685	250100165	Hex. Flange Elastic Nut M10
690	505072448	O-Ring
800	505074719	Stabiliser This part replaces 505073819.
810	505072064	Bushing
830	505073731	Stabilisator Lever
835	505072392	Washer
840	207663056	Hex. Flange Screw M6 X 1.0 X 30
850	233261466	Hex. Flange Elastic Nut M6
860	505072204	Sway Bar Double Joint Link
870	207663056	Hex. Flange Screw M6 X 1.0 X 30
880	233261466	Hex. Flange Elastic Nut M6
1160	233281416	Hex. Elastic Flange Nut M8
1170	250000824	Hex. Flange Screw M8 X 58
1180	250000824	Hex. Flange Screw M8 X 58
1200	505074009	Ball Joint
1230	503192491	Washer
1240	232521464	Hex Elastic Nut M12 X 1.25
1300	293370070	Circlip
1400	505072913	Upper Ball Joint
1410	293370098	Snap Ring
