| Ref | Part Number | Description |
|---|
| 1 |
619100011 |
Screw Torx |
| 2 |
Not |
Available As Spare Part - Cam |
| 3 |
619100018 |
Circlip |
| 4 |
Not |
Available As Spare Part - Spider |
| 5 |
415128853 |
Roller |
| 6 |
619100019 |
Thrust washer |
| 7 |
619100020 |
Circlip |
| 8 |
Not |
Available As Spare Part - Spring 180-260Nm. |
| 9 |
Not |
Available As Spare Part - Thrust washer |
| 10 |
619100022 |
Plain Washer |
| 11 |
Not |
Available As Spare Part - Sliding flange ass'y |
| 12 |
Not |
Available As Spare Part - Thrust washer |
| 13 |
Not |
Available As Spare Part - Fixed flange ass'y |
| 14 |
619100014 |
Hex. screw ass'y M6 x 30 |

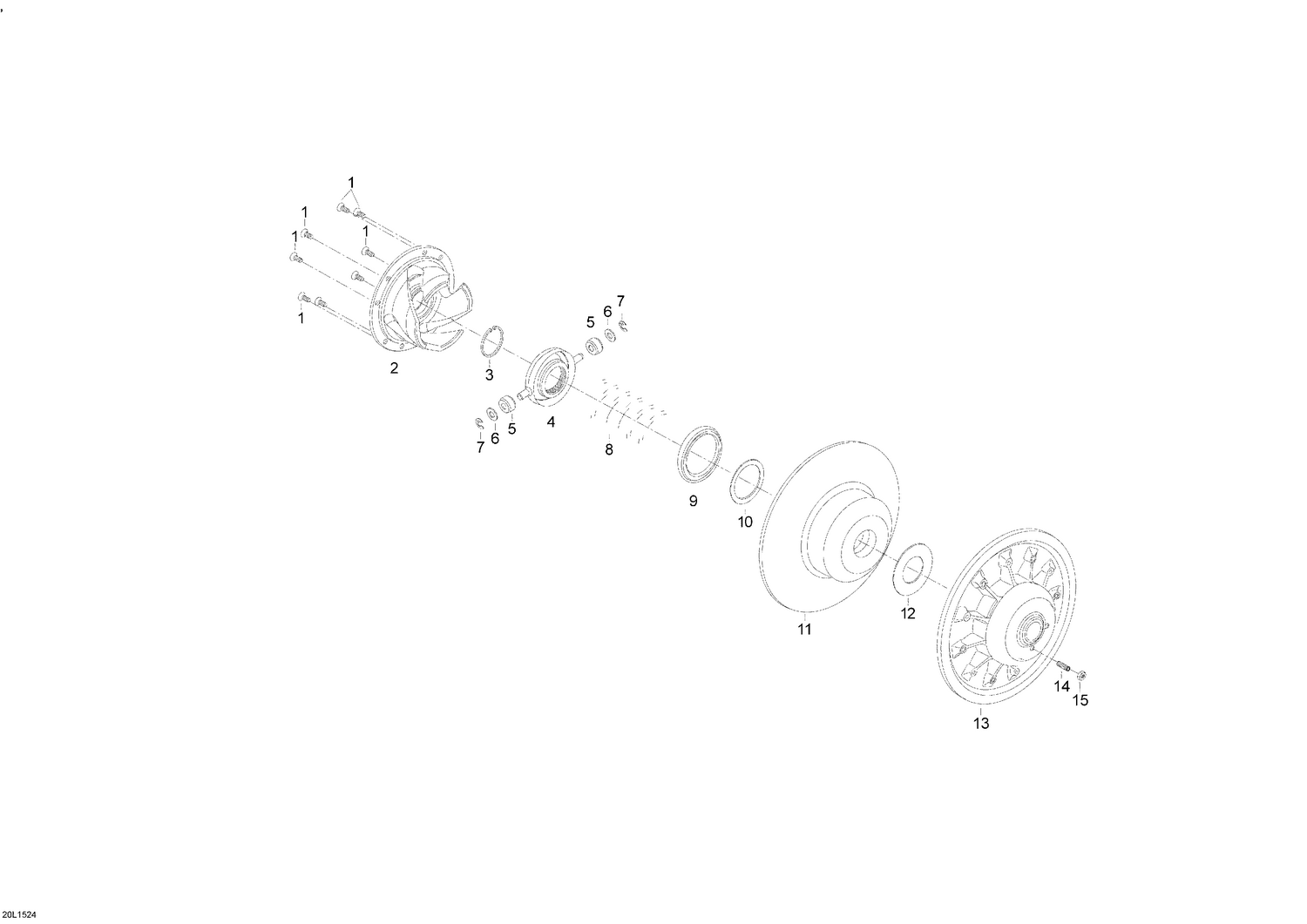

| 417127483 |
Driven |
Pulley Ass'y (Team 422542) 417127483 |
