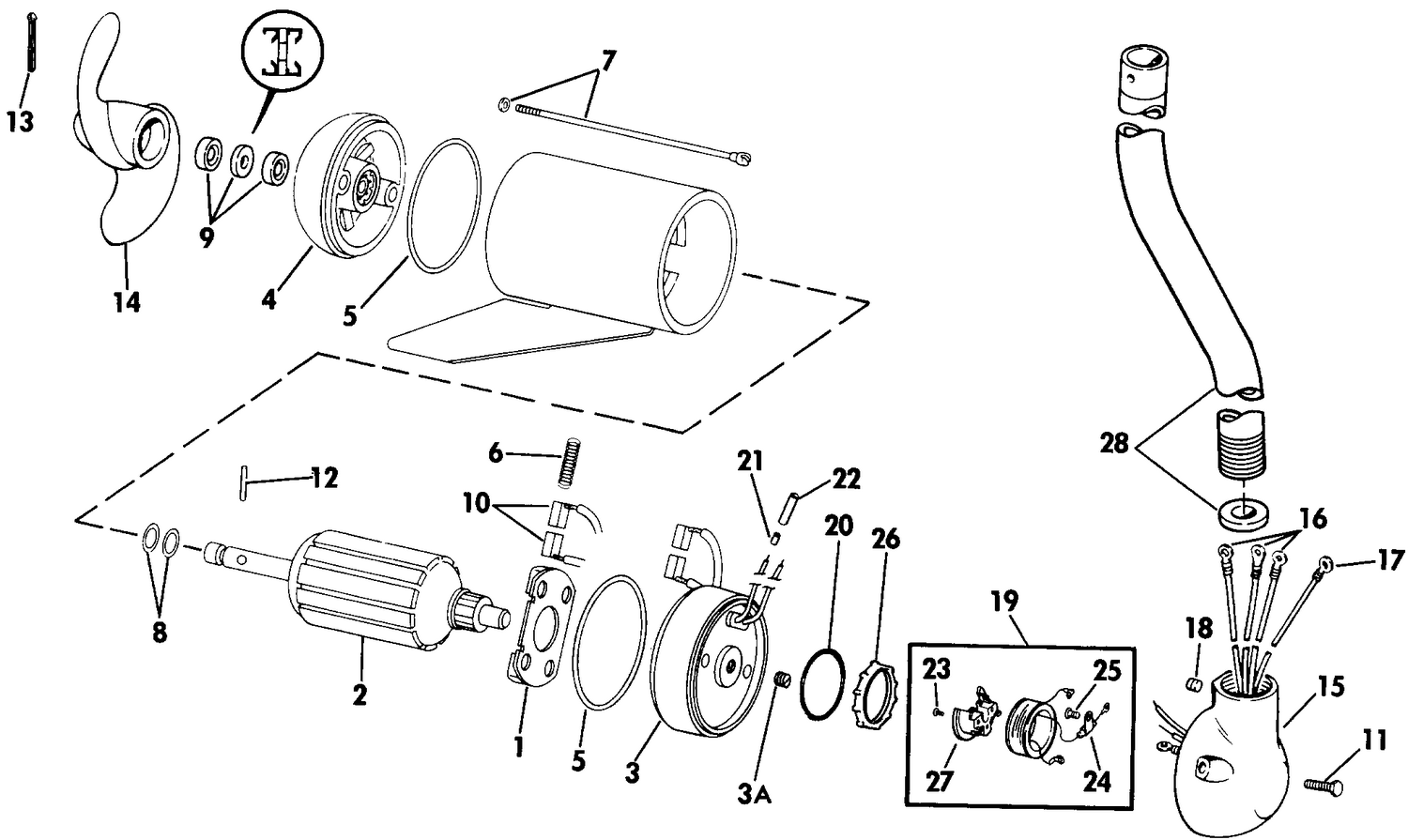

| Ref | Part Number | Description |
|---|
| 1 |
0392940 |
BRUSH HOLDER & SCREWS |
| 2 |
0327567 |
ARMATURE ASSY |
| 2 |
0433610 |
ELECTRIC MOTOR ASSY., 12v (includes 21, 22 & 24) This part replaces 0394721. |
| 3 |
0392267 |
HEAD ASSY., Comm. end, (includes brushes) |
| 3 |
0394722 |
HEAD ASSY., Comm. end |
| 3A |
0330114 |
SET SCREW, End head |
| 4 |
0433612 |
HEAD ASSY., Drive end This part replaces 0392268. |
| 7 |
0398259 |
THRU BOLT PACKAGE This part replaces 0392264. |
| 8 |
0392266 |
THRUST WASHER PACKAGE |
| 9 |
0393429 |
SEAL PACAKGE ASSY.,Drive end head |
| 10 |
0582407 |
REPLACEMENT BRUSH SET |
| 11 |
0326968 |
SCREW, Adapter to motor |
| 12 |
0333513 |
DRIVE IN, Propeller This part replaces 0326032. |
| 13 |
0319658 |
COTTER PIN, Prop |
| 14 |
0124709 |
PROP., 8 3/4 x 4 weedless This part replaces 0327530. |
| 15 |
0432976 |
ADAPTER & O-RING PKG., 36 in. length This part replaces 0394776. |
| 15 |
0432977 |
ADAPTER & O-RING PKG., 42 in. length This part replaces 0394777. |
| 18 |
0321223 |
SET SCREW |
| 19 |
0398545 |
RESISTOR ASSY This part replaces 0393170. |
| 21 |
0320373 |
BUTT SPLICE |
| 24 |
0391651 |
TEMPERATURE SWITCH |
| 25 |
0604986 |
SCREW, Switch |
| 26 |
0326969 |
SPACER, Adapter to motor |
| 27 |
0326907 |
TERMINAL BOARD |
| 28 |
0281068 |
MOTOR TUBE & SEAL PKG |
| 28 |
0328960 |
MOTOR TUBE |
| 0392262 |
0433610 |
ELECTRIC MOTOR ASSY., 12v (includes 21, 22 & 24) This part replaces 0392262. |
