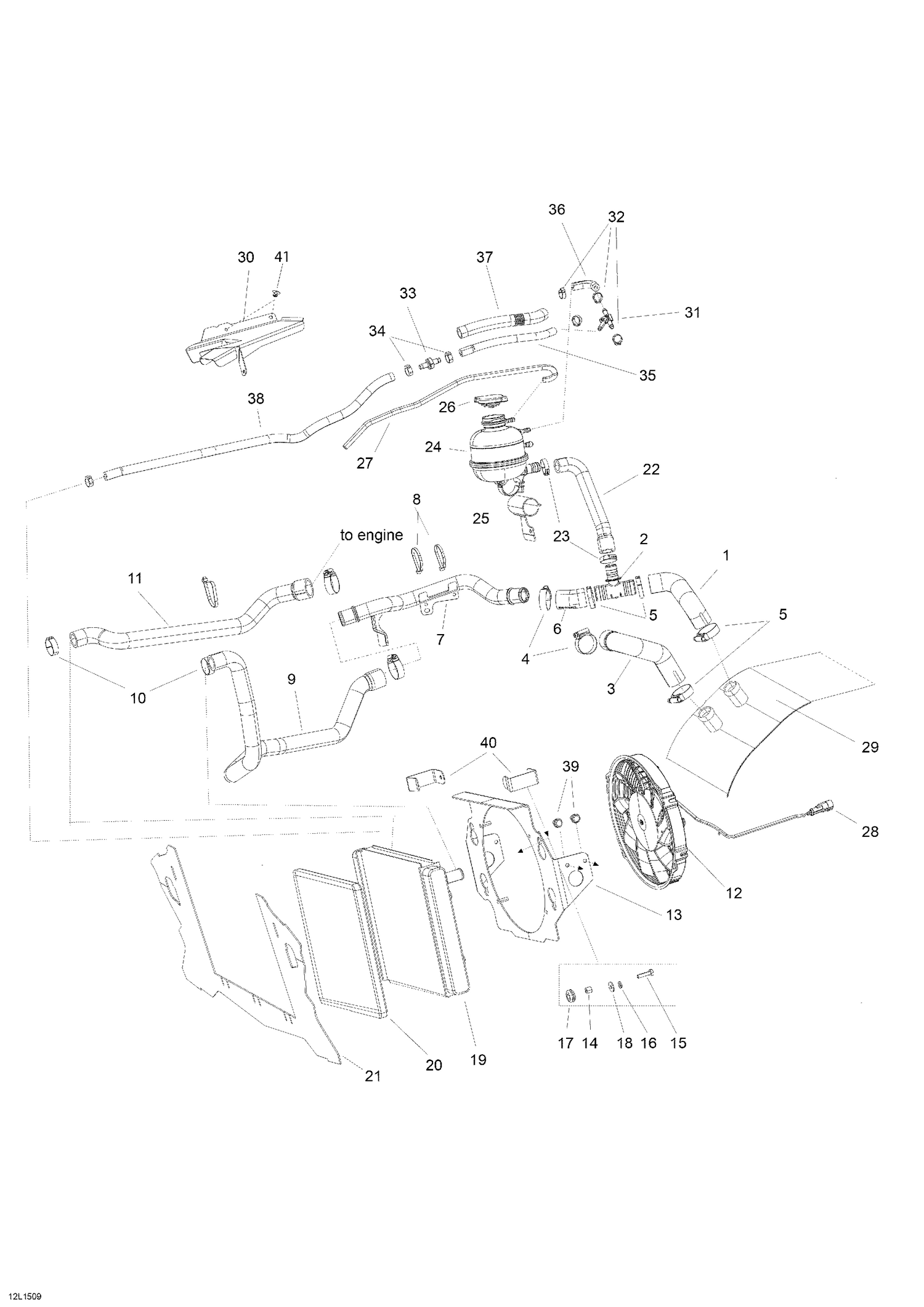

01- Cooling System
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000894 | Hose, T-Fitting->Front radiator |
| 2 | 509000372 | T-Fitting |
| 3 | 509000895 | Hose, Thermostat->Radiator |
| 4 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 5 | 509000181 | Clamp |
| 6 | 509001067 | Engine Inlet Hose This part replaces 509000675. |
| 7 | 509000825 | WATER PIPE - Call your local BRP dealership |
| 8 | 414115200 | Tie-Rap 180 mm |
| 9 | 509000780 | Hose, Front radiator->Air radiator |
| 10 | 293650016 | Clamp |
| 11 | 509000781 | Hose, Front radiator->engine |
| 12 | 509000838 | Cooling Fan |
| 13 | 509000791 | Radiator support |
| 14 | 605453745 | Bushing |
| 15 | 207162044 | Screw-hex.Cap |
| 16 | 20052 | Washer-lock |
| 17 | 709000582 | Grommet This part replaces 293720053. |
| 18 | 234062410 | Flat Washer 6 mm |
| 19 | 509000787 | Radiator |
| 20 | 509000718 | Insulation |
| 21 | 509000700 | Air deflector |
| 22 | 509000663 | Filling hose |
| 23 | 509000442 | Clamp |
| 24 | 509000421 | Tank - coolant |
| 25 | 509000856 | Reservoir support |
| 26 | 509000180 | Radiator Pressure Cap |
| 27 | 276000048 | Hose |
| 28 | 278000220 | Connector |
| 29 | 509000976 | Tunnel radiator |
| 30 | 509000839 | HEAT DEFLECTOR - Call your local BRP dealership |
| 31 | 293710140 | Y-connector |
| 32 | 293650047 | Crimp Clamp, 15.3-706R |
| 33 | 509000153 | Check valve |
| 34 | 293650140 | Clamp |
| 35 | 509001069 | Hose-formed This part replaces 509000765. |
| 36 | 509001070 | Hose This part replaces 509000776. |
| 37 | 415080000 | Protecting tube |
| 38 | 509000407 | Hose |
| 39 | 40870 | HEX. TAPING SCREW - Call your local BRP dealership |
| 40 | 509000703 | Fastening bracket |
