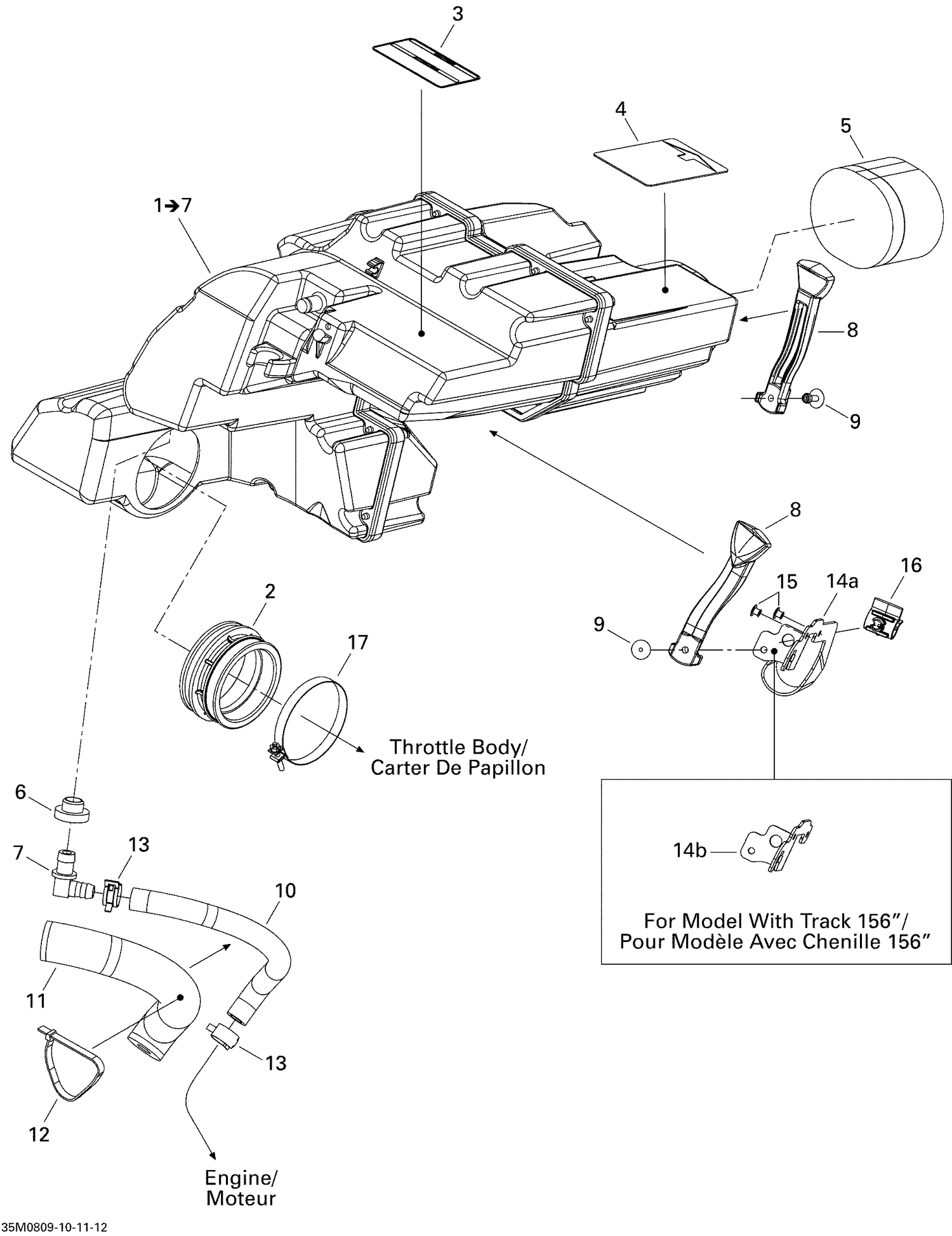

02- Air Intake System ADVENTURE
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000491 | AIR INTAKE ADAPTOR - Call your local BRP dealership |
| 3 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 4 | 516003292 | Warning Label |
| 5 | 508000508 | Air Filter |
| 6 | 707800347 | Grommet This part replaces 570273900. |
| 7 | 414523600 | Elbow Fitting |
| 8 | 517302448 | Panel Latch |
| 9 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 10 | 508000578 | CRANKASE VENT HOSE - Call your local BRP dealership |
| 11 | 508000582 | Insulating Tube |
| 12 | 509000165 | Tie Rap |
| 13 | 293650110 | Norma Clamp |
| 14b | XXX | Not Available As Spare Parts |
| 15 | 390402200 | Pop Rivet 3/16 |
| 16 | 275500528 | Hose Retainer |
