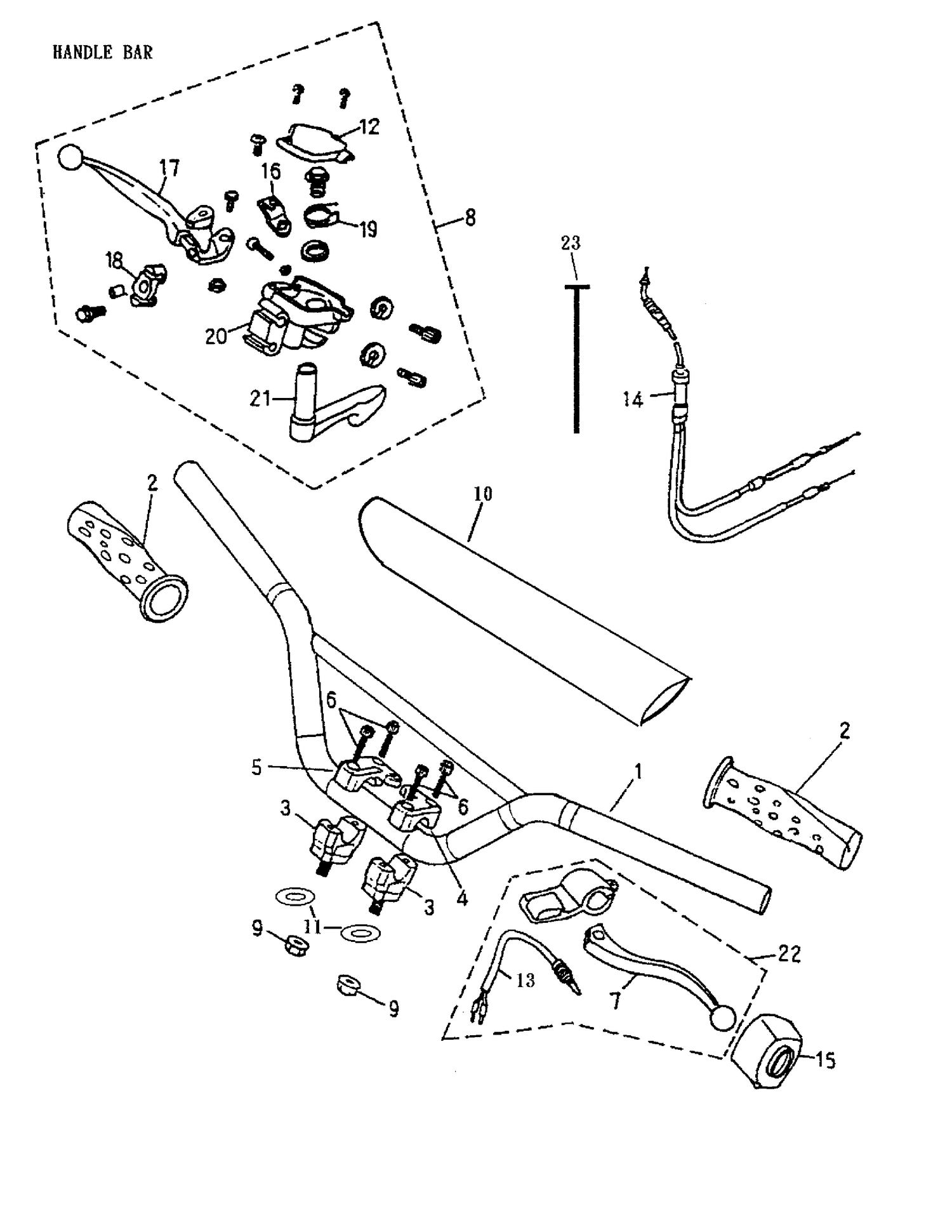

| Ref | Part Number | Description |
|---|
| 1 |
A5310014500C |
HANDLE BAR - Call your local BRP dealership |
| 2 |
A53166101000 |
Handle Grip |
| 3 |
A5310114500A |
HANDLE BAR BOTTOM CLAMP - Call your local BRP dealership |
| 4 |
A5310214500A |
LH.HANDLE BAR CLAMP - Call your local BRP dealership |
| 5 |
A5310314500A |
RH.HANDLE BAR CLAMP - Call your local BRP dealership |
| 6 |
V9100006025LL |
Hexagonal Bolt M6 X 25 This part replaces A9100006025. |
| 7 |
A53178145000 |
LH LEVER - Call your local BRP dealership |
| 8 |
A5317014500A |
RIGHT LEVER ASS'Y - Call your local BRP dealership |
| 9 |
V9035010000010LL |
Nylon Nut M10 This part replaces A9035010000G. |
| 10 |
A53132166000RD |
Cross Bar Sponge Ass'y |
| 11 |
A941051022025G |
PLAIN WASHER - Call your local BRP dealership |
| 12 |
A5317114500A |
LEVER BODY COVER - Call your local BRP dealership |
| 13 |
A35340155000 |
LH.BRAKE SWITCH WIRE - Call your local BRP dealership This part replaces A35345145000. |
| 14 |
A17910145001 |
THROTTLE CABLE - Call your local BRP dealership |
| 15 |
A3520014500A |
LH HANDLE SWITCH ASS'Y - Call your local BRP dealership |
| 16 |
A53174145000 |
THROTTLE CABLE BRACKET - Call your local BRP dealership |
| 17 |
A53175145000 |
RH LEVER - Call your local BRP dealership |
| 18 |
A53173145000 |
CABLE BRACKET - Call your local BRP dealership |
| 19 |
A53184145000 |
THROTTLE LEVER SPRING - Call your local BRP dealership |
| 20 |
A53172145000 |
Lever Bracket |
| 21 |
A53180145000 |
THROTTLE LEVER - Call your local BRP dealership |
| 22 |
A53179155000 |
LHLEVER ASS'Y - Call your local BRP dealership |
