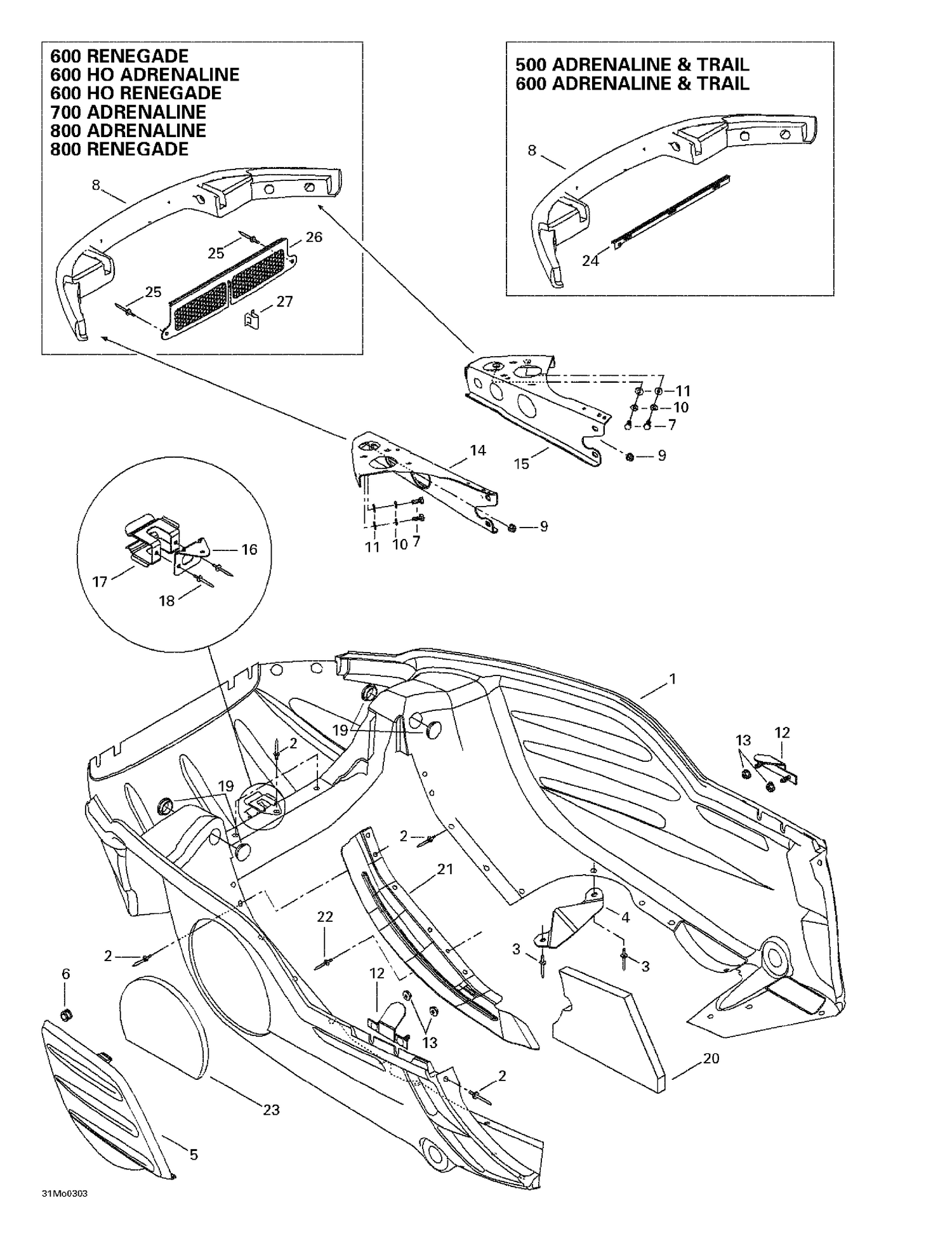

09- Bottom Pan
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 6 | 414036300 | Grommet |
| 7 | 207161444 | Hex. Screw M6 X 14 |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 10 | 234161471 | Lock Washer M6, Black |
| 11 | 224061121 | Flat Washer |
| 12 | 502006645 | LH Bracket |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 14 | 502006597 | LH SUPPORT - Call your local BRP dealership |
| 15 | 502006602 | RH Support |
| 16 | 502006599 | Belt Support |
| 17 | 517281905 | Bracket |
| 18 | 390402400 | Pop Rivet 3/16" |
| 19 | 414916600 | Black, Nylon Cap |
| 20 | 502006558 | Bottom Foam |
| 23 | 502006559 | Bottom Pan Door Foam |
