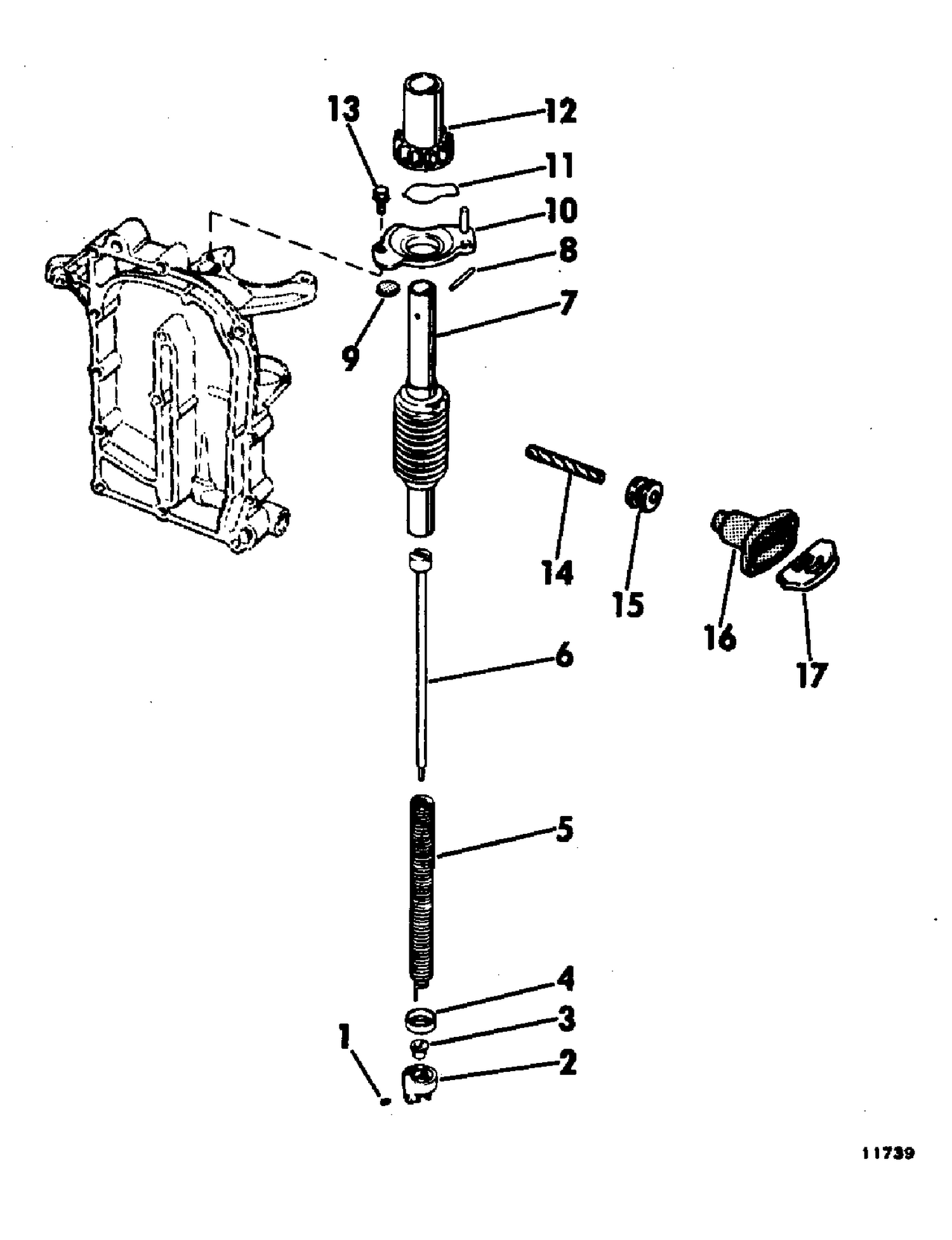

REWIND STARTER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0303245 | ALLEN SCREW |
| 2 | 0314588 | RETAINER, Spring |
| 3 | 0314585 | BUSHING, Retainer |
| 4 | 0309689 | BEARING, Outer |
| 5 | 0314587 | MAIN SPRING STARTER |
| 6 | 0314586 | RETAINER, Spring |
| 7 | 0383118 | SPOOL & SLEEVE ASSY |
| 8 | 0309686 | ROLL PIN |
| 9 | 0309696 | GASKET, Bearing head |
| 10 | 0309708 | BEARING HEAD |
| 13 | 0316530 | ROPE |
| 14 | 0316530 | ROPE |
| 15 | 0311462 | EYELET, Rope to cover |
| 16 | 0313154 | HANDLE |
| 0384604 | 0384604 | REWIND STARTER |
