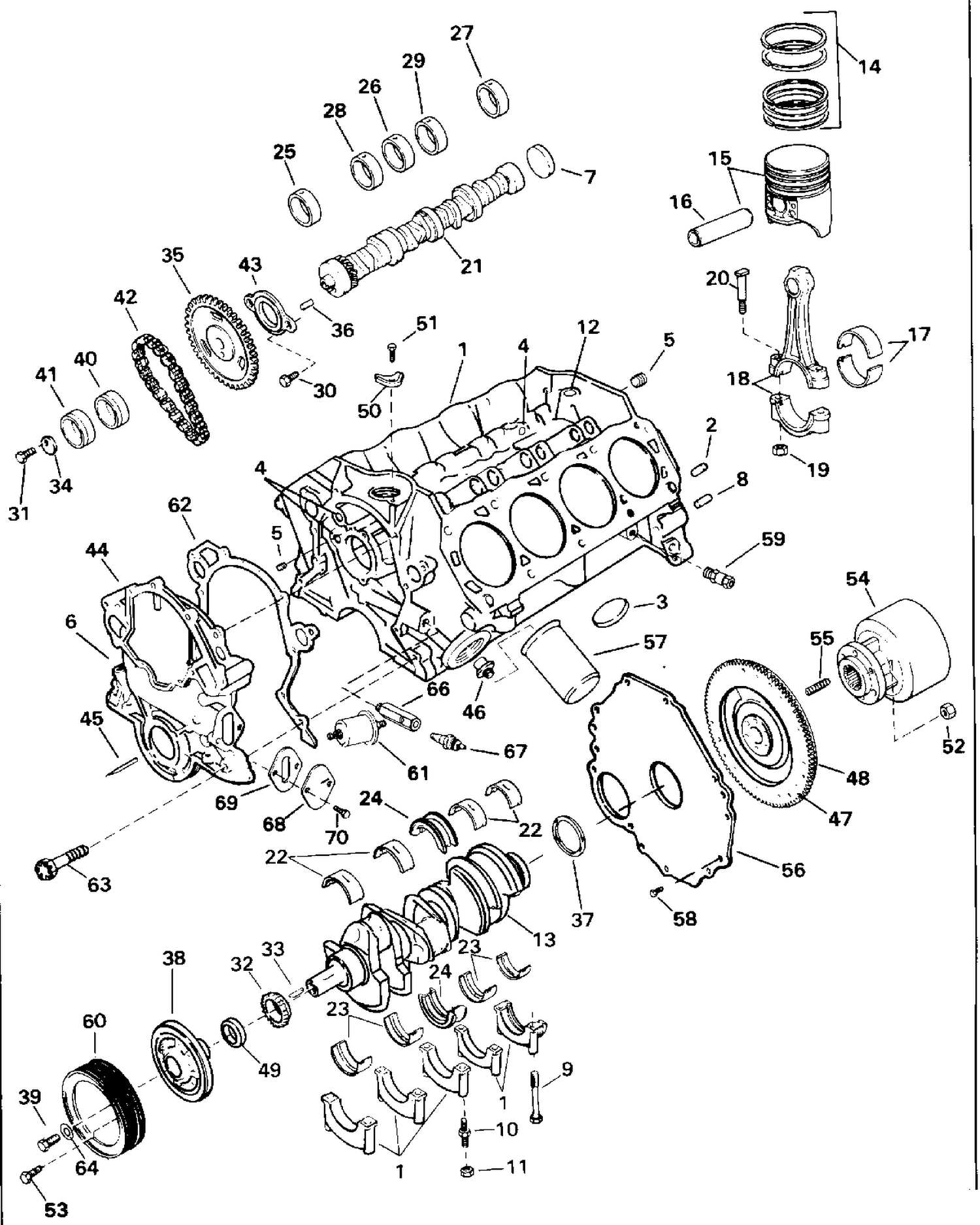

CRANKCASE - 5.8 LITRE

CRANKCASE - 5.8 LITRE

Parts (102)

RefPart NumberDescription
1 3854235 PARTIAL ENGINE
2 3853007 DOWEL, Cylinder head
3 3852650 PLUG, Core hole
4 3853008 PLUG, Oil level hole
5 3853108 PLUG, Oil gallery
6 3853008 PLUG, Oil level hole
7 3852766 PLUG, Rear, cam, standard
7 3853009 PLUG, Rear, cam, 0.60 in. O.S.
8 3853076 DOWEL, Adapter to block
9 3853101 BOLT, Main cap
10 3853102 STUD, Main cap
11 3853026 NUT, Main cap
12 3853010 PLUG, Oil gallery
13 3852793 CRANKSHAFT
14 3853268 RING SET, Standard
14 3853269 RING SET, 0.020 in. O.S.
15 3854232 PISTON ASSY., 0.020 in. O/S
15 3854233 PISTON, Standard, red
15 3854234 PISTON, Standard, blue
16 3852773 PIN, Piston, standard
17 3852774 BEARING, Rod, standard
17 3853079 BEARING, Rod, 0.001 in. U.S.
17 3853080 BEARING, Rod, 0.002 in. U.S.
17 3853081 BEARING, Rod, 0.010 in. U.S.
17 3853082 BEARING, Rod, 0.020 in. U.S.
17 3853083 BEARING, Rod, 0.030 in. U.S.
18 3850393 CONNECTING ROD
19 3852675 NUT, Connecting rod
20 3852674 BOLT, Connecting rod
21 3853770 CAMSHAFT
22 3852801 BEARING, Main, standard, upper
22 3853084 BRG., Main, 0.001 in. U.S., upper
22 3853085 BRG., Main, 0.002 in. U.S., upper
22 3853086 BRG., Main, 0.010 in. U.S., upper
22 3853087 BRG., Main, 0.020 in. U.S., upper
22 3853088 BRG., Main, 0.030 in. U.S., upper
23 3852802 BEARING, Main, standard, lower
23 3853089 BRG., Main, 0.001 in. U.S., lower
23 3853090 BRG., Main, 0.002 in. U.S., lower
23 3853092 BRG., Main, 0.020 in. U.S., lower
23 3853093 BRG., Main, 0.030 in. U.S., lower
23 3858950 Main Brg Kit .010 This part replaces 3853091.
24 3852803 BEARING, Main, center, standard
24 3853094 BRG., Main, center, 0.001 in. U.S.
24 3853095 BRG., Main, center, 0.002 in. U.S.
24 3853097 BRG., Main, center, 0.020 in. U.S.
24 3853098 BRG., Main, center, 0.030 in. U.S.
24 3858950 Main Brg Kit .010 This part replaces 3853096.
25 3852780 BEARING, Front, standard
25 3853018 BEARING, Front, 0.015 in. U.S.
26 3852781 BEARING, Center, standard
26 3853019 BEARING, Center, 0.015 in. U.S.
27 3852782 BEARING, Rear, standard
27 3853020 BEARING, Rear, 0.015 in. U.S.
28 3852783 BEARING, Front intermediate, std.
28 3853022 BEARING, Front intermediate, 0.015 in. U.S.
29 3852784 BEARING, Rear intermediate, std.
29 3853023 BEARING, Rear intermediate, 0.015 in. U.S.
30 3852788 BOLT, Oil pump to block
31 3852791 BOLT, Eccentric
32 3852794 SPROCKET, Crankshaft
33 3852796 KEY, Sprocket
34 3852790 WASHER, Camshaft sprocket
35 3852785 SPROCKET, Camshaft
36 3852786 DOWEL PIN
37 3852806 OIL SEAL, Rear
38 3853904 DAMPER, Crankshaft
39 3853021 BOLT, Damper
40 3853673 ECCENTRIC, Fuel pump, outer
41 3853789 ECCENTRIC, Fuel pump, inner
42 3853903 CHAIN, Timing
43 3852787 PLATE, Standard
43 3853024 PLATE, 0.002 in. O.S.
43 3853025 PLATE, 0.004 in. O.S.
44 3853893 COVER, Front
45 3852768 POINTER, Timing
46 3853035 INSERT, Oil filter
47 3853952 FLYWHEEL
48 3852804 RING GEAR, Flywheel
49 3853827 OIL SEAL, Front cover
50 3853078 CLAMP, Distributor
51 3853077 SCREW & WASHER, Clamp
52 3853273 LOCKNUT, Coupler
53 3853557 SCREW, Brace to alterntr bracket
54 3853862 COUPLING, Flywheel
55 3853274 STUD, Coupler
56 3853003 COVER, Flywheel
57 0502900 OIL FILTER This part replaces 0173231.
58 3852421 SCREW, Baffle
59 3854494 PETCOCK, Water drain
60 3854188 PULLEY, Crankshaft
61 3853800 OIL PRESSURE SENDER
62 3852767 GASKET, Front cover
63 3853011 BOLT, Front cover, 2 in.
63 3853012 BOLT, Cover to block, 1 3/4 in.
63 3853013 BOLT, Front cover, 2 1/4 in.
63 3853014 BOLT, Front cover, 2 1/2 in.
64 3853075 WASHER, Damper
66 3853640 FITTING, Oil switch & sender
67 3854181 SWITCH, Oil pressure
68 3854284 COVER, Fuel pump opening
69 3852600 GASKET, Fuel pump opening
