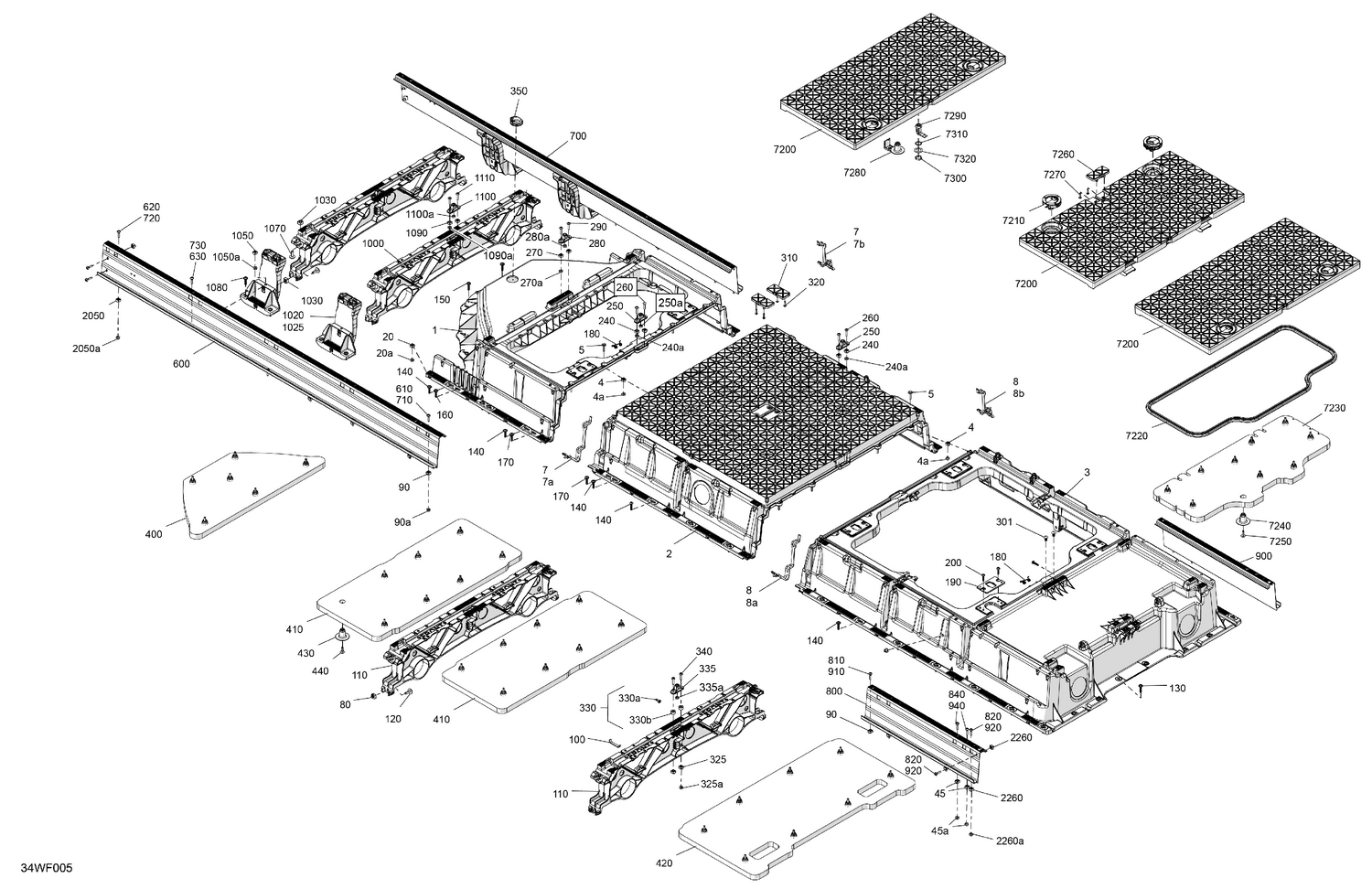

05- HULL - Frame
Parts (84)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 291006440 | Front Chassis |
| 2 | 291004648 | Central Chassis |
| 3 | 295101120 | Rear Frame Service Kit |
| 4a | 232561200 | Brass Elastic Stop Nut M6 |
| 5 | 250000969 | Hex Screw SEMS M6X35, SS |
| 7a | XXX | Not Available As Spare Parts |
| 7b | XXX | Not Available As Spare Parts |
| 8a | XXX | Not Available As Spare Parts |
| 8b | XXX | Not Available As Spare Parts |
| 20a | 232561200 | Brass Elastic Stop Nut M6 |
| 45a | 232561200 | Brass Elastic Stop Nut M6 |
| 80 | 269501943 | Elastic Nut Housing M8 |
| 90a | 232561200 | Brass Elastic Stop Nut M6 |
| 100 | 219704378 | Gasket 3000Mm Long |
| 110 | 291004980 | Crossmember |
| 120 | 250000888 | Hexagonal Screw M8 X 30 |
| 130 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 140 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 150 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 160 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 170 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 180 | 291005695 | Torsion Spring |
| 190 | 291006507 | Lock Plate |
| 200 | 250000879 | Plastite Torx Screw M6.81X30 |
| 240a | 232561200 | Brass Elastic Stop Nut M6 |
| 250a | 232081200 | Hex Nut M8 |
| 260 | 250001381 | Screw Torx Truss Head M6 X 30 |
| 270a | 232561200 | Brass Elastic Stop Nut M6 |
| 280a | 232081200 | Hex Nut M8 |
| 290 | 250001381 | Screw Torx Truss Head M6 X 30 |
| 301 | 293730010 | Black Dart |
| 310 | 291005630 | Double Tile Cap |
| 320 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 325a | 232561200 | Brass Elastic Stop Nut M6 |
| 330a | 250000775 | Screw-Socket Shoulder M8X8 |
| 330b | 295501160 | Roller Bushing Kit |
| 335a | 232081200 | Hex Nut M8 |
| 340 | 250001381 | Screw Torx Truss Head M6 X 30 |
| 350 | 293720092 | Cable Grommet |
| 400 | 291005476 | Front Chassis Acoustic Insulation |
| 410 | 291005477 | Central Chassis Acoustic Insulation |
| 420 | 291005478 | Rear Chassis Acoustic Insulation |
| 430 | 291005474 | Fastener |
| 440 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 600 | 291005225 | Side Member 205 CM |
| 610 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 620 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 630 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 700 | 291005226 | Side Member 205 CM |
| 710 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 720 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 730 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 800 | 291005223 | Side Member 68 CM |
| 810 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 820 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 840 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 900 | 291005224 | Side Member 68 CM |
| 910 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 920 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 940 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 1000 | 291004980 | Crossmember |
| 1020 | 291005384 | LH Cross Member Support |
| 1025 | 291006024 | RH Cross Member Support |
| 1030 | 269501943 | Elastic Nut Housing M8 |
| 1050a | 232561200 | Brass Elastic Stop Nut M6 |
| 1070 | 250000888 | Hexagonal Screw M8 X 30 |
| 1080 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 1090a | 232561200 | Brass Elastic Stop Nut M6 |
| 1100a | 232081200 | Hex Nut M8 |
| 1110 | 250001381 | Screw Torx Truss Head M6 X 30 |
| 2050a | 232561200 | Brass Elastic Stop Nut M6 |
| 2260a | 232561200 | Brass Elastic Stop Nut M6 |
| 7200 | 291004653 | Access Cover |
| 7210 | 291005473 | Latch Ass'y |
| 7220 | 293250624 | Weather Strip |
| 7230 | 291005475 | Acoustic Insulation Cover |
| 7240 | 291005474 | Fastener |
| 7250 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 7260 | 291005630 | Double Tile Cap |
| 7270 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 7280 | 291006233 | Acces Cover Cone |
| 7290 | 269801759 | Lock |
| 7300 | 269801760 | Lock Nut |
| 7310 | 269801761 | Gasket Lock |
