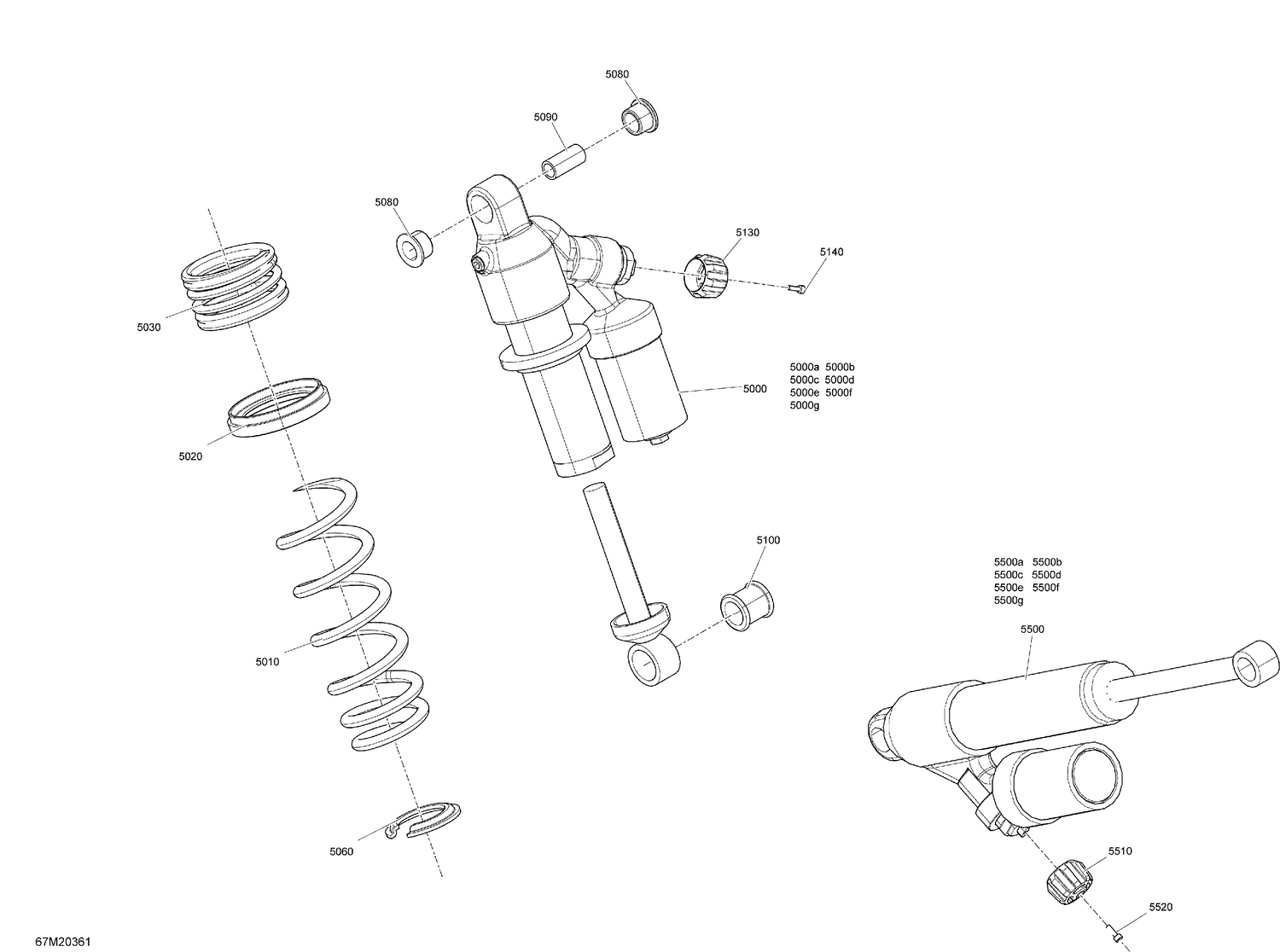

08- Suspension, Rear - Shocks - XRS
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 5000a | 415093807 | O-Ring |
| 5000b | 415093806 | Piston Ring |
| 5000c | 505070398 | Air Valve |
| 5000d | 505070399 | Screw |
| 5000e | 505070400 | O-Ring |
| 5000f | 415093804 | O-Ring |
| 5000g | 415130165 | Base Valve |
| 5010 | 503193065 | Black, Spring (162mm) Long |
| 5020 | 503192743 | Spring Spacer |
| 5030 | 503193479 | Black, Spring (52mm) Short |
| 5060 | 503194270 | Spring Stopper |
| 5080 | 503189117 | Urethane Bushing |
| 5090 | 503189282 | Bushing |
| 5100 | 503189271 | Bushing |
| 5130 | 503193033 | Shock Adjuster Knob |
| 5140 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 5500a | 415093807 | O-Ring |
| 5500b | 415093806 | Piston Ring |
| 5500c | 505070398 | Air Valve |
| 5500d | 505070399 | Screw |
| 5500e | 505070400 | O-Ring |
| 5500f | 415093804 | O-Ring |
| 5500g | 415130165 | Base Valve |
| 5510 | 503193033 | Shock Adjuster Knob |
