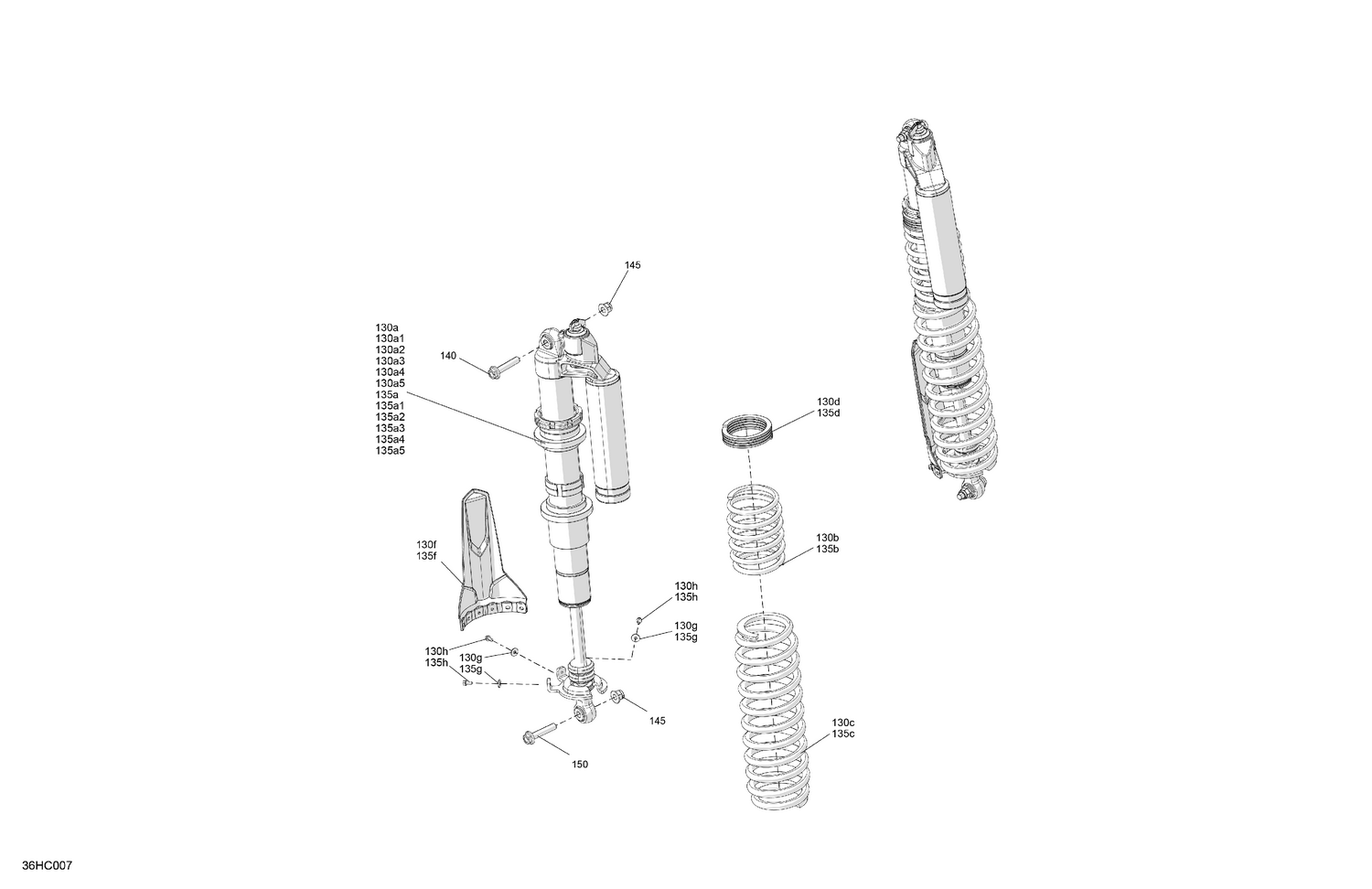

05- Suspension - Rear Shocks - 64in
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 130a1 | 715900337 | Spherical Bearing |
| 130a2 | 706004078 | Ball Joint |
| 130a3 | 715900338 | O-Ring Bushing |
| 130a4 | 715900480 | Circlip |
| 130a5 | 715900481 | Reducer |
| 130b | 706005119 | Magma Red, Compression Spring |
| 130c | 706005147 | Magma Red, Compression Spring |
| 130d | 706005115 | Magma Red, Compression Spring |
| 130f | 706202215 | Protector |
| 130g | 250200025 | Washer M5 |
| 130h | 210251150 | Hex Flange Screw M5 X 11 |
| 135a1 | 715900337 | Spherical Bearing |
| 135a2 | 706004078 | Ball Joint |
| 135a3 | 715900338 | O-Ring Bushing |
| 135a4 | 715900480 | Circlip |
| 135a5 | 715900481 | Reducer |
| 135b | 706005119 | Magma Red, Compression Spring |
| 135c | 706005147 | Magma Red, Compression Spring |
| 135d | 706005115 | Magma Red, Compression Spring |
| 135f | 706202215 | Protector |
| 135g | 250200025 | Washer M5 |
| 135h | 210251150 | Hex Flange Screw M5 X 11 |
| 140 | 250000857 | Flange Screw M12 X 60 |
| 145 | 250001195 | Elastic Flange Nut M12 |
