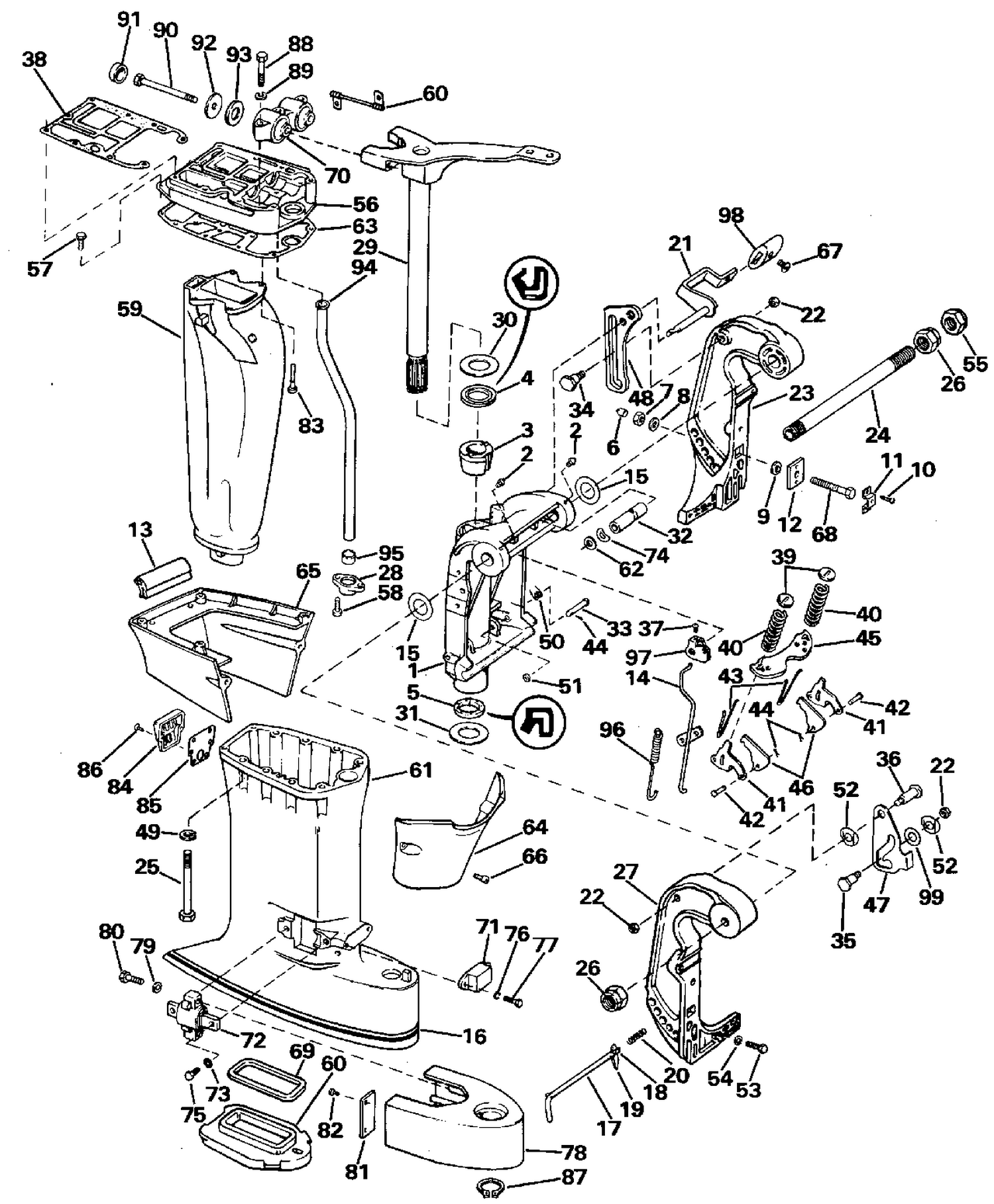

| Ref | Part Number | Description |
|---|
| 1 |
0326195 |
SWIVEL BRACKET, Long |
| 3 |
0313880 |
BUSHING, Lower |
| 4 |
0317776 |
SEAL |
| 5 |
0318298 |
SEAL, Lower |
| 6 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 7 |
0363254 |
NUT, Stern bracket screw This part replaces 0321861. |
| 8 |
0320248 |
RONDELLE, écrou |
| 9 |
0307238 |
RONDELLE |
| 10 |
0319886 |
SCREW |
| 11 |
0318273 |
Bolt hex retainer 1/2 in. |
| 12 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 13 |
SEAL, |
Exhaust housing |
| 14 |
0387531 |
ROD & BRACKET |
| 15 |
0317782 |
THRUST WASHER |
| 16 |
0210666 |
DECAL, Evinrude only |
| 17 |
0436212 |
THRUST ROD ASSEMBLY This part replaces 0385787. |
| 18 |
0315013 |
RIVELT,Thrust rod |
| 19 |
0318386 |
RETAINER |
| 20 |
0307068 |
SPRING & Thrust rod |
| 21 |
0391415 |
LEVER & SHAFT |
| 23 |
0319932 |
STERN BRACKET, Port |
| 24 |
0351896 |
TILT TUBE This part replaces 0321511. |
| 25 |
0133022 |
SCREW |
| 26 |
0323599 |
LOCKNUT This part replaces 0316828. |
| 27 |
0319933 |
STERN BRACKET, Starboard |
| 28 |
0315860 |
COVER WATER TUBE |
| 29 |
0390535 |
ARM & SHAFT ASSY., Long |
| 30 |
0318295 |
THRUST WASHER, Upper |
| 31 |
0318296 |
THRUST WASHER, Lower |
| 32 |
0318168 |
BUSHING |
| 33 |
0315961 |
PIN, Link to bracett |
| 34 |
0318167 |
SCREW, Stop link |
| 35 |
0313849 |
SCREW, Stop lin to stern brkt. |
| 36 |
0313848 |
SCREW, Stop link |
| 37 |
0319108 |
SCREW BELCRANK |
| 39 |
0314007 |
CUP, Reverse lock spring |
| 40 |
0313817 |
RESSORT, verrouillage de marche arrière |
| 41 |
0315964 |
LINK, Reverse lock |
| 42 |
0315962 |
GOUPILLE, tringlerie vers levier |
| 43 |
0315965 |
DISPOSITIF DE RETENUE, ressort |
| 44 |
0302858 |
GOUPILLE, fendue - Tringlerie de verrouillage de marche arrière |
| 45 |
0321234 |
PLAQUE, verrouillage de marche arrière |
| 46 |
0333871 |
LEVER, Locking This part replaces 0332185. |
| 47 |
0332199 |
STOP LINK, Starboard |
| 48 |
0397210 |
STOP LINK & PIN ASSY., Port |
| 50 |
0315967 |
SPIRNG, Link |
| 51 |
0552499 |
WASHER, Link pin |
| 53 |
0552940 |
SCREW, Stern bracket |
| 55 |
0322376 |
NUT, Wiper, tilt tube |
| 56 |
0334369 |
ADAPTER, Exh. hsg. |
| 57 |
0309705 |
SCREW |
| 59 |
0336259 |
EXH. HOUSING, Inner This part replaces 0333308. |
| 60 |
0582494 |
GROUND STRAP This part replaces 0387043. |
| 61 |
0351067 |
EXH. HOUSING, Outer This part replaces 0327896. |
| 62 |
0318169 |
WASHER, Lever & shaft |
| 63 |
0351019 |
GASKET, Adapter to housing This part replaces 0328283. |
| 64 |
0323612 |
COVER, Exh. hsg. front |
| 64 |
0350796 |
COVER, Exhaust housing, front This part replaces 0332172. |
| 65 |
0340785 |
COVER, Exh. hsg., rear This part replaces 0315446. |
| 67 |
0318238 |
SCREW |
| 68 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) |
| 68 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 68 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 69 |
0315956 |
SEAL, Lower to outer housing |
| 70 |
0436470 |
MOUNT, Upper This part replaces 0388234. |
| 71 |
0383961 |
MOUNT, Thrust |
| 72 |
0388411 |
RUBBER MOUNT, Lower |
| 74 |
0318170 |
GUARD |
| 75 |
0552940 |
SCREW, Stern bracket |
| 77 |
0329894 |
SCREW |
| 78 |
0322074 |
MOUNT BRACKET |
| 80 |
0316109 |
VIS, levier vers support |
| 81 |
0316055 |
COVER, Mount bracket |
| 82 |
0316233 |
SCREW, Cover to bracket |
| 83 |
0326469 |
SCREW, Anode |
| 84 |
0315864 |
COVER, Exhaust relief |
| 85 |
0329826 |
COVER, Relief cover |
| 86 |
0305143 |
SCREW, By-pass cover |
| 87 |
0318307 |
CLAMP,Cable casing guide |
| 88 |
0306423 |
BOLT |
| 90 |
0317648 |
SCREW, Upper mount |
| 91 |
0313581 |
BUMBER, Mount screw |
| 92 |
0321232 |
RETAINER WASHER |
| 93 |
0313580 |
WASHER |
| 94 |
0340216 |
WATER TUBE This part replaces 0327898. |
| 95 |
0332363 |
GROMMET, Tube to adapter |
| 96 |
0321426 |
SPRING, Reverse lock |
| 97 |
0319904 |
BELLCRANK |
| 98 |
0329012 |
KNOB Tilt & reverse lock handle |
| 0172912 |
0172912 |
PLATE ASSY |
