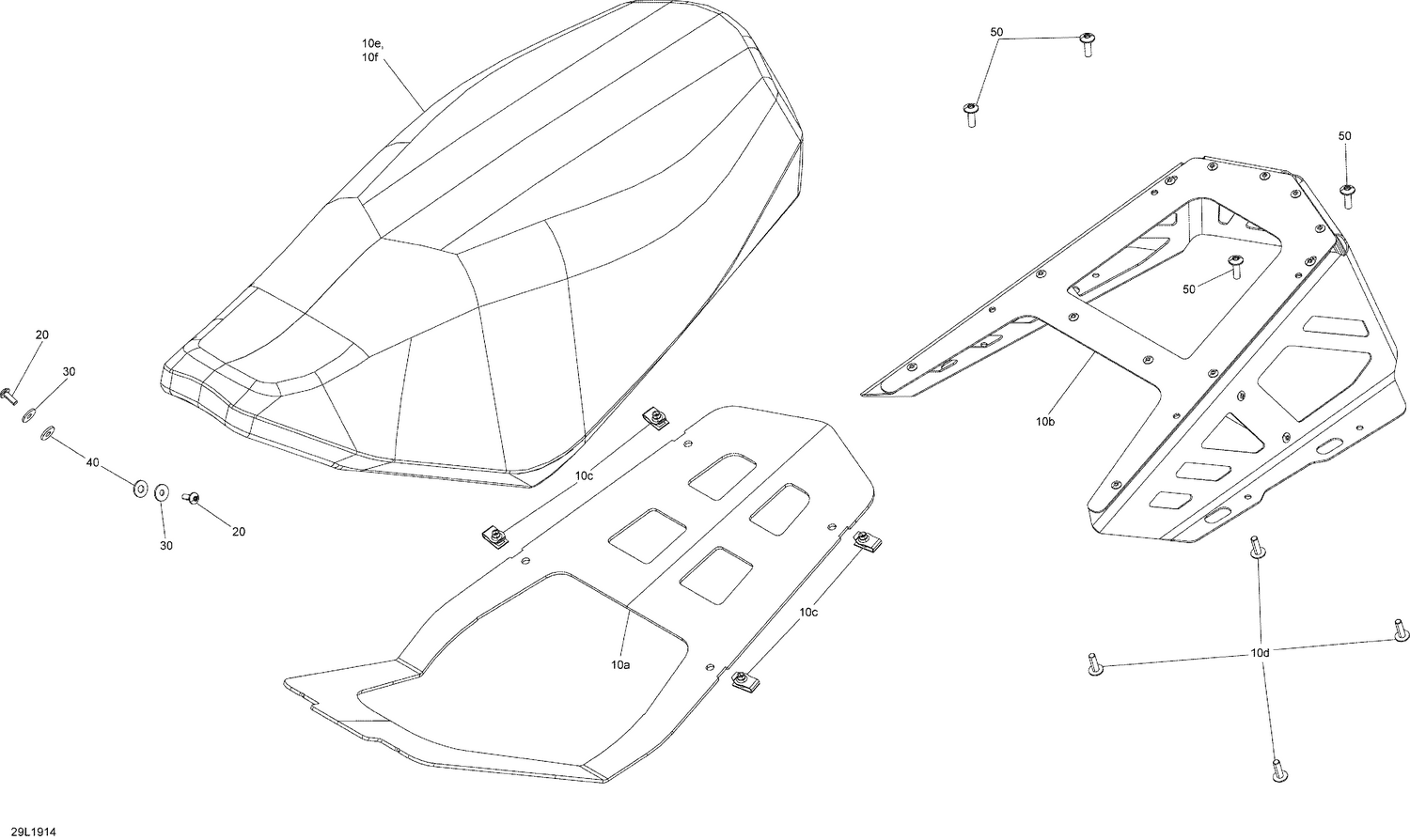

09- Seat Rave - 600 Racing
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510006295 | Seat Base |
| 10b | 510006423 | Seat Base |
| 10c | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 10d | 250000722 | Torx Screw M6 X 20 |
| 10e | 510006296 | Foam-Seat |
| 10f | 510006540 | Seat Cover |
| 20 | 250000742 | Torx Screw M5 X 14 |
| 30 | 250200140 | Washer |
| 40 | 250200024 | Rubber Washer 5 mm |
