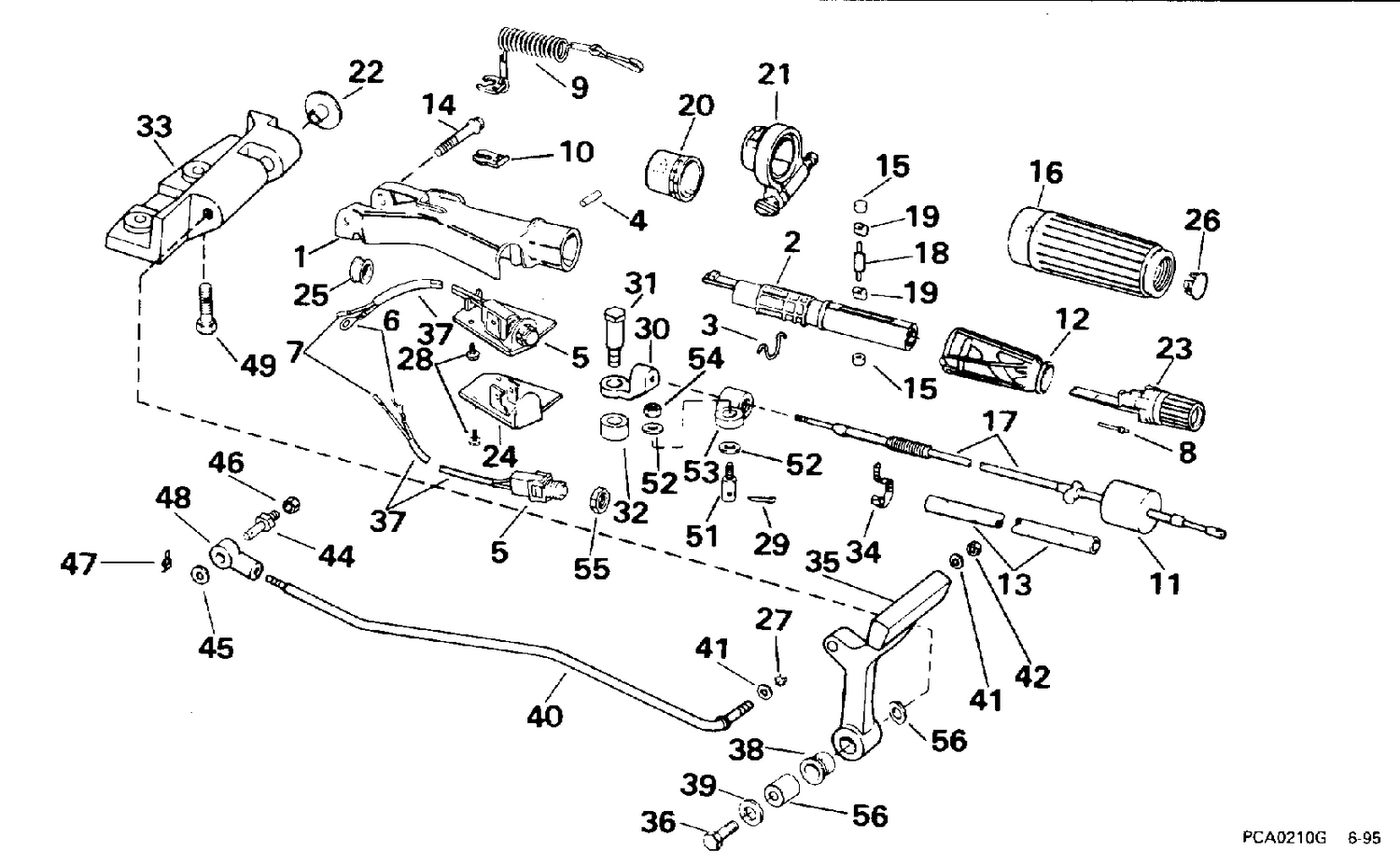

| Ref | Part Number | Description |
|---|
| 1 |
0434094 |
BARRE |
| 5 |
0585024 |
IDLE STOP SWITCH ASSY. |
| 5 |
0585133 |
INTERRUPTEUR D'ARRÊT |
| 13 |
0335619 |
SLEEVE, Throttle cable |
| 14 |
0324602 |
VIS, barre |
| 17 |
0398243 |
THROTTLE CABLE ASSY |
| 22 |
0335426 |
BUSHING, Handle to bracket |
| 25 |
0316132 |
GORMMET, Valve |
| 30 |
0325715 |
CONNECTOR, Throttle cable |
| 31 |
0335329 |
SCREW, Connector |
| 32 |
0335328 |
SCREW, Connector |
| 33 |
5000759 |
BRACKET, Shift & steering This part replaces 0335380. |
| 34 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 35 |
0341384 |
LEVER, Shift |
| 36 |
0316109 |
VIS, levier vers support |
| 37 |
0512918 |
SLEEVE |
| 39 |
0309543 |
RONDELLE |
| 40 |
0335283 |
SHIFT ROD |
| 41 |
0329241 |
RONDELLE |
| 44 |
0339272 |
PIN |
| 45 |
0124627 |
WASHER |
| 48 |
0339271 |
CONNECTOR |
| 49 |
0328333 |
SCREW |
| 51 |
0344597 |
SCREW, Connector This part replaces 0335327. |
| 53 |
0324685 |
CONNECTOR, Cable to control shaft |
