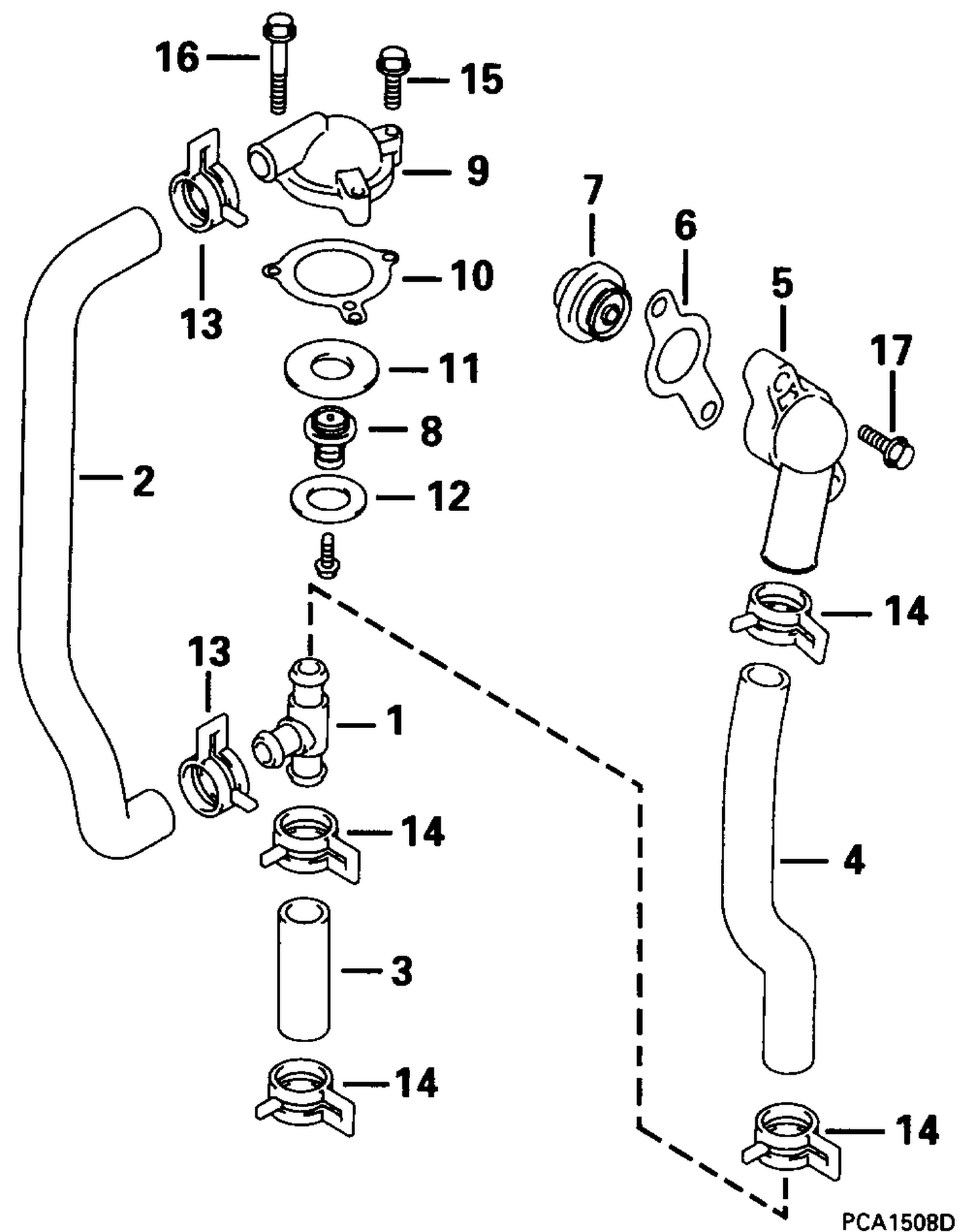

THERMOSTAT
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5030616 | TEE |
| 2 | 5030617 | HOSE, Tee to thermostat cover |
| 3 | 5030618 | HOSE, Tee, water pipe |
| 4 | 5030619 | HOSE, Tee to pressure valve cover |
| 5 | 5030733 | COVER, Pressure valve |
| 6 | 5030736 | GASKET, Pressure valve cover |
| 7 | 5032471 | VALVE, WATER PRESS This part replaces 5030740. |
| 8 | 5030742 | THERMOSTAT |
| 9 | 5030743 | COVER, Thermostat |
| 10 | 5030745 | GASKET, Thermostat cover |
| 11 | 5030746 | STOP, Thermostat upper |
| 12 | 5030747 | STOP, Thermostat lower |
| 13 | 5030581 | CLAMP |
| 14 | 5030582 | CLAMP |
| 16 | 5030991 | BOLT |
