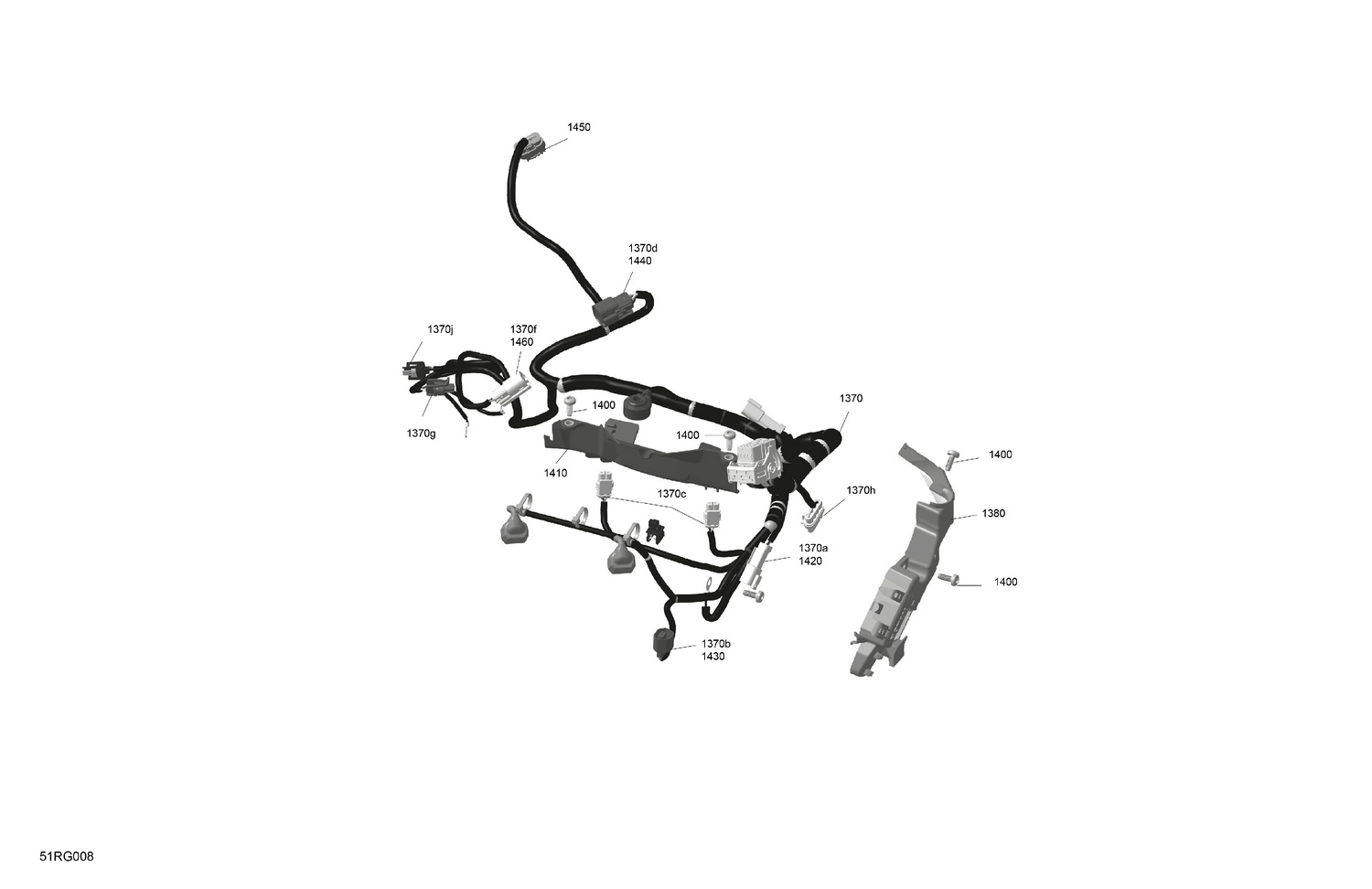

01- ROTAX - Engine Harness And Electronic Module
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1370a | 409206900 | Male Housing, 2 Circuits |
| 1370b | 415130195 | Connector |
| 1370c | 409209500 | Female Housing, 2 Circuits |
| 1370d | 515178202 | Connector Coil |
| 1370f | 710005827 | Connector 2 Pins with CPA |
| 1370g | 278001113 | Male Connector, 2 Circuits |
| 1370h | 409209700 | Female Housing, 4 Circuits |
| 1370j | 515176890 | Female Terminal Housing |
| 1380 | 420260168 | Harness Support |
| 1400 | 420640325 | Torx Screw M6 X 16 |
| 1410 | 420260159 | Harness Support |
| 1420 | 409206900 | Male Housing, 2 Circuits |
| 1430 | 415130195 | Connector |
| 1440 | 515178202 | Connector Coil |
| 1450 | 710007787 | Female Connector 3 Circuits |
